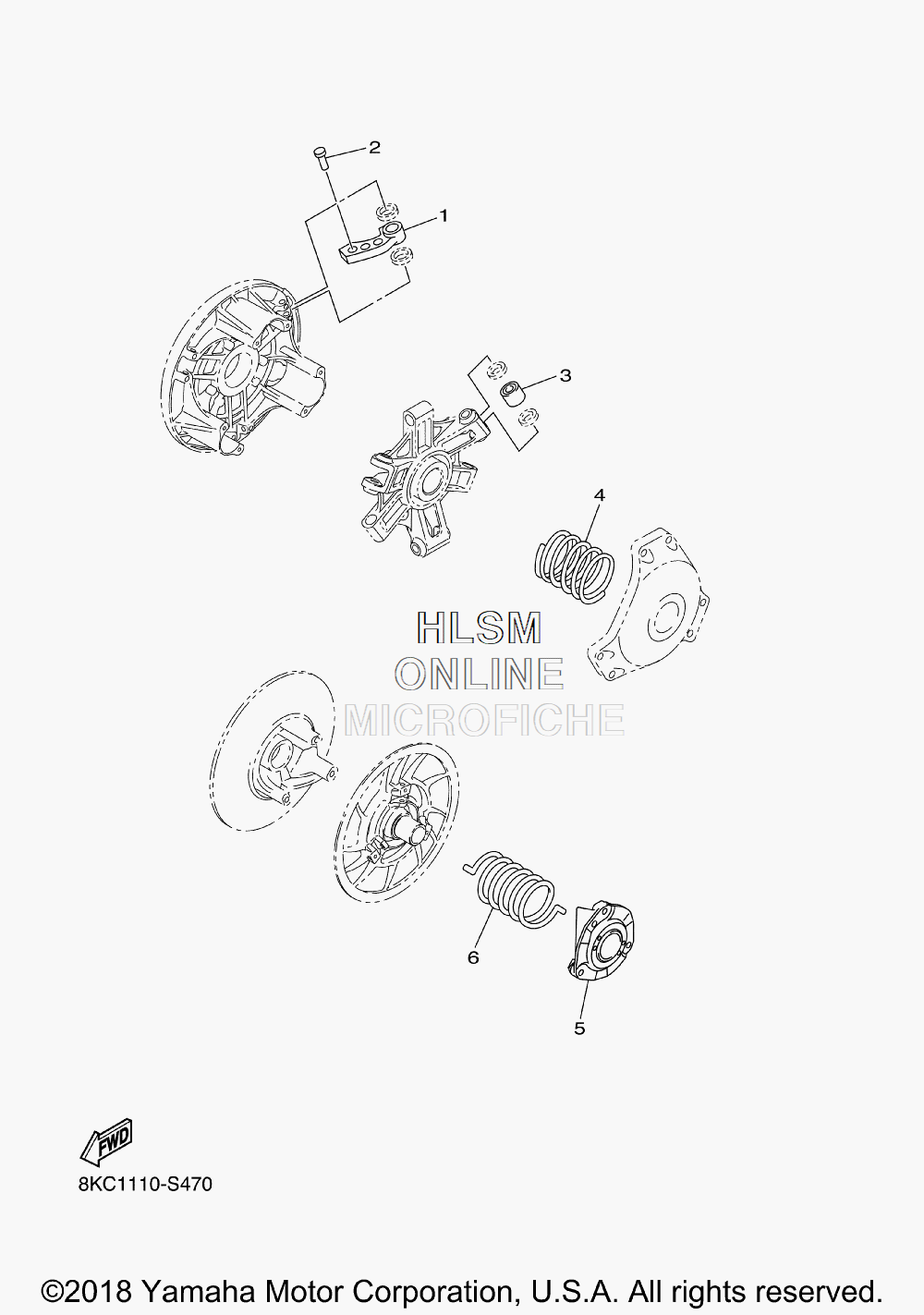

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha SIDEWINDER M TX LE 153 - 2018 года выпуска

№

Артикул

Название
1

8LR-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8KC-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
2

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM)

RIVET, COUNTERSUNK (ST10.3MM)
2

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM)

RIVET, COUNTERSUNK (AL10.3MM)
2

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM)

RIVET, COUNTERSUNK (ST13.3MM)
2

90266-06001-00 RIVET (AL13.3)

RIVET (AL13.3)
2

90266-06002-00 RIVET (ST13.3)

RIVET (ST13.3)
2

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM)

RIVET, COUNTERSUNK (ST13.9MM)
2

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM)

RIVET, COUNTERSUNK (ST17.2MM)
2

90269-06006-00 RIVET (ST17.2MM)

RIVET (ST17.2MM)
3

8FG-17624-40-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-30-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-20-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-00-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-10-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
4

90501-602L3-00 SPRING, COMPRESSION (P-SL-P)

SPRING, COMPRESSION (P-SL-P)
4

90501-601L8-00 SPRING, COMPRESSION (OR-P-OR)

SPRING, COMPRESSION (OR-P-OR)
4

90501-601L7-00 SPRING, COMPRESSION (P-P-P)

SPRING, COMPRESSION (P-P-P)
4

90501-583L5-00 SPRING, COMPRESSION (WH-P-WH)

SPRING, COMPRESSION (WH-P-WH)
4

90501-583L4-00 SPRING, COMPRESSION (WH-SL-WH)

SPRING, COMPRESSION (WH-SL-WH)
4

90501-583L1-00 SPRING, COMPRESSION (WH-WH-WH)

SPRING, COMPRESSION (WH-WH-WH)
4

90501-583L0-00 SPRING, COMPRESSION (BL-WH-BL)

SPRING, COMPRESSION (BL-WH-BL)
4

90501-582L7-00 SPRING, COMPRESSION (Y-GR-Y)

SPRING, COMPRESSION (Y-GR-Y)
4

90501-582L6-00 SPRING, COMPRESSION (WH-GR-WH)

SPRING, COMPRESSION (WH-GR-WH)
4

90501-582L2-00 SPRING, COMPRESSION (GR-SL-GR)

SPRING, COMPRESSION (GR-SL-GR)
4

90501-582L1-00 SPRING, COMPRESSION (Y-SL-Y)

SPRING, COMPRESSION (Y-SL-Y)
4

90501-581L6-00 SPRING, COMPRESSION (GR-P-GR)

SPRING, COMPRESSION (GR-P-GR)
4

90501-581L5-00 SPRING, COMPRESSION (Y-P-Y)

SPRING, COMPRESSION (Y-P-Y)
4

90501-552L5-00 SPRING, COMPRESSION (BL-GR-BL)

SPRING, COMPRESSION (BL-GR-BL)
4

90501-551L3-00 SPRING, COMPRESSION (BL-P-BL)

SPRING, COMPRESSION (BL-P-BL)
4

90501-602L8-00 SPRING, COMPRESSION (GR-GR-GR)

SPRING, COMPRESSION (GR-GR-GR)
4

90501-510A0-00 SPRING, COMPRESSION (SL-OR-SL)

SPRING, COMPRESSION (SL-OR-SL)
4

90501-550A7-00 SPRING, COMPRESSION (GO-R-GO)

SPRING, COMPRESSION (GO-R-GO)
4

90501-570A0-00 SPRING, COMPRESSION (BL-SL-BL)

SPRING, COMPRESSION (BL-SL-BL)
4

90501-580A2-00 SPRING, COMPRESSION (BL-BR-BL)

SPRING, COMPRESSION (BL-BR-BL)
4

90501-600A5-00 SPRING, COMPRESSION (OR-Y-OR)

SPRING, COMPRESSION (OR-Y-OR)
4

90501-600A4-00 SPRING, COMPRESSION (P-Y-P)

SPRING, COMPRESSION (P-Y-P)
4

90501-580A4-00 SPRING, COMPRESSION (GR-Y-GR)

SPRING, COMPRESSION (GR-Y-GR)
4

90501-580A3-00 SPRING, COMPRESSION (Y-Y-Y)

SPRING, COMPRESSION (Y-Y-Y)
4

90501-550A6-00 SPRING, COMPRESSION (WH-Y-WH)

SPRING, COMPRESSION (WH-Y-WH)
4

90501-550A5-00 SPRING, COMPRESSION (BL-Y-BL)

SPRING, COMPRESSION (BL-Y-BL)
4

90501-550A3-00 SPRING, COMPRESSION (WH-BL-WH)

SPRING, COMPRESSION (WH-BL-WH)
4

90501-602L9-00 SPRING, COMPRESSION (P-GR-P)

SPRING, COMPRESSION (P-GR-P)
4

90501-603L2-00 SPRING, COMPRESSION (Y-WH-Y)

SPRING, COMPRESSION (Y-WH-Y)
4

90501-603L3-00 SPRING, COMPRESSION (GR-WH-GR)

SPRING, COMPRESSION (GR-WH-GR)
4

90501-624L8-00 SPRING, COMPRESSION (OR-SL-OR)

SPRING, COMPRESSION (OR-SL-OR)
4

90501-550A2-00 SPRING, COMPRESSION (BL-BL-BL)

SPRING, COMPRESSION (BL-BL-BL)
4

90501-580A1-00 SPRING, COMPRESSION (Y-BL-Y)

SPRING, COMPRESSION (Y-BL-Y)
4

90501-600A1-00 SPRING, COMPRESSION (P-BL-P)

SPRING, COMPRESSION (P-BL-P)
5

8KC-17604-90-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8KC-17604-50-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8KC-17604-70-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
6

90508-60007-00 SPRING, TORSION (WHITE)

SPRING, TORSION (WHITE)
6

90508-60012-00 SPRING, TORSION (PINK)

SPRING, TORSION (PINK)
6

90508-500B1-00 SPRING, TORSION (BROWN)

SPRING, TORSION (BROWN)
6

90508-556A2-00 SPRING, TORSION (GREEN)

SPRING, TORSION (GREEN)
6

90508-536A9-00 SPRING, TORSION (RED)

SPRING, TORSION (RED)
6

90508-60020-00 SPRING, TORSION (YELLOW)

SPRING, TORSION (YELLOW)
6

90508-60016-00 SPRING, TORSION (WH-WH)

SPRING, TORSION (WH-WH)
6

90508-556A7-00 SPRING, TORSION (SILVER)

SPRING, TORSION (SILVER)
6

90508-60018-00 SPRING, TORSION (P-P)

SPRING, TORSION (P-P)
