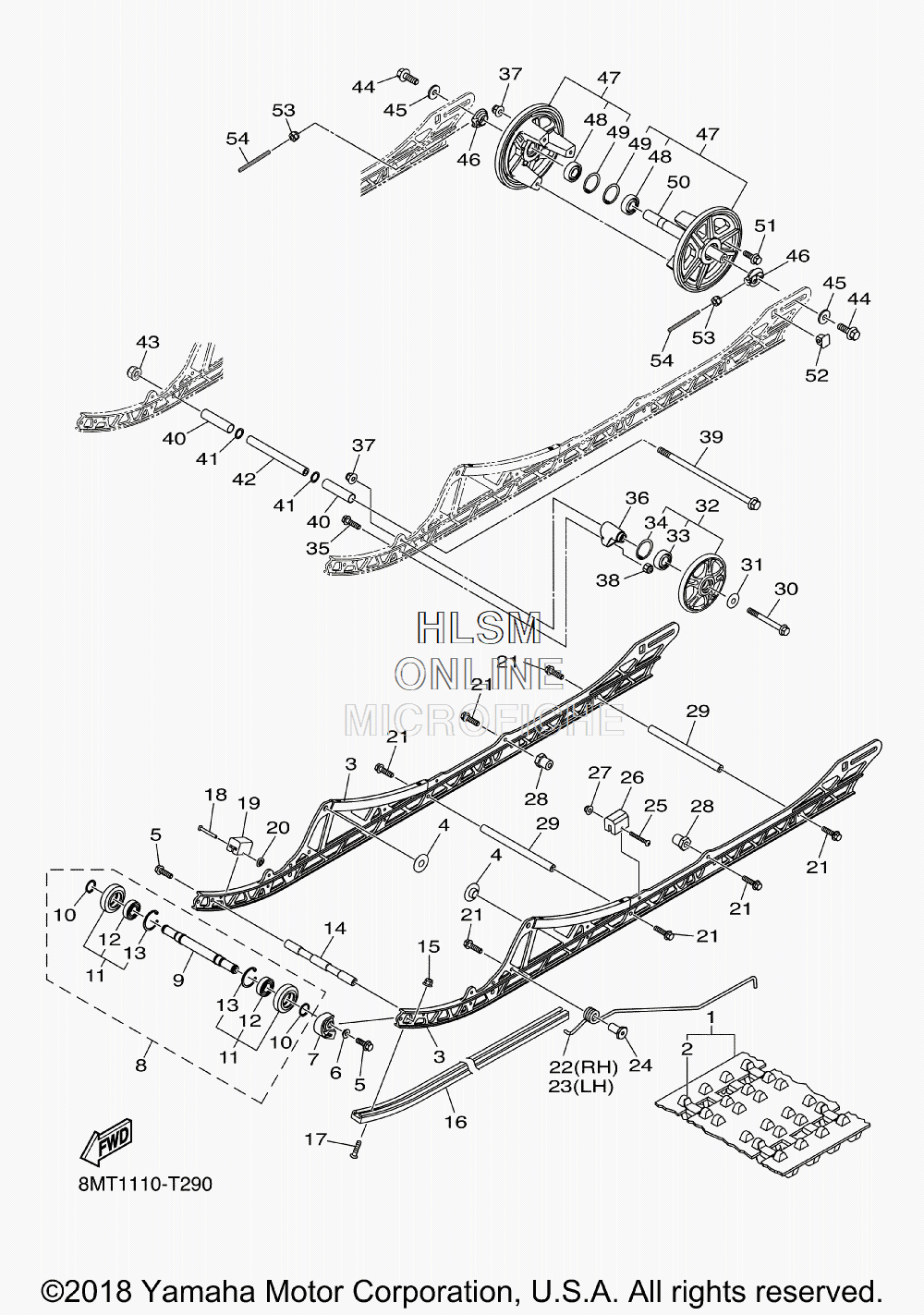

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SIDEWINDER M TX 153 - 2018 года выпуска`
-
№АртикулНазвание
-
18KG-G7110-30-00 TRACK ASSYTRACK ASSY
-
28JR-G7113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38KG-G741A-80-00 FRAME, SLIDINGFRAME, SLIDING
-
48JP-RA725-00-00 COLLAR, 13COLLAR, 13
-
58JP-RA189-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
68JP-RA472-00-00 WASHER , ENDWASHER , END
-
78JR-G7422-20-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
88JR-G7320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
98JR-G7485-10-00 ...SHAFT 3...SHAFT 3
-
108JP-RA473-00-00 ...WASHER , RING...WASHER , RING
-
118JR-G7310-10-00 ...SUSPENSION WHEEL ASSY...SUSPENSION WHEEL ASSY
-
128JM-RAY03-00-00 ......BEARING, 2......BEARING, 2
-
138JM-RAH01-00-00 ......CIRCLIP, 2......CIRCLIP, 2
-
148JR-G7485-00-00 SHAFT 3SHAFT 3
-
158JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
168KG-G7421-10-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
178JM-RA206-00-00 SCREW, 1/4-20X1.125SCREW, 1/4-20X1.125
-
188JM-RAY02-00-00 PIN, 2PIN, 2
-
198JM-G7456-00-00 DAMPER 1DAMPER 1
-
208JP-RA346-00-00 .NUT, 0.125.NUT, 0.125
-
218JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
228KG-G381D-10-00 SCRAPERSCRAPER
-
238KG-G381D-00-00 SCRAPERSCRAPER
-
248KG-G7371-00-00 BUSH, PIVOTBUSH, PIVOT
-
258JP-RA249-00-00 SCREW, M5X0.8X40SCREW, M5X0.8X40
-
268JP-G7457-00-00 DAMPER 2DAMPER 2
-
278JP-RA363-00-00 NUT, FLANGE LOCKING M5X0.8NUT, FLANGE LOCKING M5X0.8
-
288JR-G7368-00-00 NUTNUT
-
298JR-G7337-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
308JP-RA1B5-00-00 BOLT, FLANGE 1BOLT, FLANGE 1
-
318JP-RA466-00-00 WASHER, 9WASHER, 9
-
328JR-G7310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
338JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
348JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
358JP-RA1B6-00-00 BOLT, FLANGE 2BOLT, FLANGE 2
-
368JP-G7419-10-00 BRACKET 7BRACKET 7
-
378JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
388JP-RA379-00-00 NUT, LOCK 1NUT, LOCK 1
-
398JP-RA194-10-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
408JP-RA723-00-00 COLLAR, 11COLLAR, 11
-
418JP-RA437-00-00 WASHER, 0.890X1.19X0.060WASHER, 0.890X1.19X0.060
-
428JP-RA729-00-00 COLLAR, 22.2COLLAR, 22.2
-
438JP-RA378-01-00 NUT, LOCKNUT, LOCK
-
448JP-RA198-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
458JP-RA453-00-00 WASHER, M10X29WASHER, M10X29
-
468JP-G7534-00-00 WHEEL, GUIDE 1WHEEL, GUIDE 1
-
478JR-G7550-01-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
488JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
498JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
508JP-G7521-00-00 AXLE, REARAXLE, REAR
-
518JP-RA181-00-00 BOLT, FLANGE M6X1.0X20BOLT, FLANGE M6X1.0X20
-
528JP-G7463-00-00 BRACKET 5BRACKET 5
-
538JP-RA372-00-00 NUT, HEX LOCKING M8X1.25NUT, HEX LOCKING M8X1.25
-
548JP-RA194-30-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
