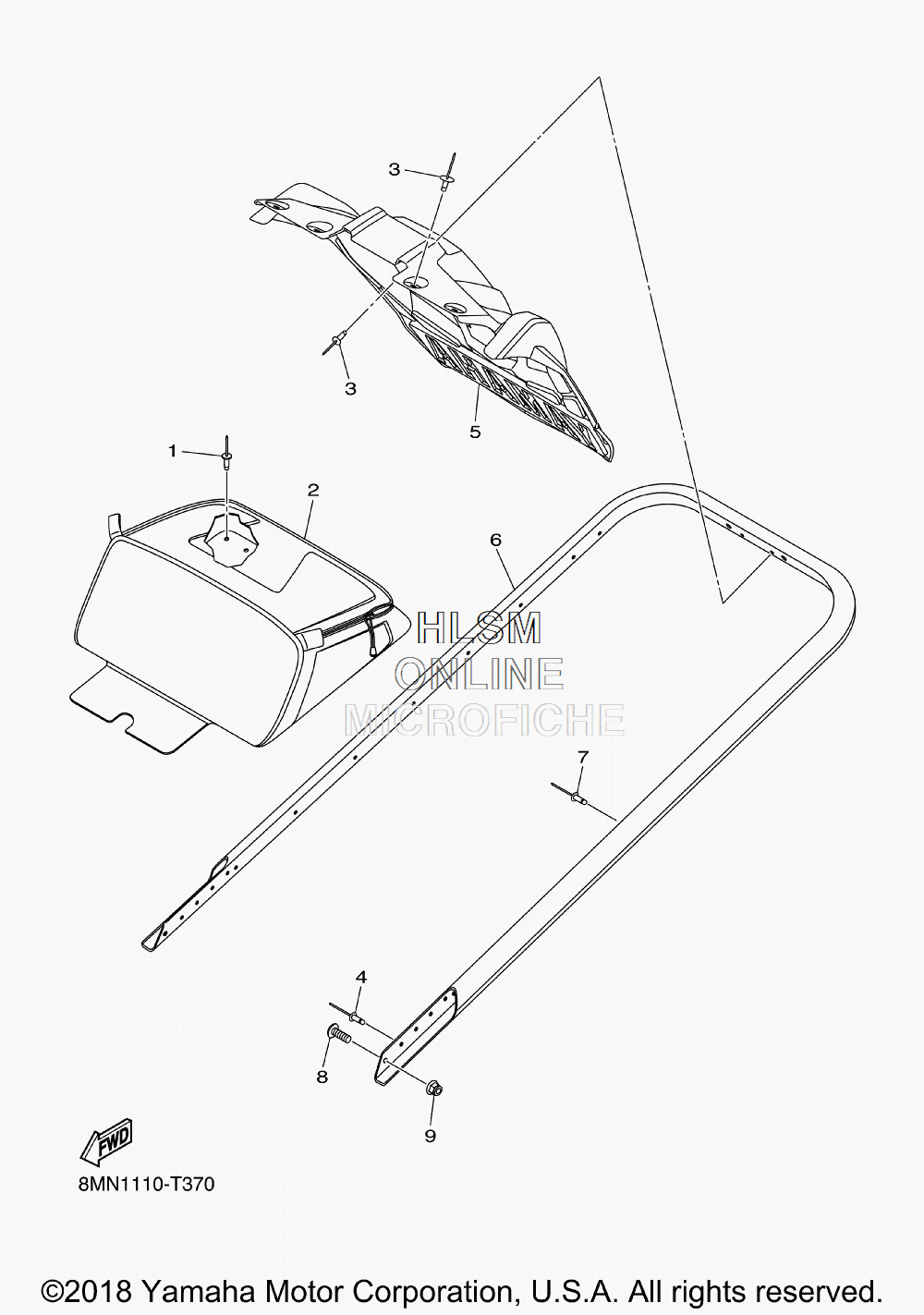

BUMPER - FRONT AND REAR для Yamaha SIDEWINDER M TX 153 - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-RA520-20-00 RIVET, 11RIVET, 11
-
28KC-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
38JP-RA524-00-00 RIVET, 15RIVET, 15
-
48JP-RA532-00-00 RIVET, 20RIVET, 20
-
58JP-K7595-00-00 FLAPFLAP
-
68KG-K7541-30-00 BUMPER, REAR 1BUMPER, REAR 1
-
78JP-RA520-00-00 RIVET, 11RIVET, 11
-
88JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
98JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
