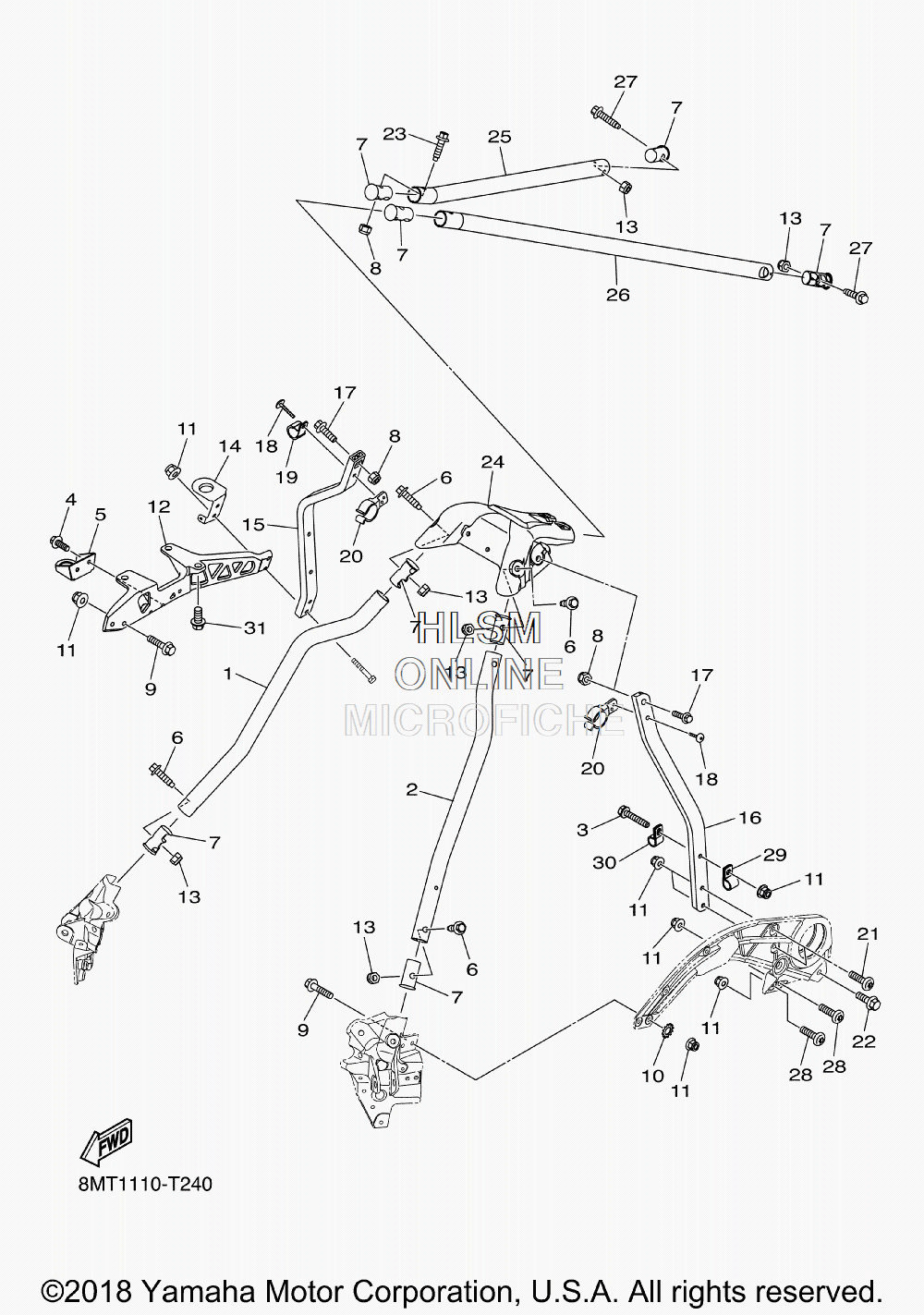

HANDLEBAR PAD W/ STEERING GATE для Yamaha SIDEWINDER L TX SE - 2018 года выпуска`
-
№АртикулНазвание
-
18KC-F1197-00-00 CROSS TUBE, 2CROSS TUBE, 2
-
28KC-F1196-00-00 CROSS TUBE, 1CROSS TUBE, 1
-
38KC-RA153-00-00 BOLT, FLANGE M6X25BOLT, FLANGE M6X25
-
48KC-RA146-00-00 BOLT, FLANGE M6X16BOLT, FLANGE M6X16
-
58KC-F194X-00-00 BRACKET 1BRACKET 1
-
68JP-RA297-00-00 SCREW, 8SCREW, 8
-
78JP-F111A-10-00 CAP, MAIN PIPECAP, MAIN PIPE
-
88JP-RA372-00-00 NUT, HEX LOCKING M8X1.25NUT, HEX LOCKING M8X1.25
-
98JP-RA182-00-00 BOLT, FLANGE M6X1.0X25BOLT, FLANGE M6X1.0X25
-
108JM-RA407-00-00 WASHER, TOOTHED LOCK 1/4WASHER, TOOTHED LOCK 1/4
-
118JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
128KC-F1932-00-00 REINF FRAME FRONT 4REINF FRAME FRONT 4
-
138JP-RA371-00-00 NUT, HEX LOCKING M10X1.25NUT, HEX LOCKING M10X1.25
-
148MT-F112K-00-00 BRACKET 5BRACKET 5
-
158KC-F111J-00-00 MEMBER, SIDE 1MEMBER, SIDE 1
-
168JP-F111K-00-00 MEMBER, SIDE 2MEMBER, SIDE 2
-
178JP-RA185-00-00 BOLT, FLANGE M8X1.25X20BOLT, FLANGE M8X1.25X20
-
188KC-RA288-00-00 SCREW, 10-12X1.00SCREW, 10-12X1.00
-
198JP-F4566-10-00 BRACKET, FILTERBRACKET, FILTER
-
208JP-F11C2-00-00 CLIPCLIP
-
218KC-RA235-00-00 SCREW, 1SCREW, 1
-
228JM-RA102-00-00 BOLT, FLANGEBOLT, FLANGE
-
238JP-RA187-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
248KC-F3871-00-00 GATE, STEERINGGATE, STEERING
-
258KC-F119E-00-00 PIPE, CROSS, 7PIPE, CROSS, 7
-
268KC-F119F-00-00 PIPE CROSS 8PIPE CROSS 8
-
278JP-RA197-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
288KG-RA229-00-00 SCREWSCREW
-
298MT-RAB01-00-00 CLAMP, 2CLAMP, 2
-
308JP-RAB23-10-00 CLAMP, 21CLAMP, 21
-
318KC-RA236-00-00 SCREW, 2SCREW, 2
