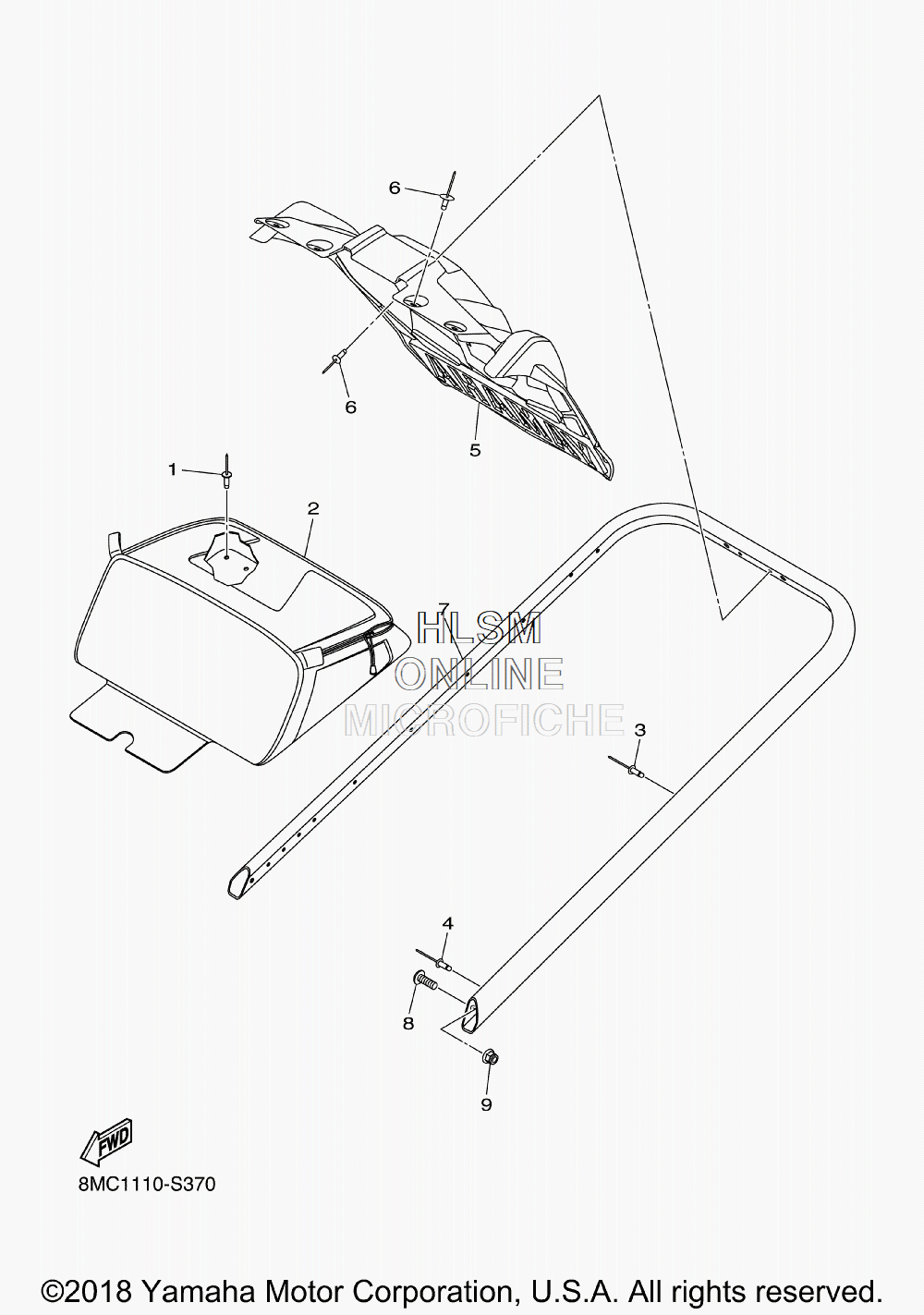

BUMPER - FRONT AND REAR для Yamaha SIDEWINDER L TX SE - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-RA520-20-00 RIVET, 11RIVET, 11
-
28KC-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
38JP-RA520-00-00 RIVET, 11RIVET, 11
-
48JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
-
58JP-K7595-00-00 FLAPFLAP
-
68JP-RA524-00-00 RIVET, 15RIVET, 15
-
78JR-K7541-80-00 BUMPER, REAR 1BUMPER, REAR 1
-
88JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
98JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- • BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS (DPBSE - PURPLISH BLUE)
- DECALS (MDGR - MEDIUM GREY)
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- TURBO CHARGER
- VALVE ASSY
- WATER PUMP ASSY
