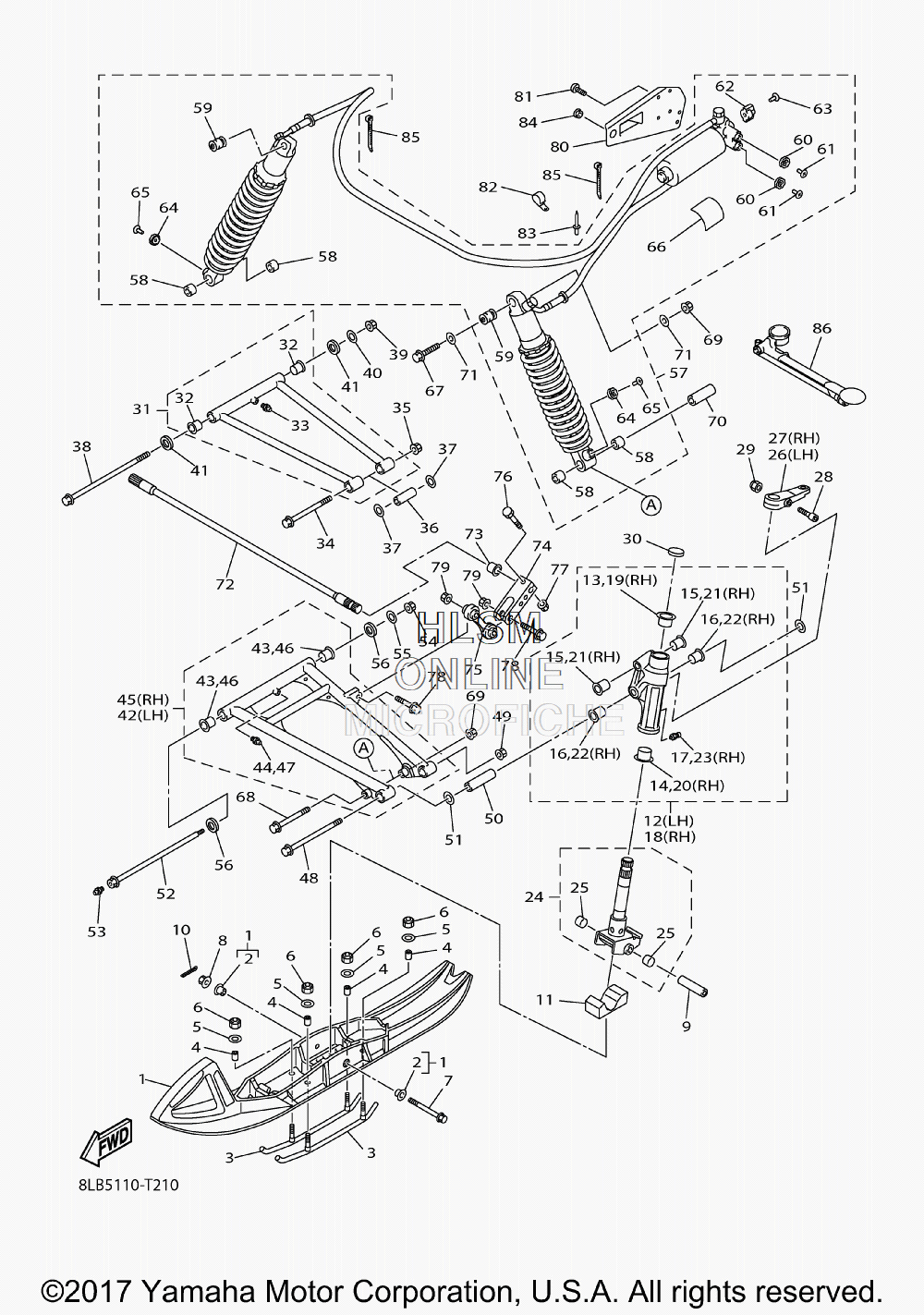

SUSPENSION - FRONT W/ SKI ASSY для Yamaha APEX LE 50TH - 2018 года выпуска`
-
№АртикулНазвание
-
18KM-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
28JH-F3754-00-00 ...COLLAR 1...COLLAR 1
-
38KM-F3731-00-00 RUNNER 1RUNNER 1
-
48KN-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
58JH-F3738-00-00 WASHER 2WASHER 2
-
68JH-F3778-00-00 NUTNUT
-
790105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
990387-1012H-00 COLLARCOLLAR
-
1091401-20020-00 PIN, COTTERPIN, COTTER
-
118HG-23743-00-00 STOPPER 1STOPPER 1
-
128HG-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1390381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1490381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
1590381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
1793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
188HG-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2290381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
248HG-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2590384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
268FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
278FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2890110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2995602-08200-00 NUT, U FLANGENUT, U FLANGE
-
303YK-22472-40-00 CAP, CASECAP, CASE
-
318HG-23540-40-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3290381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3490105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
3690387-10099-00 COLLARCOLLAR
-
3790201-10052-00 WASHER, PLATEWASHER, PLATE
-
3890109-10056-00 BOLTBOLT
-
3995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4090201-10052-00 WASHER, PLATEWASHER, PLATE
-
4190209-15N50-00 WASHERWASHER
-
428HG-23570-40-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4390381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
458HG-23580-40-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4690381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4890105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
4995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5090387-12054-00 COLLARCOLLAR
-
5190201-120T5-00 WASHER, PLATEWASHER, PLATE
-
5290401-10045-00 BOLT, UNIONBOLT, UNION
-
5393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
5590201-10052-00 WASHER, PLATEWASHER, PLATE
-
5690209-15N50-00 WASHERWASHER
-
578LB-237R0-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
5890384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
598FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
605EA-22464-00-00 ...KNOB (COMP)...KNOB (COMP)
-
6190142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
628LB-22464-00-00 ...KNOB, CONTROL...KNOB, CONTROL
-
6390142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
645JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
6590142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
664AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
6790105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
6890105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
6995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
7090387-10N59-00 COLLARCOLLAR
-
7190201-10052-00 WASHER, PLATEWASHER, PLATE
-
728FG-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
738FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
748FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
758ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7690101-06046-00 BOLTBOLT
-
7795604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7895814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7995604-08200-00 NUT, U FLANGENUT, U FLANGE
-
808LB-F3591-00-00 BRACKET 1BRACKET 1
-
8192012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
8290465-08395-00 CLAMPCLAMP
-
8390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
8490480-16278-00 GROMMETGROMMET
-
8590464-35132-00 CLAMPCLAMP
-
868KM-F3703-00-00 ADJUSTERADJUSTER
