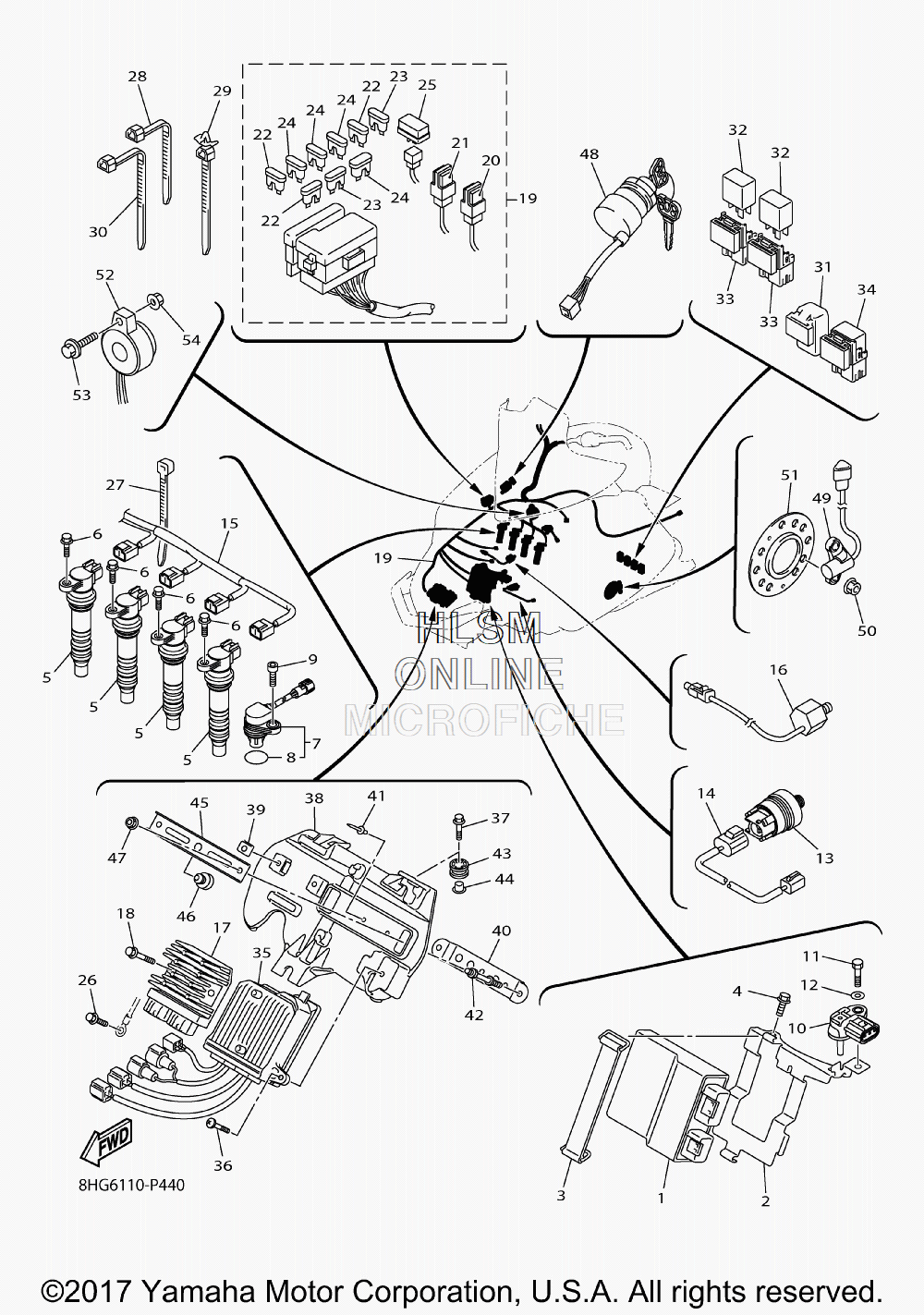

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha APEX LE 50TH - 2018 года выпуска`
-
№АртикулНазвание
-
18HG-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28HG-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
695812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
75VY-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
84D9-81168-00-00 ...O-RING...O-RING
-
990110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
105S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1197022-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1292902-06600-00 WASHER, PLATEWASHER, PLATE
-
138FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
148FP-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
158HG-81515-10-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
168FE-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
171D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1895802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
198HG-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
205PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
214FM-82151-00-00 ...FUSE (30A)...FUSE (30A)
-
225JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
235JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
245JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
254WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2695802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2790464-35132-00 CLAMPCLAMP
-
2890464-13077-00 CLAMPCLAMP
-
2990464-12036-00 CLAMPCLAMP
-
3090464-15195-00 CLAMPCLAMP
-
315DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
328HG-81951-10-00 RELAY ASSY (8HG-10)RELAY ASSY (8HG-10)
-
338HG-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
348GN-81950-00-00 RELAY ASSY (8GN-00)RELAY ASSY (8GN-00)
-
358HG-859A0-11-00 POWER STEERING CONTROL UNIT ASSEMBLYPOWER STEERING CONTROL UNIT ASSEMBLY
-
3698902-06020-00 SCREW, BINDSCREW, BIND
-
3790119-06105-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
388HG-2830X-00-00 BRACKET, CONTROL UNITBRACKET, CONTROL UNIT
-
3990183-06053-00 NUT, SPRINGNUT, SPRING
-
408HG-2836A-00-00 BRACKET 1BRACKET 1
-
4190267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
428HG-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
4390480-12023-00 GROMMETGROMMET
-
4490387-06203-00 COLLARCOLLAR
-
458HG-81948-00-00 BRACKETBRACKET
-
4622W-24741-00-00 PAD, SEATPAD, SEAT
-
4795702-06500-00 NUT, FLANGENUT, FLANGE
-
488HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
498HG-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
5095702-08300-00 NUT, NYLONNUT, NYLON
-
518EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
528GL-83383-00-00 BUZZERBUZZER
-
5390159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
5495702-05500-00 NUT, FLANGENUT, FLANGE
