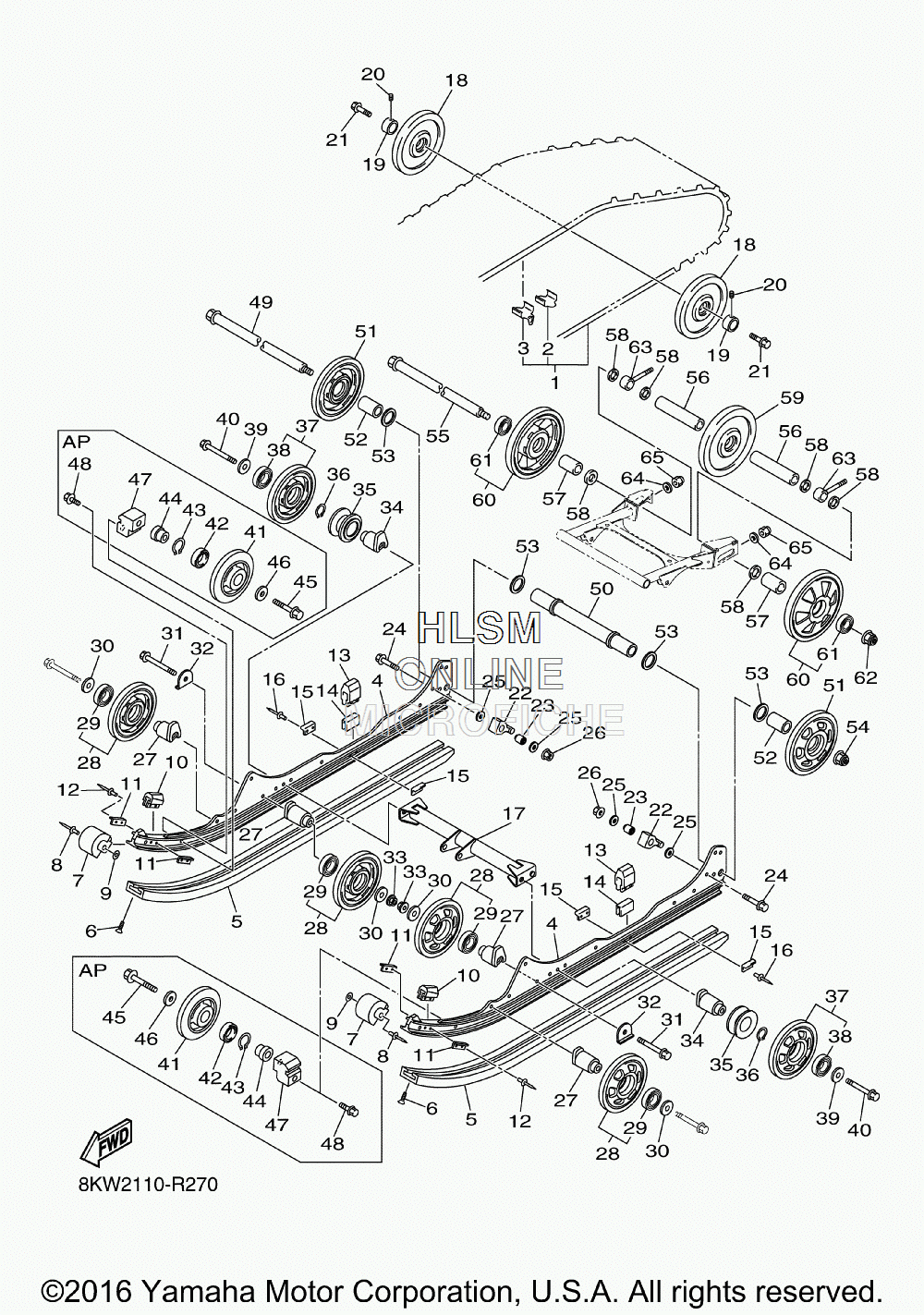

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18KW-47110-00-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48KW-4741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
58JE-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138AC-47457-00-00 DAMPER 2DAMPER 2
-
148AC-47341-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178KW-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
188AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
198JD-47365-00-00 COLLAR 1COLLAR 1
-
2090113-06039-00 BOLT, SETBOLT, SET
-
2190109-10030-00 BOLTBOLT
-
228KW-47496-00-00 STOPPER 2STOPPER 2
-
234GY-22216-20-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
2490105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
2590201-10052-00 WASHER, PLATEWASHER, PLATE
-
2695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
278ES-47419-20-00 BRACKET 7BRACKET 7
-
288HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2993306-00507-00 ...BEARING...BEARING
-
3090201-10038-00 WASHER, PLATEWASHER, PLATE
-
3195812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3290214-10004-00 WASHER, CLAWWASHER, CLAW
-
3395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
348ES-47419-10-00 BRACKET 7BRACKET 7
-
358ET-47446-00-00 HOOK 1HOOK 1
-
3699009-35400-00 CIRCLIPCIRCLIP
-
378HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3893306-00507-00 ...BEARING...BEARING
-
3990201-10038-00 WASHER, PLATEWASHER, PLATE
-
4095812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
418AC-47320-00-00 SUSPENSION WHEEL COMP. (OPT)SUSPENSION WHEEL COMP. (OPT)
-
4293306-00444-00 BEARING (OPT)BEARING (OPT)
-
4399009-42500-00 CIRCLIP (OPT)CIRCLIP (OPT)
-
448GP-47319-00-00 COLLAR (OPT)COLLAR (OPT)
-
4595812-10045-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
4690201-10052-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
478GP-47419-00-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
4890105-10237-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
498JN-47520-00-00 REAR AXLE COMP.REAR AXLE COMP.
-
5083R-47469-10-00 COLLAR 1COLLAR 1
-
518HP-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5290387-20022-00 COLLARCOLLAR
-
5390201-20022-00 WASHER, PLATEWASHER, PLATE
-
5495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
558JN-47520-00-00 REAR AXLE COMP.REAR AXLE COMP.
-
5690387-20023-00 COLLARCOLLAR
-
5790387-20022-00 COLLARCOLLAR
-
5890201-20022-00 WASHER, PLATEWASHER, PLATE
-
598CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
608HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6193306-00444-00 ...BEARING...BEARING
-
6295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
638DM-47479-00-00 COLLAR 3COLLAR 3
-
6492902-10600-00 WASHER, PLATEWASHER, PLATE
-
6595702-10300-00 NUT, NYLONNUT, NYLON
