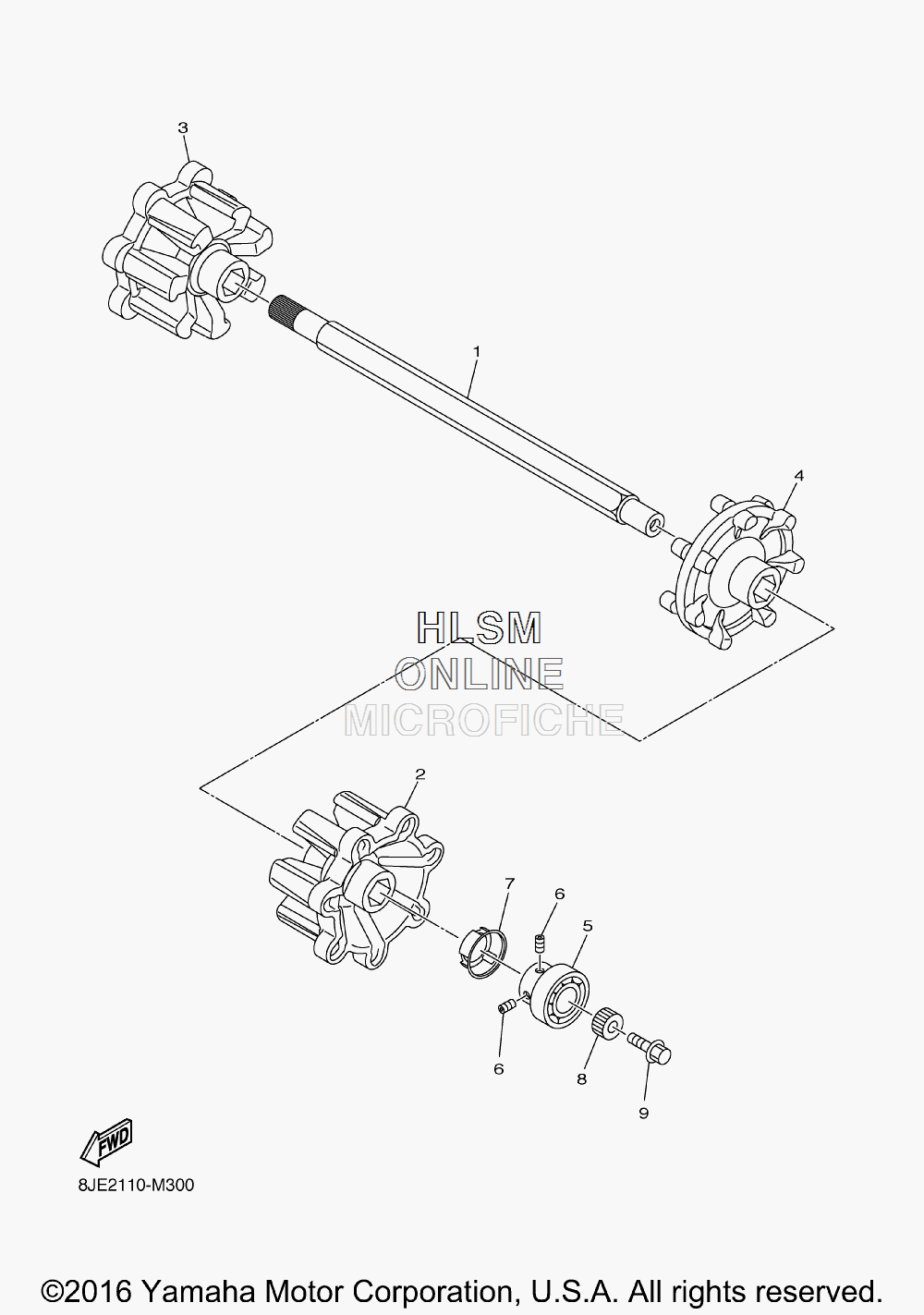

DRIVE TRAIN ASSEMBLY для Yamaha VK PROFESSIONAL II - 2017 года выпуска`
-
№АртикулНазвание
-
18GS-47511-00-00 AXLE, FRONTAXLE, FRONT
-
28JD-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
38JD-47532-00-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
48JD-4753A-00-00 WHEEL, SPROCKET 3WHEEL, SPROCKET 3
-
593306-20589-00 BEARINGBEARING
-
690113-06064-00 BOLT, SETBOLT, SET
-
78FN-47377-00-00 CAPCAP
-
88EK-47715-00-00 JOINTJOINT
-
995822-10025-00 BOLT, FLANGEBOLT, FLANGE
