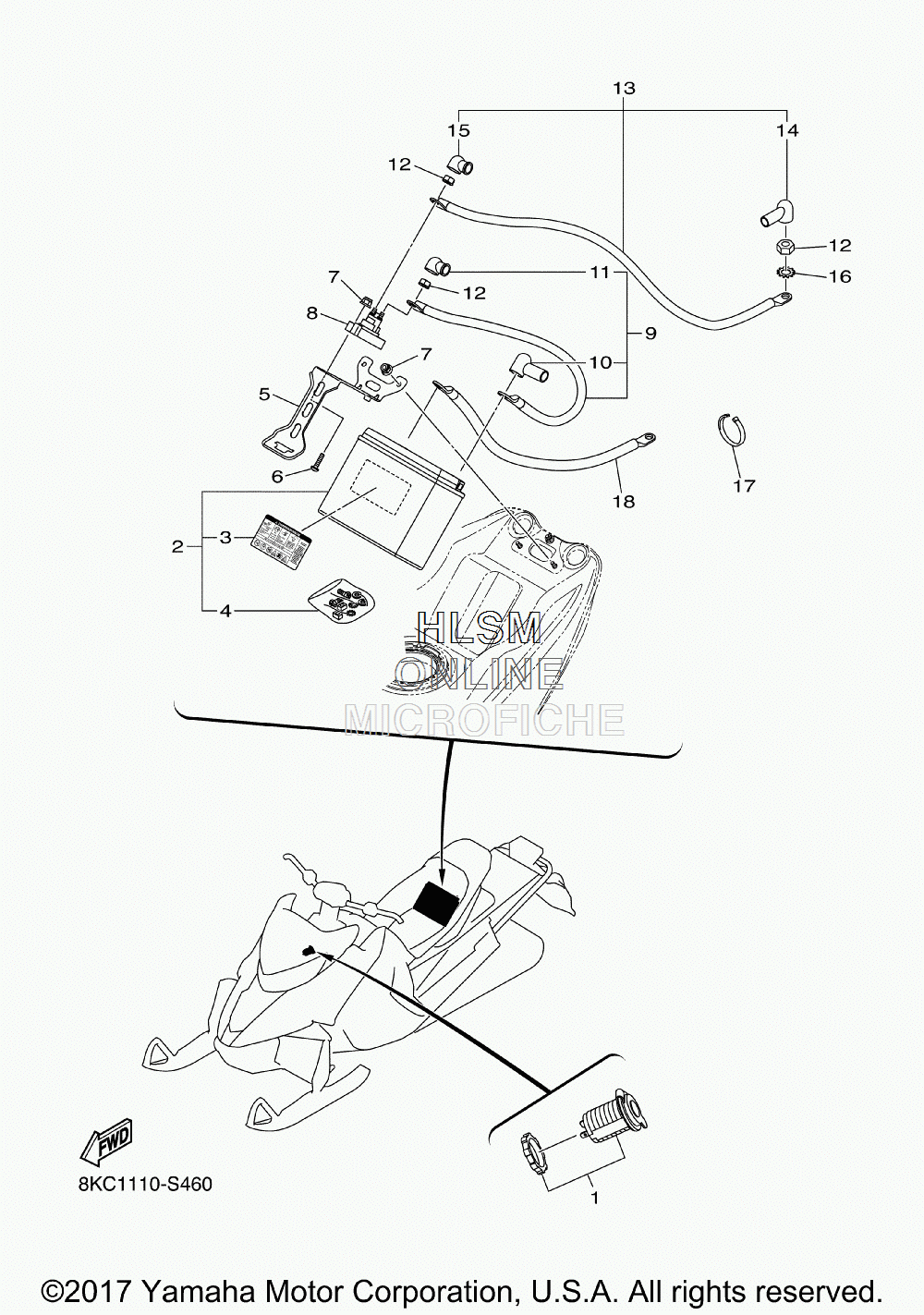

ELECTRICAL - BATTERY ASSY для Yamaha SIDEWINDER L TX LE - 2017 года выпуска`
-
№АртикулНазвание
-
18JP-H254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
28KG-H2100-00-00 BATTERY ASSYBATTERY ASSY
-
38JP-H2141-00-00 ...LABEL, BATTERY...LABEL, BATTERY
-
48JP-F819G-00-00 ...REPAIR PARTS KIT...REPAIR PARTS KIT
-
58JP-H2158-00-00 BRACKET, BATTERY 2BRACKET, BATTERY 2
-
68JP-RA265-00-00 SCREW, M6X1.0X30SCREW, M6X1.0X30
-
78JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
88JP-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
98JP-H8146-00-00 CABLE 1CABLE 1
-
108JP-H1942-00-00 ...COVER...COVER
-
118JP-H1916-00-00 ...COVER, TERMINAL...COVER, TERMINAL
-
128JP-RA375-00-00 NUT, WITH WASHER M6NUT, WITH WASHER M6
-
138JP-H8147-00-00 CABLE 2CABLE 2
-
148JP-H1942-00-00 ...COVER...COVER
-
158JP-H1916-00-00 ...COVER, TERMINAL...COVER, TERMINAL
-
168JM-RA407-00-00 WASHER, TOOTHED LOCK 1/4WASHER, TOOTHED LOCK 1/4
-
178JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
188JP-H131Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
