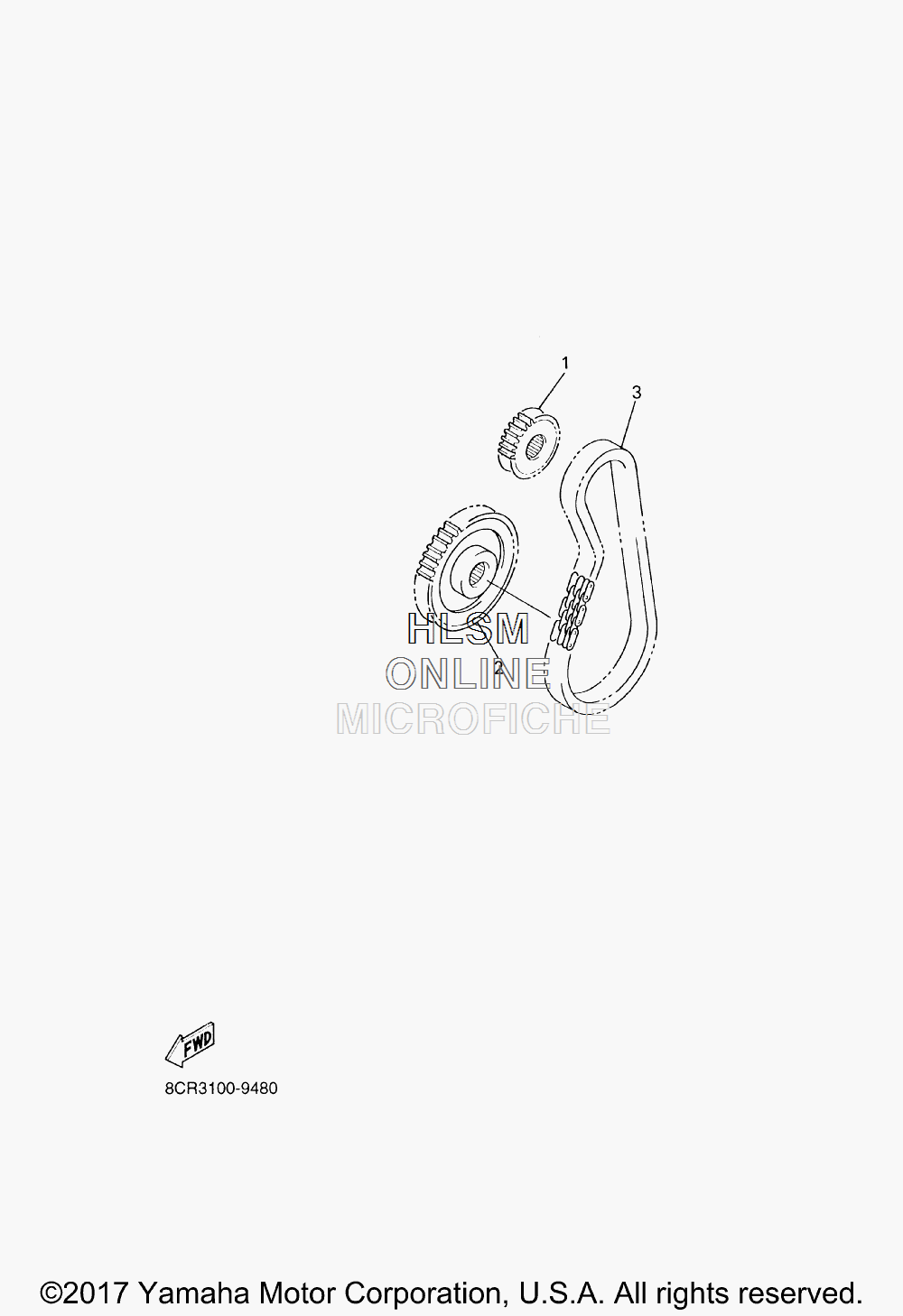

CHAINCASE - SPROCKET AND CHAINS (OPTION) для Yamaha SIDEWINDER L TX LE - 2017 года выпуска`
-
№АртикулНазвание
-
18KC-E769A-10-00 DRIVE SPROCKET ASSY. (21T)DRIVE SPROCKET ASSY. (21T)
-
18KC-E769A-40-00 DRIVE SPROCKET ASSY. (24T)DRIVE SPROCKET ASSY. (24T)
-
28JP-G7587-00-00 SPROCKET, CHAIN DRIVEN (50T)SPROCKET, CHAIN DRIVEN (50T)
-
28JP-G7587-10-00 SPROCKET, CHAIN DRIVEN (41T)SPROCKET, CHAIN DRIVEN (41T)
-
28JP-G7587-90-00 SPROCKET, CHAIN DRIVEN (49T)SPROCKET, CHAIN DRIVEN (49T)
-
38KC-RAM01-10-00 CHAIN, BWA (90L)CHAIN, BWA (90L)
-
38KC-RAM01-20-00 CHAIN, BWA (86L)CHAIN, BWA (86L)
-
38KC-RAM01-00-00 CHAIN, BWA (92L)CHAIN, BWA (92L)
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- • CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- TURBO CHARGER
- VALVE ASSY
- WATER PUMP ASSY
