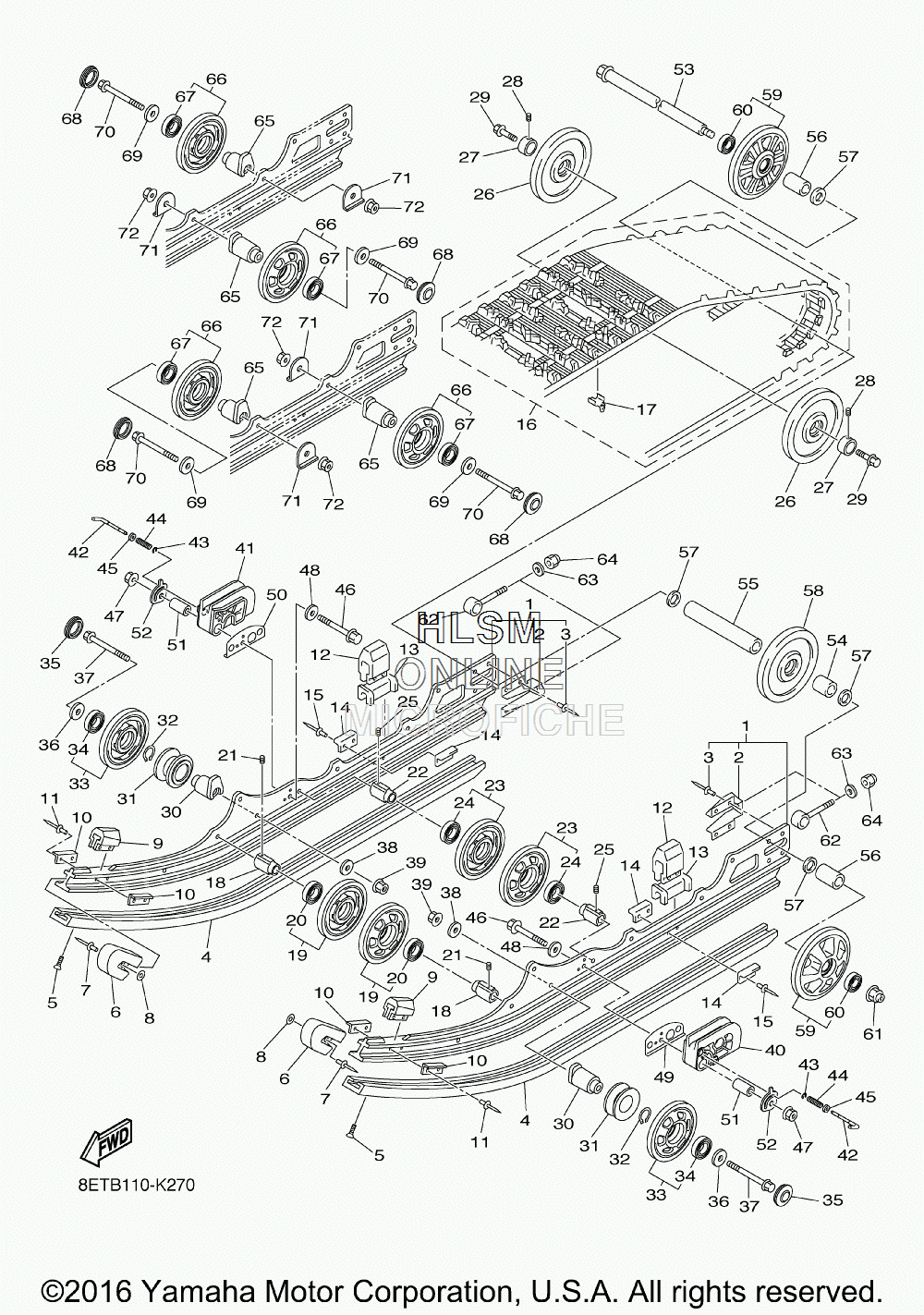

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE - 2017 года выпуска`
-
№АртикулНазвание
-
18ET-W4741-11-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48ET-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168ET-47110-11-00 TRACK ASSYTRACK ASSY
-
178HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
188ES-47319-01-00 COLLARCOLLAR
-
198HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2093306-00507-00 ...BEARING...BEARING
-
2190113-06039-00 BOLT, SETBOLT, SET
-
228ES-47319-01-00 COLLARCOLLAR
-
238HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2493306-00507-00 ...BEARING...BEARING
-
2590113-06039-00 BOLT, SETBOLT, SET
-
268CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
278ES-47365-00-00 COLLAR 1COLLAR 1
-
2890113-06039-00 BOLT, SETBOLT, SET
-
2990105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
308ES-47419-10-00 BRACKET 7BRACKET 7
-
318ET-47446-00-00 HOOK 1HOOK 1
-
3299009-35400-00 CIRCLIPCIRCLIP
-
338HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3493306-00507-00 ...BEARING...BEARING
-
358HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
3690201-10038-00 WASHER, PLATEWASHER, PLATE
-
3795812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-10052-00 WASHER, PLATEWASHER, PLATE
-
3995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
408ET-47435-10-00 SPRING, OUTSIDE 1SPRING, OUTSIDE 1
-
418ET-47436-10-00 SPRING, OUTSIDE 2SPRING, OUTSIDE 2
-
428ET-47449-10-00 PIN 1PIN 1
-
4399001-04600-00 CIRCLIPCIRCLIP
-
4490501-08665-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4590387-061Y1-00 COLLARCOLLAR
-
4690105-10029-00 BOLT, FLANGEBOLT, FLANGE
-
4795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4890201-10052-00 WASHER, PLATEWASHER, PLATE
-
498ET-47374-10-00 WASHER 1WASHER 1
-
508ET-47375-10-00 WASHER 2WASHER 2
-
5190387-106K8-00 COLLARCOLLAR
-
528ET-47347-00-00 WASHER, LOCKWASHER, LOCK
-
538L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5490387-20015-00 COLLARCOLLAR
-
5590387-20016-00 COLLARCOLLAR
-
5690387-20019-00 COLLARCOLLAR
-
5790201-205R6-00 WASHER, PLATEWASHER, PLATE
-
588CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
598HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6093306-00444-00 ...BEARING...BEARING
-
6195607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
628DM-47479-00-00 COLLAR 3COLLAR 3
-
6392902-10600-00 WASHER, PLATEWASHER, PLATE
-
6495702-10300-00 NUT, NYLONNUT, NYLON
-
658ES-47419-00-00 BRACKET 7BRACKET 7
-
668HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
6793306-00507-00 ...BEARING...BEARING
-
688HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
6990201-10038-00 WASHER, PLATEWASHER, PLATE
-
7095812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
7190214-10003-00 WASHER, CLAWWASHER, CLAW
-
7295602-10200-00 NUT, U FLANGENUT, U FLANGE
