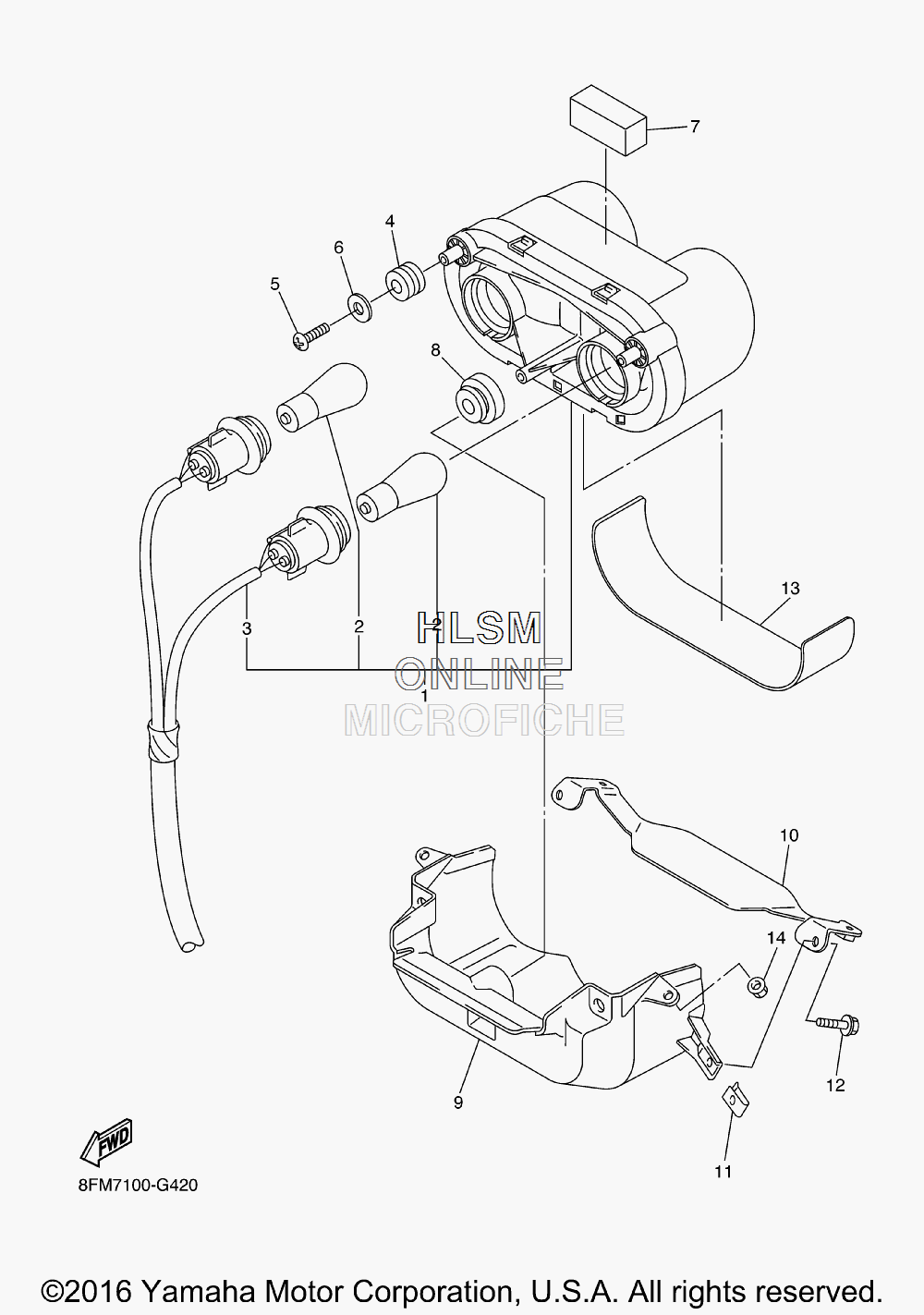

ELECTRICAL - TAILLIGHT ASSY для Yamaha RS VENTURE - 2017 года выпуска`
-
№АртикулНазвание
-
15JJ-84710-12-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-50-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
35JJ-84735-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
44XV-83513-00-00 DAMPERDAMPER
-
597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
690201-05725-00 WASHER, PLATEWASHER, PLATE
-
78ET-21747-00-00 DAMPERDAMPER
-
890480-18171-00 GROMMETGROMMET
-
98FA-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
108GM-77531-00-00 BRACKET, FRONTBRACKET, FRONT
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1295802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
138GM-7712E-01-00 INSULATORINSULATOR
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
