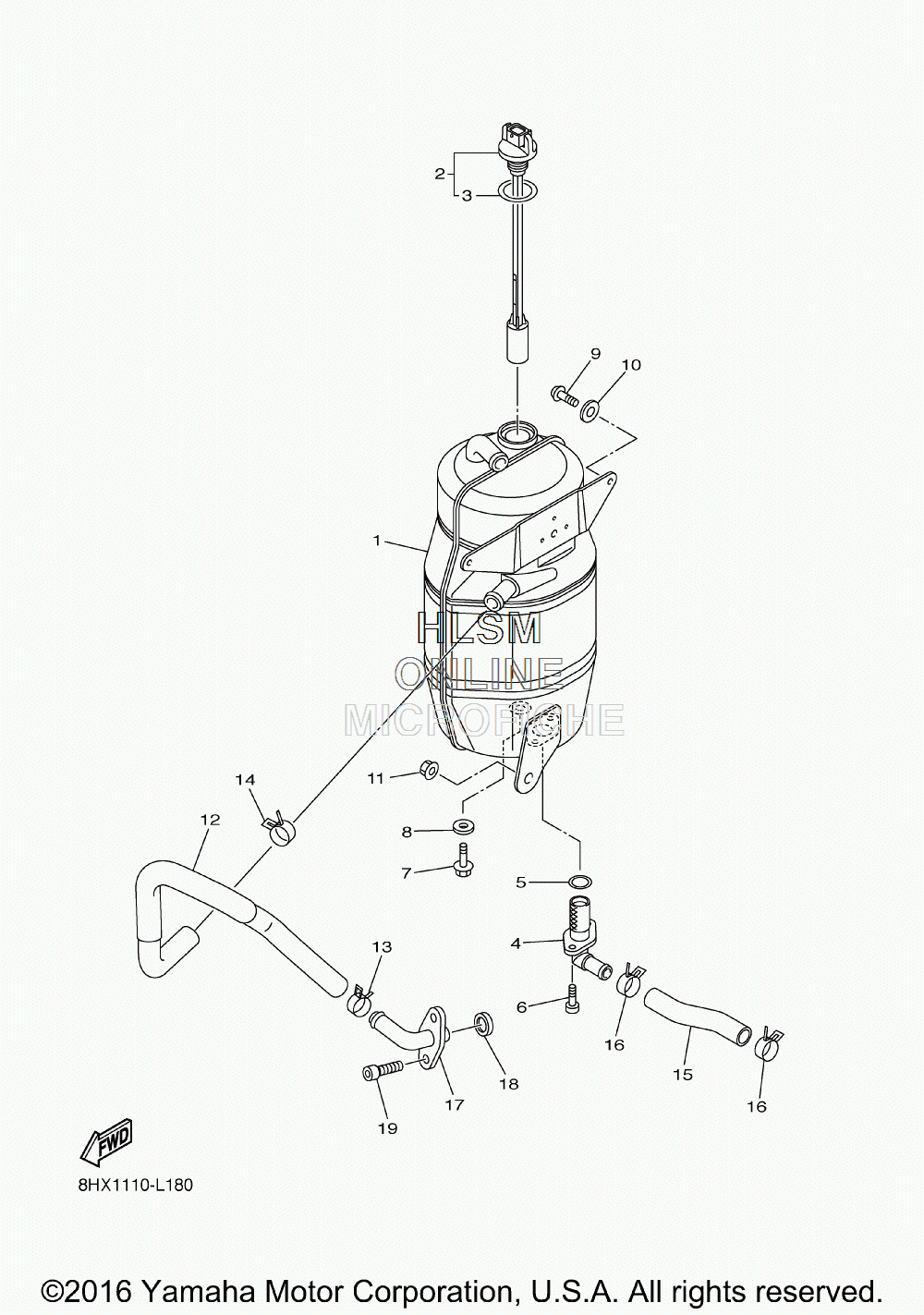

OIL TANK ASSY для Yamaha RS VENTURE TF BAT - 2017 года выпуска`
-
№АртикулНазвание
-
18HV-21751-00-00 TANK, OILTANK, OIL
-
28GL-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
38FP-85075-00-00 ...O-RING...O-RING
-
48GL-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
593210-24001-00 O-RINGO-RING
-
691312-06016-00 BOLTBOLT
-
795802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-08204-00 GASKETGASKET
-
992012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090201-06078-00 WASHER, PLATEWASHER, PLATE
-
1195602-08200-00 NUT, U FLANGENUT, U FLANGE
-
128GM-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1390467-22097-00 CLIPCLIP
-
1490467-22097-00 CLIPCLIP
-
158HF-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
1690467-22097-00 CLIPCLIP
-
178ES-13115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
1893210-16629-00 O-RINGO-RING
-
1991312-06016-00 BOLTBOLT
