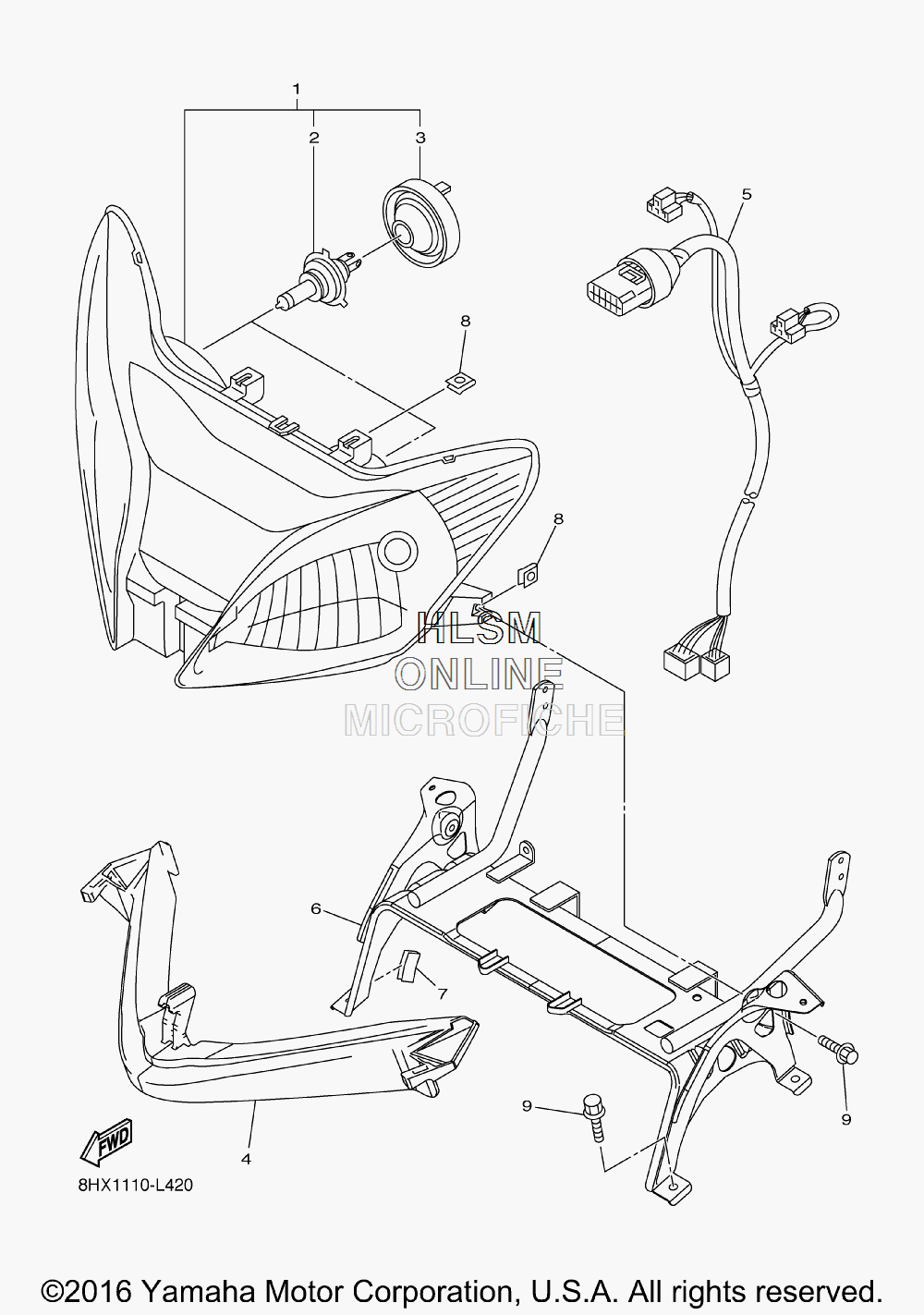

ELECTRICAL - HEADLIGHT ASSY для Yamaha RS VENTURE TF BAT - 2017 года выпуска`
-
№АртикулНазвание
-
18FP-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28FP-84314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
38EK-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
48FP-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
58HV-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
68HX-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
78FA-7717H-00-00 TAPE 4TAPE 4
-
890183-06100-00 NUT, SPRINGNUT, SPRING
-
995802-06016-00 BOLT, FLANGEBOLT, FLANGE
