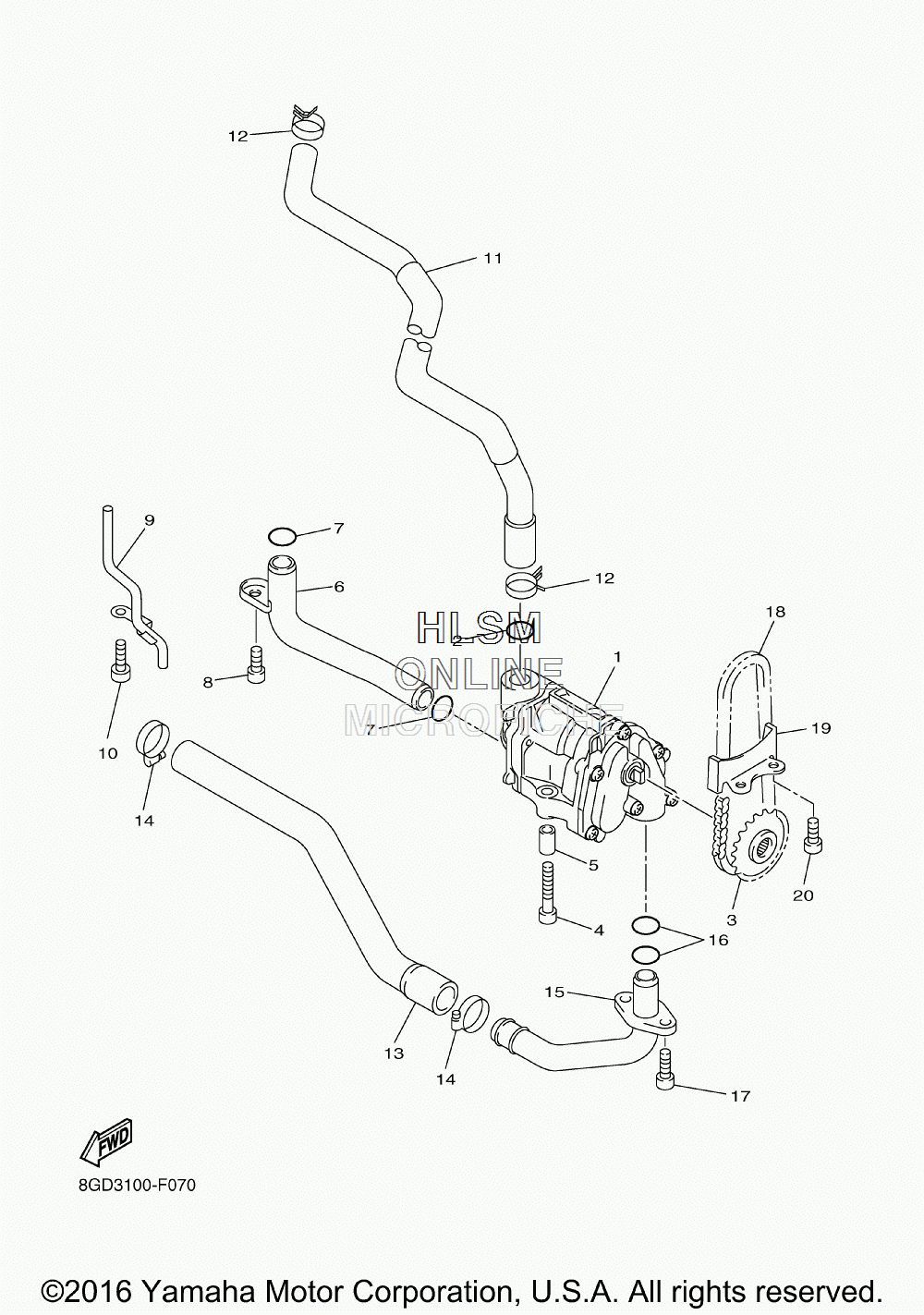

OIL PUMP ASSY для Yamaha APEX - 2017 года выпуска`
-
№АртикулНазвание
-
18FA-13300-10-00 OIL PUMP ASSYOIL PUMP ASSY
-
293210-18322-00 O-RINGO-RING
-
38FA-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
491312-06035-00 BOLTBOLT
-
599530-08012-00 PIN, DOWELPIN, DOWEL
-
68FA-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
793210-16629-00 O-RINGO-RING
-
890110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
98FP-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1090110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
118FP-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1290467-22097-00 CLIPCLIP
-
138FA-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
1490450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
158FA-1311A-00-00 CONNECTOR, SUCTION PIPE 2CONNECTOR, SUCTION PIPE 2
-
1693210-16629-00 O-RINGO-RING
-
1791312-06014-00 BOLTBOLT
-
1894580-31058-00 CHAINCHAIN
-
198FA-13898-00-00 HOLDERHOLDER
-
2090110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
