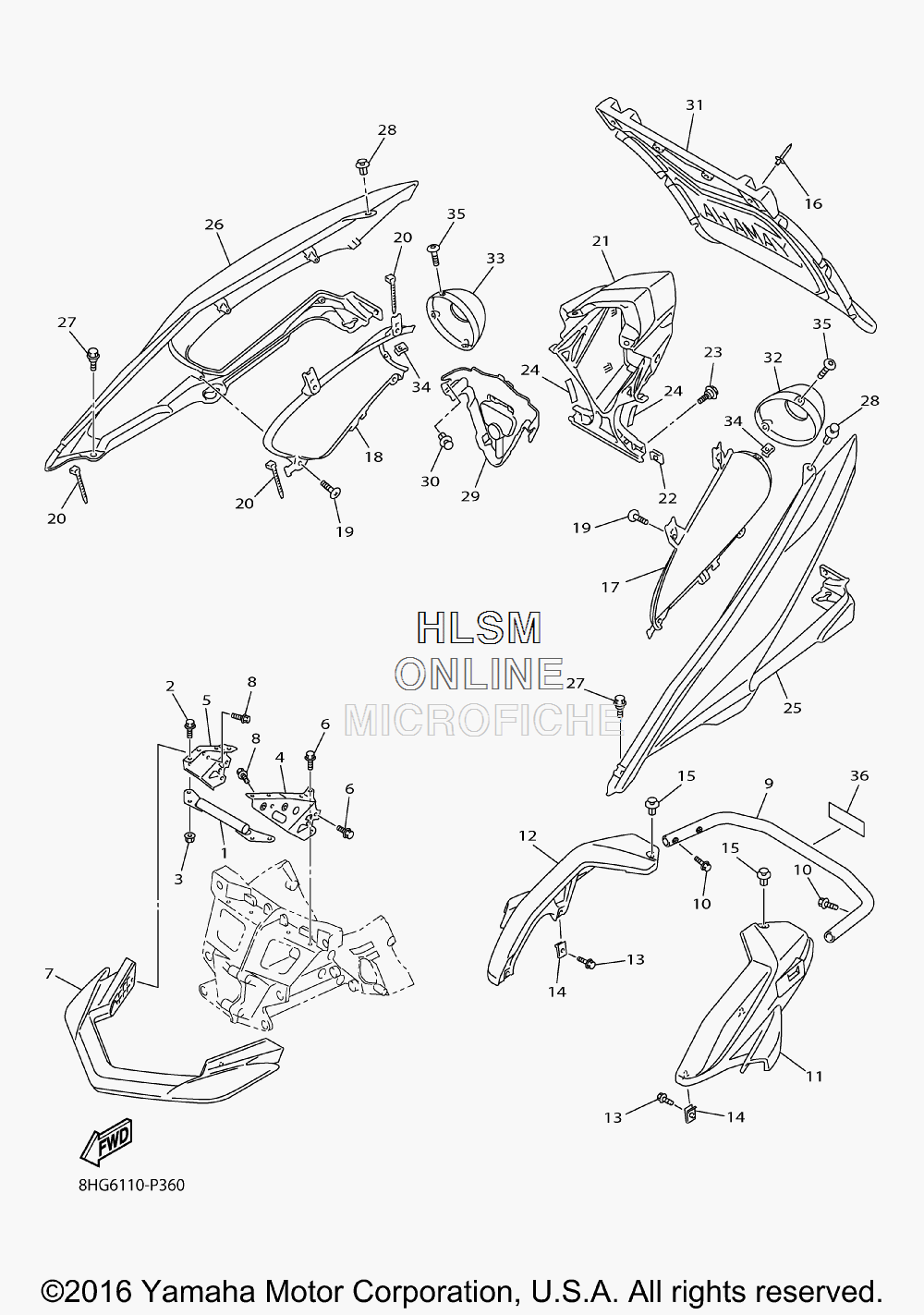

BUMPER - FRONT AND REAR для Yamaha APEX - 2017 года выпуска`
-
№АртикулНазвание
-
18FP-21979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
295822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
395702-06500-00 NUT, FLANGENUT, FLANGE
-
48FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
58FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
695822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
78FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
895812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
98HG-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
1095822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
118HG-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
128HG-77543-00-00 BUMPER, REAR 3BUMPER, REAR 3
-
1395802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1490183-06053-00 NUT, SPRINGNUT, SPRING
-
1590269-08006-00 RIVETRIVET
-
1690267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
178HG-77551-00-P0 PROTECTOR 1 (DPBMC)PROTECTOR 1 (DPBMC)
-
188HG-77552-00-P0 PROTECTOR 2 (DPBMC)PROTECTOR 2 (DPBMC)
-
1997702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2090465-13M11-00 CLAMPCLAMP
-
218HG-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
2290183-06100-00 NUT, SPRINGNUT, SPRING
-
2390109-06220-00 BOLTBOLT
-
248HG-77588-00-00 DAMPERDAMPER
-
258HG-2471K-00-00 COVER, TAIL 1COVER, TAIL 1
-
268HG-2472K-00-00 COVER, TAIL 2COVER, TAIL 2
-
2790109-06220-00 BOLTBOLT
-
2890269-08006-00 RIVETRIVET
-
298HG-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
3090269-08006-00 RIVETRIVET
-
318GT-K7595-00-00 FLAPFLAP
-
328HG-77517-00-00 CAPCAP
-
338HG-77517-10-00 CAPCAP
-
3490183-050A6-00 NUT, SPRINGNUT, SPRING
-
3590111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
368JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
