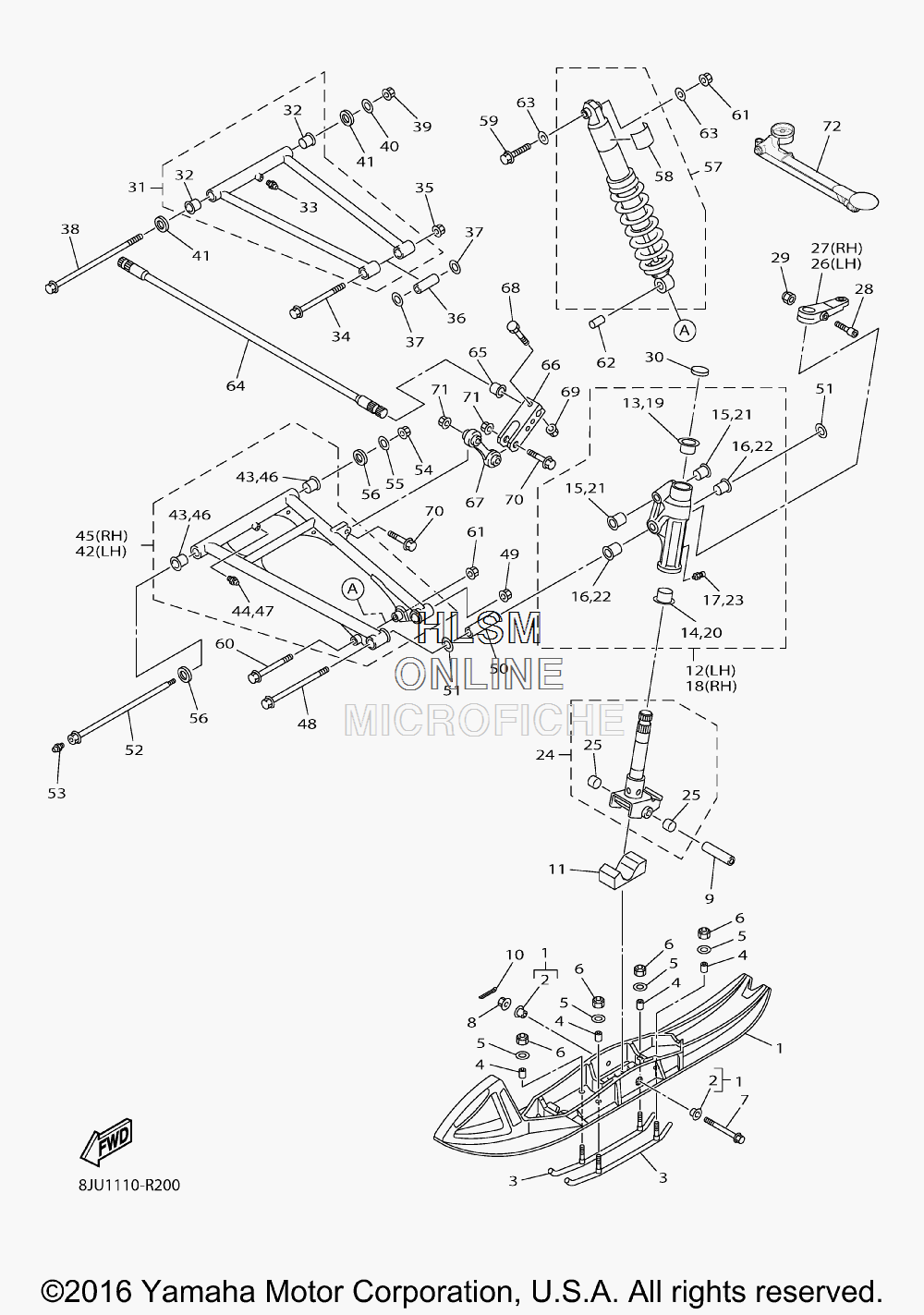

SUSPENSION - FRONT W/ SKI ASSY для Yamaha APEX XTX - 2017 года выпуска`
-
№АртикулНазвание
-
18KM-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
28JH-F3754-00-00 ...COLLAR 1...COLLAR 1
-
38KM-F3731-00-00 RUNNER 1RUNNER 1
-
48KN-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
58JH-F3738-00-00 WASHER 2WASHER 2
-
68JH-F3778-00-00 NUTNUT
-
790105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
990387-1012H-00 COLLARCOLLAR
-
1091401-20020-00 PIN, COTTERPIN, COTTER
-
118HG-23743-00-00 STOPPER 1STOPPER 1
-
128HG-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1390381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1490381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
1590381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
1793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
188HG-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2290381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
248HG-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2590384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
268FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
278FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2890110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2995602-08200-00 NUT, U FLANGENUT, U FLANGE
-
303YK-22472-40-00 CAP, CASECAP, CASE
-
318HG-23540-30-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3290381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3490105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3690387-10099-00 COLLARCOLLAR
-
3790201-10052-00 WASHER, PLATEWASHER, PLATE
-
3890109-10056-00 BOLTBOLT
-
3995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4090201-10052-00 WASHER, PLATEWASHER, PLATE
-
4190209-15N50-00 WASHERWASHER
-
428HG-23570-30-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4390381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
458HG-23580-30-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4690381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4890105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
4995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5090387-12054-00 COLLARCOLLAR
-
5190201-120T5-00 WASHER, PLATEWASHER, PLATE
-
5290401-10045-00 BOLT, UNIONBOLT, UNION
-
5393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
5590201-10052-00 WASHER, PLATEWASHER, PLATE
-
5690209-15N50-00 WASHERWASHER
-
578KL-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
584AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
5990105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
6090105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
6195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6290387-10N59-00 COLLARCOLLAR
-
6390201-10052-00 WASHER, PLATEWASHER, PLATE
-
648FG-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
658FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
668FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
678ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6890101-06046-00 BOLTBOLT
-
6995604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7095814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7195604-08200-00 NUT, U FLANGENUT, U FLANGE
-
728KM-F3703-00-00 ADJUSTERADJUSTER
