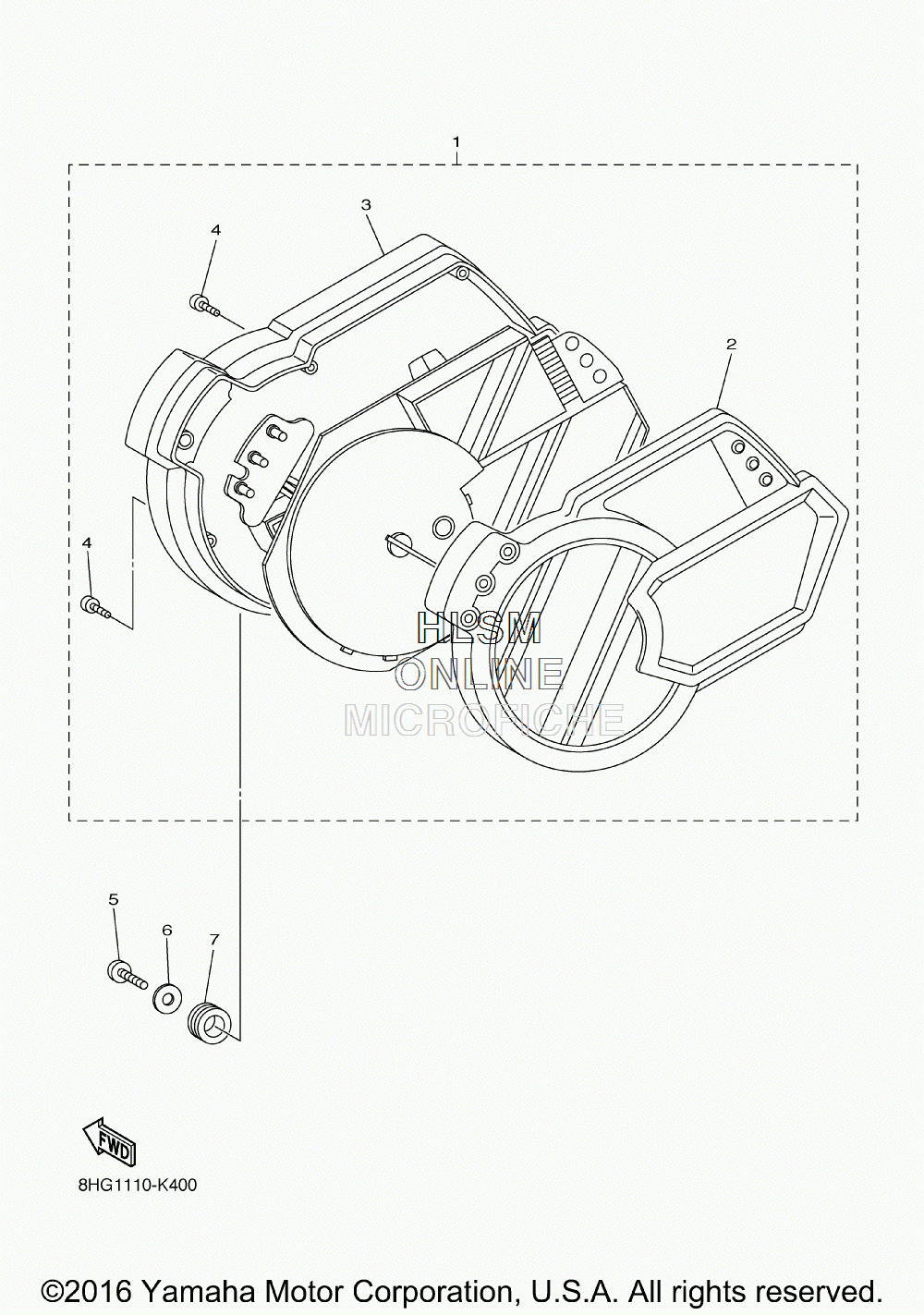

ELECTRICAL - INSTRUMENTS для Yamaha APEX XTX - 2017 года выпуска`
-
№АртикулНазвание
-
18HG-83500-10-00 SPEEDOMETER ASSY (KM/H)SPEEDOMETER ASSY (KM/H)
-
28FP-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
38FP-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
45PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
690201-05725-00 WASHER, PLATEWASHER, PLATE
-
74XV-83513-00-00 DAMPERDAMPER
