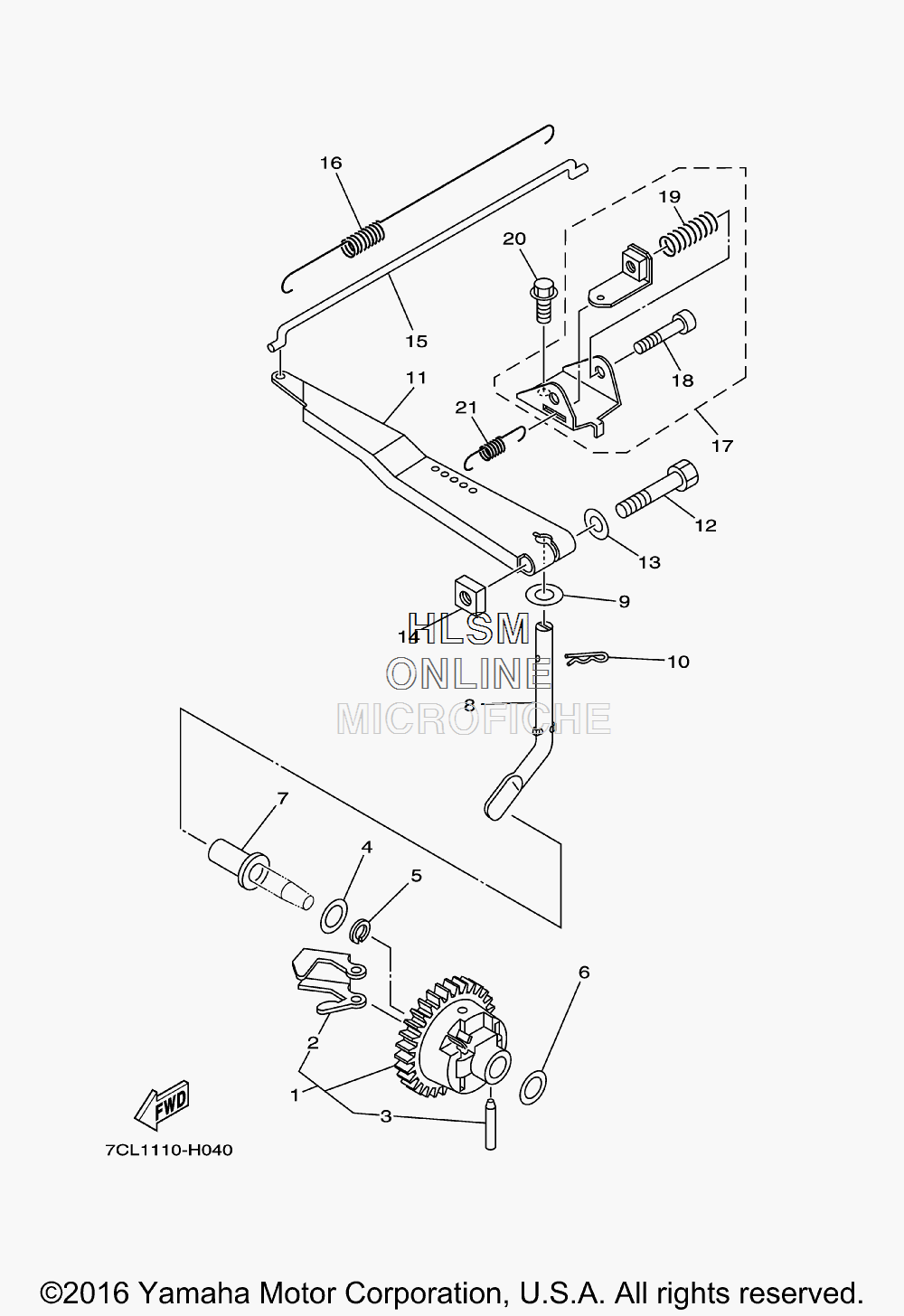

GOVERNOR для Yamaha SRX 1250 - 2016 года выпуска`
-
№АртикулНазвание
-
17CN-E1970-00-00 FLYWEIGHT SHAFT ASSYFLYWEIGHT SHAFT ASSY
-
27CN-E1913-00-00 ...WEIGHT...WEIGHT
-
37CN-E1914-00-00 ...SHAFT, WEIGHT...SHAFT, WEIGHT
-
490201-06842-00 WASHER, PLATEWASHER, PLATE
-
593440-06826-00 CIRCLIPCIRCLIP
-
690201-06842-00 WASHER, PLATEWASHER, PLATE
-
77CN-E1917-00-00 COLLARCOLLAR
-
87CN-E1922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
992902-06200-00 WASHERWASHER
-
1090468-18800-00 CLIPCLIP
-
117CN-E1924-00-00 ARM, GOVERNORARM, GOVERNOR
-
1297022-06030-00 BOLT, HEXAGONBOLT, HEXAGON
-
1392902-06600-00 WASHER, PLATEWASHER, PLATE
-
1490173-06802-00 NUT, SQUARENUT, SQUARE
-
157CN-E1928-00-00 ROD, LINKROD, LINK
-
1690506-04800-00 SPRING, TENSIONSPRING, TENSION
-
177CN-E1950-00-00 ADJUST PLATE COMP.ADJUST PLATE COMP.
-
1898502-06035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1990501-10812-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2095822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2190506-08801-00 SPRING, TENSIONSPRING, TENSION
Все узлы модели:
- AIR SHROUD W/ RECOIL STARTER
- CAMSHAFT W/ VALVE
- CARBURETOR ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - MAGNETO ASSEMBLY
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- • GOVERNOR
- HANDLEBAR ASSY W/ STEERING ASSY
- HEAD & TAIL LIGHT
- HOOD - WINDSHIELD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- SEAT ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- TUNNEL EXTENSION ASSEMBLY
