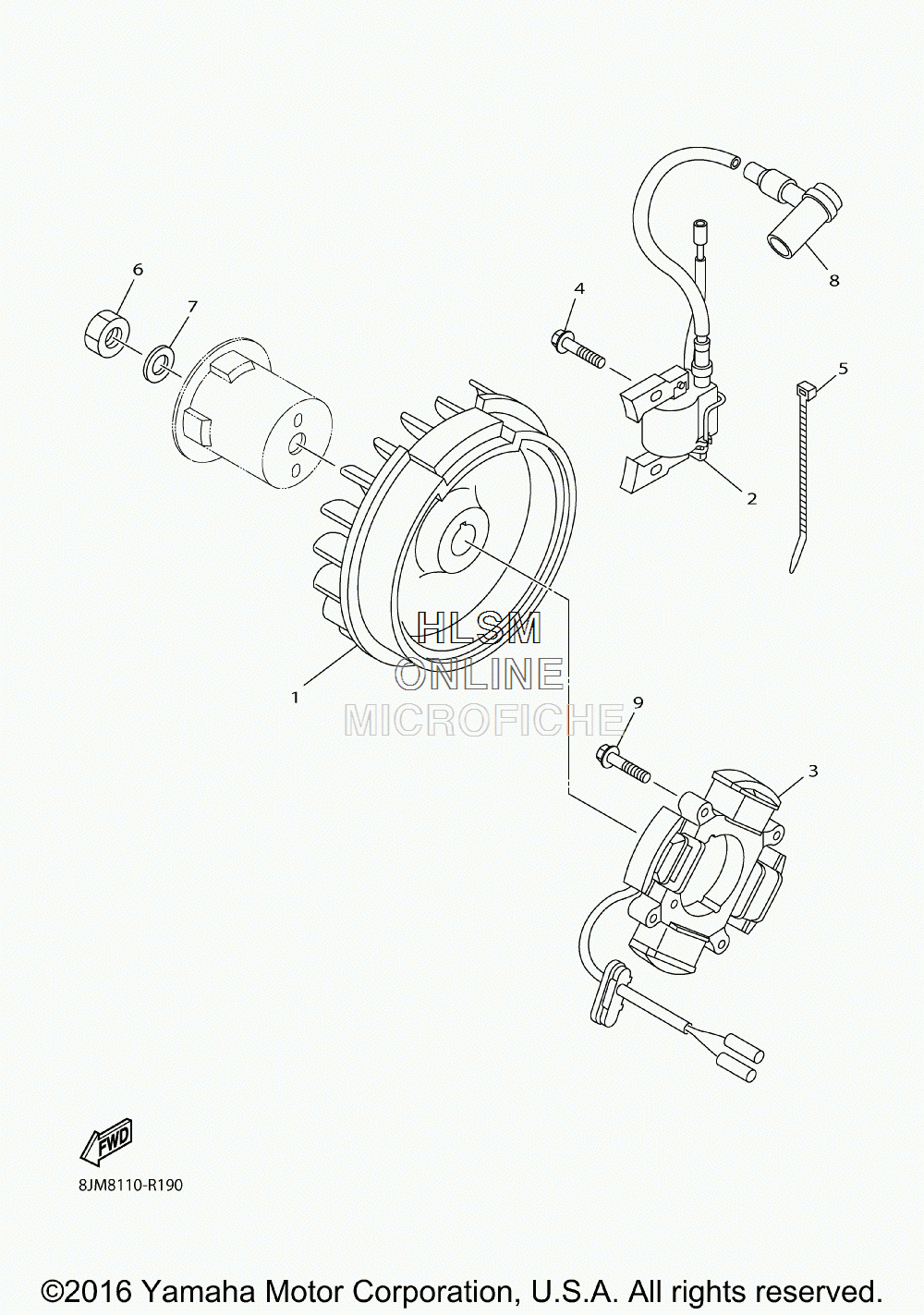

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha SRX 1250 - 2016 года выпуска
-
№АртикулНазвание
-
17CN-H5650-30-00 ROTOR ASSYROTOR ASSY
-
27CN-H5640-01-00 T.C.I. UNIT ASSYT.C.I. UNIT ASSY
-
37BN-H1410-00-00 STATOR ASSYSTATOR ASSY
-
495822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
57CN-H7188-00-00 BINDERBINDER
-
690170-14800-00 NUTNUT
-
792902-14200-00 WASHERWASHER
-
87CN-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
990109-06881-00 BOLTBOLT
