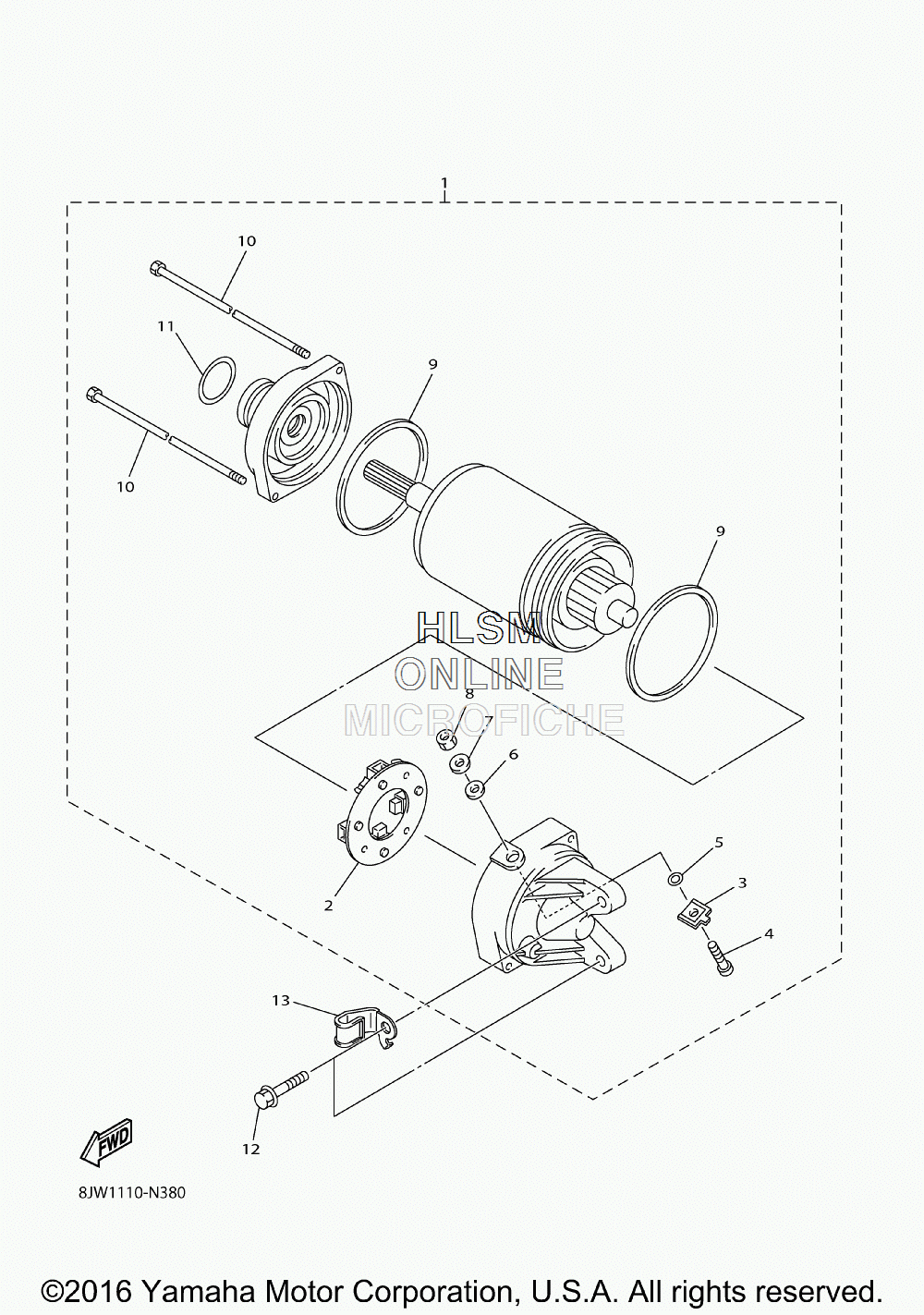

STARTER - ELECTRICAL STARTER ASSY для Yamaha SRVIPER X TX LE - 2016 года выпуска`
-
№АртикулНазвание
-
18GL-81890-00-00 MOTOR ASSYMOTOR ASSY
-
22S3-81801-00-00 ...BRUSH SET...BRUSH SET
-
32S3-8182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
42S3-81828-00-00 ...SCREW 2...SCREW 2
-
593210-06001-00 ...O-RING...O-RING
-
68FA-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
71D7-81835-00-00 ...WASHER...WASHER
-
895302-06700-00 ...NUT, HEXAGON...NUT, HEXAGON
-
95PX-81861-00-00 ...GASKET...GASKET
-
108ES-81846-01-00 ...SCREW...SCREW
-
1193210-24235-00 ...O-RING...O-RING
-
1295812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1390465-08030-00 CLAMPCLAMP
