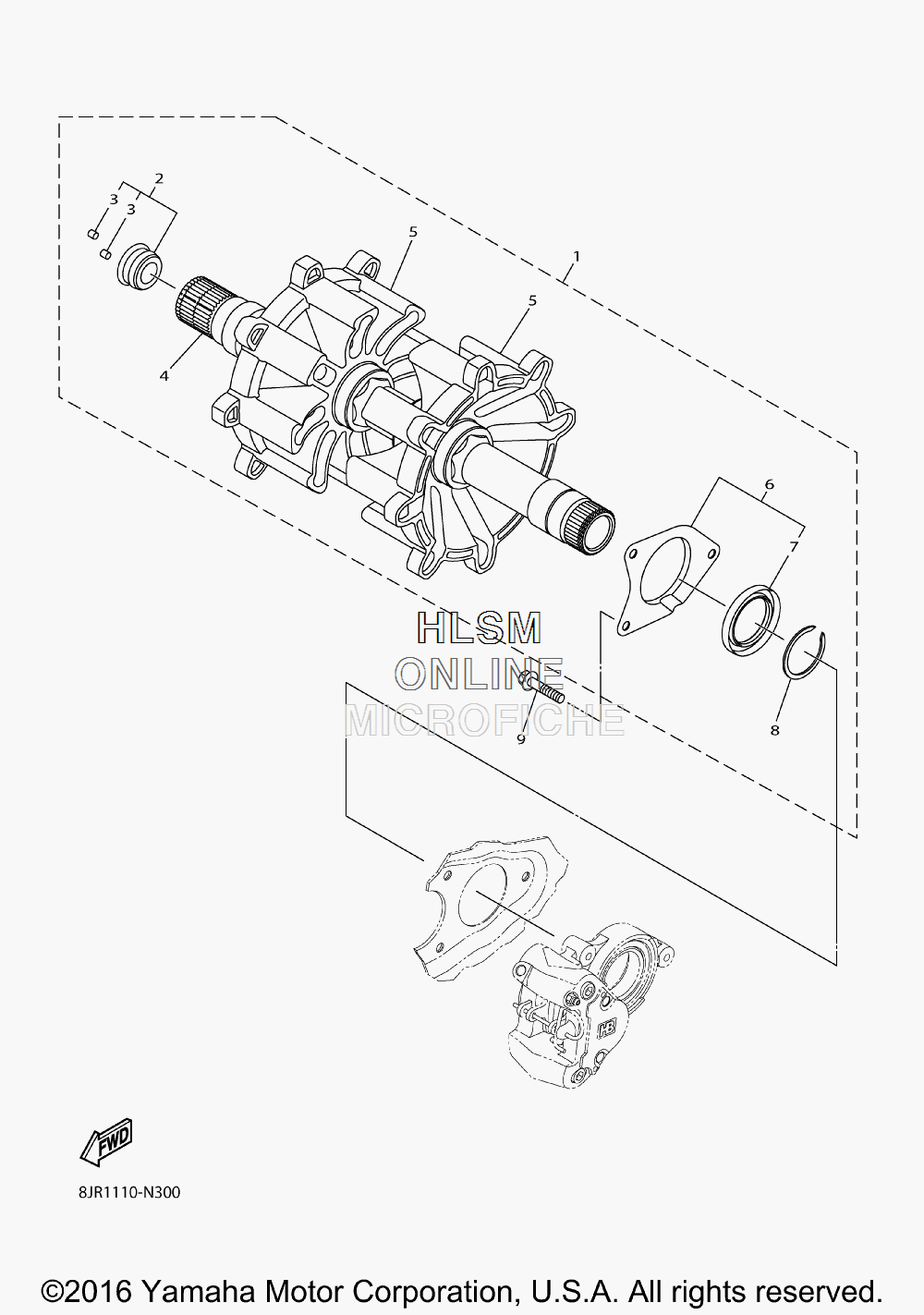

DRIVE TRAIN ASSEMBLY для Yamaha SRVIPER X TX LE - 2016 года выпуска`
-
№АртикулНазвание
-
18JR-G7501-00-00 FRONT AXLE SUB-ASSYFRONT AXLE SUB-ASSY
-
28JP-H3755-00-00 ...SENSOR, SPEED...SENSOR, SPEED
-
38JP-H366M-00-00 ......MAGNET......MAGNET
-
48JP-G7511-00-00 ...AXLE, FRONT...AXLE, FRONT
-
58JR-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
68JP-F5803-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
78JP-RAE02-00-00 ......SEAL, OIL 45X65X8......SEAL, OIL 45X65X8
-
88JP-RAH07-00-00 ...CIRCLIP, FS-0175...CIRCLIP, FS-0175
-
98JP-RA189-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
