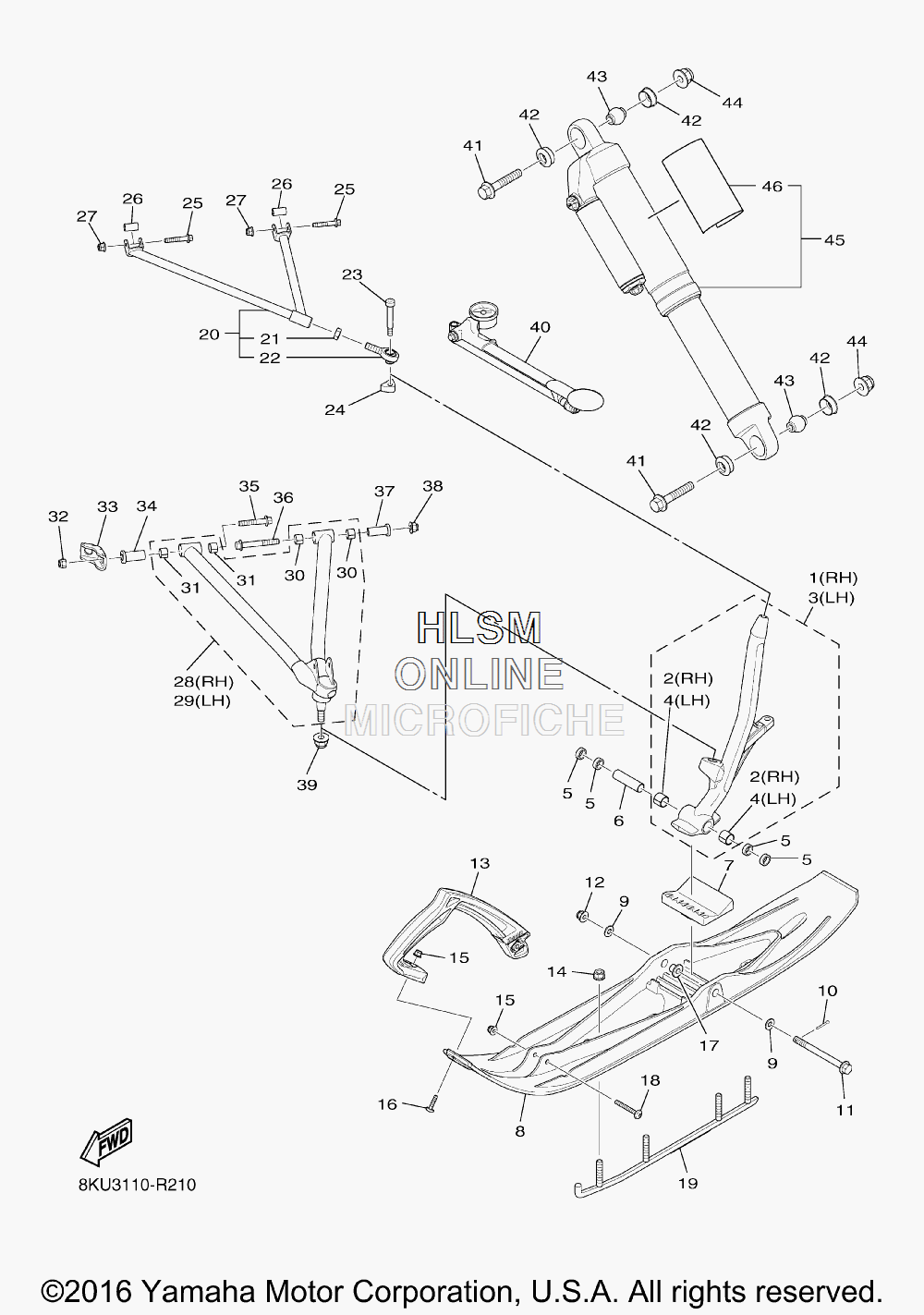

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRVIPER M TX 141 SE - 2016 года выпуска`
-
№АртикулНазвание
-
18KU-F3521-10-00 KNUCKLE, STEERING 2 (VRC1 - VIVID RED)KNUCKLE, STEERING 2 (VRC1 - VIVID RED)
-
18KU-F3521-20-00 KNUCKLE, STEERING 2 (DPBSE - DEEP PURPLISH BLUE)KNUCKLE, STEERING 2 (DPBSE - DEEP PURPLISH BLUE)
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38KU-F3511-10-00 KNUCKLE, STEERING 1 (VRC1 - VIVID RED)KNUCKLE, STEERING 1 (VRC1 - VIVID RED)
-
38KU-F3511-20-00 KNUCKLE, STEERING 1 (DPBSE - DEEP PURPLISH BLUE)KNUCKLE, STEERING 1 (DPBSE - DEEP PURPLISH BLUE)
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
68KU-RA736-00-00 COLLAR, 21COLLAR, 21
-
78KU-F3743-00-00 STOPPER 1STOPPER 1
-
88KU-F3711-00-00 SKI 1SKI 1
-
98JP-RA443-00-00 WASHER, 10.98X28.00X1.6WASHER, 10.98X28.00X1.6
-
108JP-RAK01-00-00 PIN, 1PIN, 1
-
118KU-F3753-00-00 BOLTBOLT
-
128JP-RA359-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
138JP-F3712-10-00 REINFORCEMENT, HEAD (VRC1 - VIVID RED)REINFORCEMENT, HEAD (VRC1 - VIVID RED)
-
138JP-F3712-20-00 REINFORCEMENT, HEAD (DPBSE - DEEP PURPLISH BLUE)REINFORCEMENT, HEAD (DPBSE - DEEP PURPLISH BLUE)
-
148JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
158JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
168JP-RA266-00-00 SCREW, M6X1.0X30SCREW, M6X1.0X30
-
178JP-RA722-00-00 COLLAR, 10COLLAR, 10
-
188JP-RA267-00-00 SCREW, M6X1.0X50SCREW, M6X1.0X50
-
198JP-F3731-00-00 RUNNER 1RUNNER 1
-
208KR-F354A-20-00 ARM, FRONT UPPER LH (VRC1 - VIVID RED)ARM, FRONT UPPER LH (VRC1 - VIVID RED)
-
208KR-F354A-10-00 ARM, FRONT UPPER LH (DPBSE - DEEP PURPLISH BLUE)ARM, FRONT UPPER LH (DPBSE - DEEP PURPLISH BLUE)
-
218KU-F3778-00-00 ...NUT...NUT
-
228KU-F3841-00-00 ...JOINT, UNIVERSAL 1...JOINT, UNIVERSAL 1
-
238KU-F3767-00-00 BOLTBOLT
-
248KU-F3856-00-00 NUTNUT
-
258KG-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
268KG-RA720-00-00 COLLAR, 8COLLAR, 8
-
278KG-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
288KR-F358A-00-00 ARM, FRONT LOWER RH. (VRC1 - VIVID RED)ARM, FRONT LOWER RH. (VRC1 - VIVID RED)
-
288KR-F358A-10-00 ARM, FRONT LOWER RH. (DPBSE - DEEP PURPLISH BLUE)ARM, FRONT LOWER RH. (DPBSE - DEEP PURPLISH BLUE)
-
298KR-F357A-00-00 ARM, FRONT LOWER LH. (VRC1 - VIVID RED)ARM, FRONT LOWER LH. (VRC1 - VIVID RED)
-
298KR-F357A-10-00 ARM, FRONT LOWER LH. (DPBSE - DEEP PURPLISH BLUE)ARM, FRONT LOWER LH. (DPBSE - DEEP PURPLISH BLUE)
-
308JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
318JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
328JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
338JP-F3543-00-00 ARM, 1ARM, 1
-
348JP-RA721-00-00 COLLAR, 9COLLAR, 9
-
358JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
368JP-RA1A4-00-00 BOLT, FLANGE M10X1.25X75BOLT, FLANGE M10X1.25X75
-
378KU-RA719-00-00 COLLAR, 7COLLAR, 7
-
388JP-RA360-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
398JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
408JW-F3703-00-00 ADJUSTERADJUSTER
-
418KG-RA1B9-00-00 BOLT, FLANGE M8X50BOLT, FLANGE M8X50
-
428KG-RA817-00-00 BUSH, 8BUSH, 8
-
438KG-RA724-00-00 COLLAR, 12COLLAR, 12
-
448JP-RA360-10-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
458KR-F330E-00-00 DAMPER ASSYDAMPER ASSY
-
468JW-F151F-00-00 ...LABEL 3...LABEL 3
