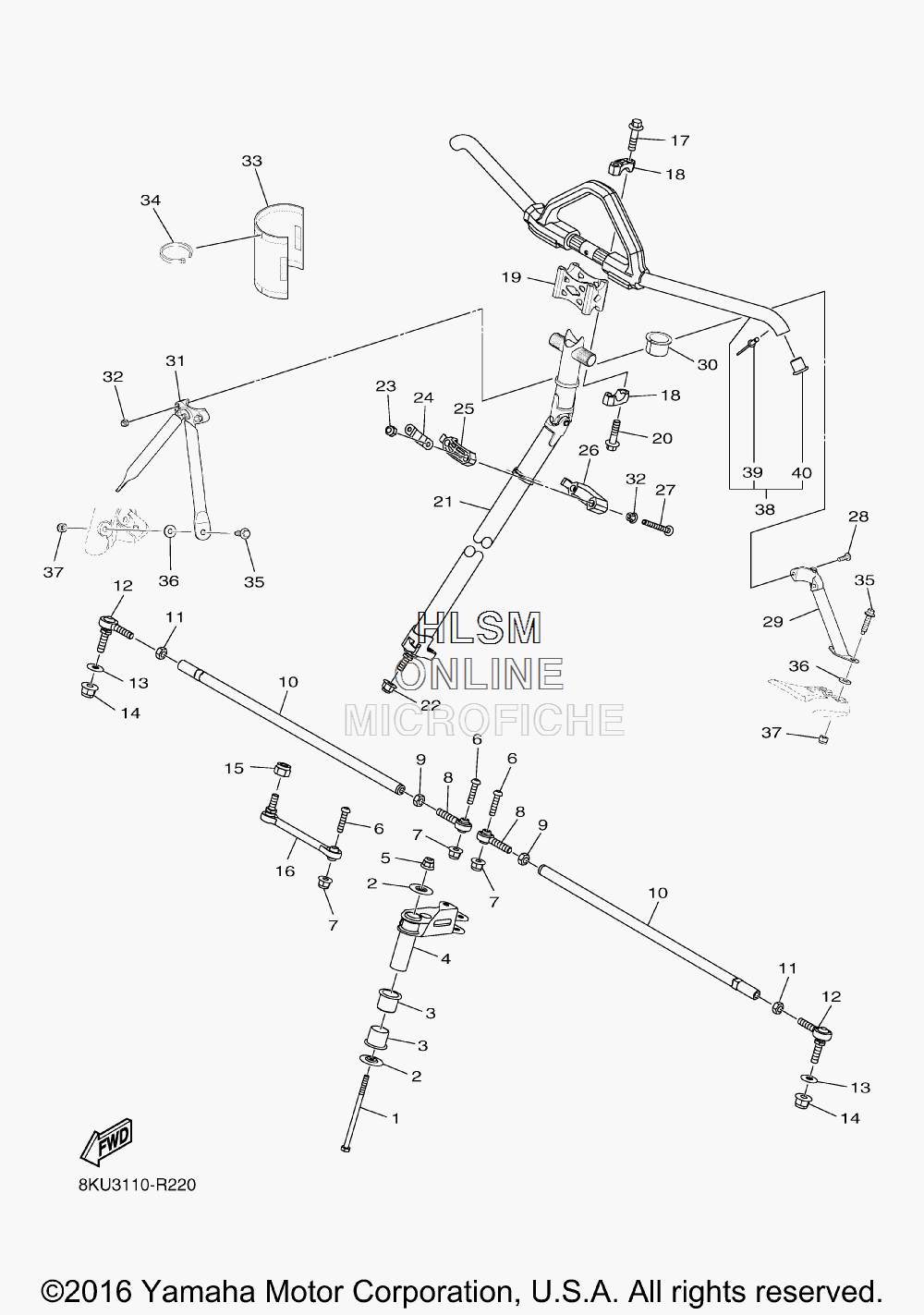

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SRVIPER M TX 141 SE - 2016 года выпуска`
-
№АртикулНазвание
-
18JP-RA1B0-00-00 BOLT, HEX. M6X1X100BOLT, HEX. M6X1X100
-
28JP-RA432-00-00 WASHER, 1WASHER, 1
-
38JP-RA816-00-00 BUSH, 7BUSH, 7
-
48JP-F389G-00-00 ARM, PIVOTARM, PIVOT
-
58JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
68JP-RA274-00-00 SCREW, M8X1.25X37SCREW, M8X1.25X37
-
78JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
88JP-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
98JP-RA369-00-00 NUT, HEX. M10X1.25NUT, HEX. M10X1.25
-
108KR-F3831-00-00 ROD, TIEROD, TIE
-
118JP-RA368-00-00 NUT, HEX. M10-1.25NUT, HEX. M10-1.25
-
128JP-F3847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
138JP-RA454-00-00 WASHER, PLANE M10X20X2.30WASHER, PLANE M10X20X2.30
-
148JP-RA360-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
158JP-RA371-00-00 NUT, HEX. LOCKING M10X1.25NUT, HEX. LOCKING M10X1.25
-
168JP-F3821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
178JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
188JP-F3814-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
198KG-F381B-00-00 JOINTJOINT
-
208JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
218KG-F3813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
228JP-RA378-00-00 NUT, LOCKNUT, LOCK
-
238JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
248JP-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
258KG-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
268KG-F3812-10-00 BEARING, STEERINGBEARING, STEERING
-
278JP-RA299-00-00 SCREW, 10SCREW, 10
-
288JP-RA1B4-10-00 BOLT, FLANGEBOLT, FLANGE
-
298KR-F1957-00-00 BRACKET, STEERING 2BRACKET, STEERING 2
-
308KR-RA816-00-00 BUSH, 7BUSH, 7
-
318KR-F1947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
328JP-RA379-00-00 NUT, LOCK 1NUT, LOCK 1
-
338KR-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
348JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
358KU-RA187-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
368KR-RA466-00-00 WASHER, 9WASHER, 9
-
378JP-RA372-00-00 NUT, HEX. LOCKING M8X1.25NUT, HEX. LOCKING M8X1.25
-
388JR-F6111-10-00 HANDLEBARHANDLEBAR
-
398JP-RA517-00-00 ...RIVET, 8...RIVET, 8
-
408JR-F3856-00-00 ...NUT...NUT
