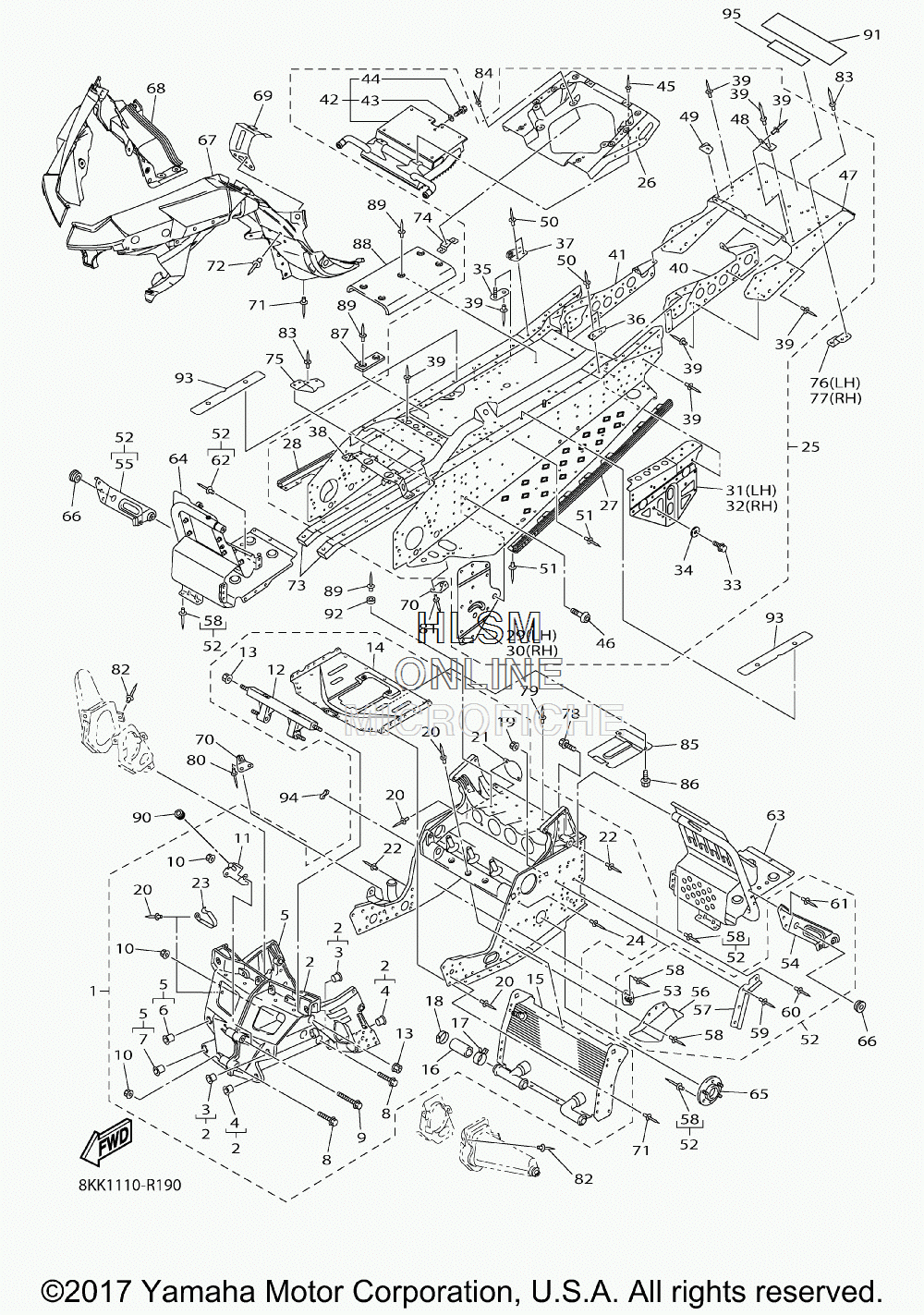

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VECTOR XTX - 2016 года выпуска
-
№АртикулНазвание
-
18JU-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-13-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-15-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118HG-2836E-00-00 ...BRACKET 2...BRACKET 2
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
148FR-2193A-01-00 ...PROTECTOR...PROTECTOR
-
158JA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
168FA-12551-00-00 ...HOSE 7...HOSE 7
-
1790467-28046-00 ...CLIP...CLIP
-
1890450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1995607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2090267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW...RIVET, BLIND (4.7X16.4 YELLOW
-
218ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2290267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
2390462-08083-00 ...CLAMP...CLAMP
-
2490267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
258KK-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
278FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
288FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
298HN-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
308HN-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
318KK-21944-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
328KK-21954-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
3395814-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3490201-10038-00 ...WASHER, PLATE...WASHER, PLATE
-
358CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
368FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
378FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
388ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3990267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
408FT-21963-01-00 ...PATCH 3...PATCH 3
-
418FT-21964-01-00 ...PATCH 4...PATCH 4
-
428FT-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4390210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
4495812-06012-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4590267-48095-00 ...RIVET,BLIND (4.8X12.6 SILVER)...RIVET,BLIND (4.8X12.6 SILVER)
-
4692012-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
478KK-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
488FG-21988-00-00 ...PATCH 8...PATCH 8
-
498FG-21989-00-00 ...PATCH 9...PATCH 9
-
5090267-47197-00 ...RIVET, BLIND (4.7X19.5 SILVER)...RIVET, BLIND (4.7X19.5 SILVER)
-
5190267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
528JU-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
538CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
548JA-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
558JA-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
568FP-2198G-01-00 ...COVER 2...COVER 2
-
578FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
5890267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
5990267-48018-00 ...RIVET, BLIND (4.8X18.6 BLACK)...RIVET, BLIND (4.8X18.6 BLACK)
-
6090267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
6190267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
6290267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
638JA-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
648HG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
658EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6690480-13567-00 GROMMETGROMMET
-
678GM-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
688FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
698FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
708FA-2196F-00-00 BRACKET 3BRACKET 3
-
7190267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7290267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
738FT-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
748FT-2197N-00-00 BRACKET 7BRACKET 7
-
758FU-2197N-00-00 BRACKET 7BRACKET 7
-
768FT-2196F-00-00 BRACKET 3BRACKET 3
-
778FT-2196G-00-00 BRACKET 4BRACKET 4
-
7895822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7990267-48169-00 RIVET, BLIND (4.8X14.1 BLACK)RIVET, BLIND (4.8X14.1 BLACK)
-
8090267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
8190267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
8290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
8390267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
858FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8692012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
878FA-21998-00-00 SPACERSPACER
-
888FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8990267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
9090480-12053-00 GROMMETGROMMET
-
918HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
928HG-24768-00-00 STOPPERSTOPPER
-
938HG-2214F-00-00 DAMPER 1DAMPER 1
-
948FA-7717H-00-00 TAPE 4TAPE 4
-
958JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
