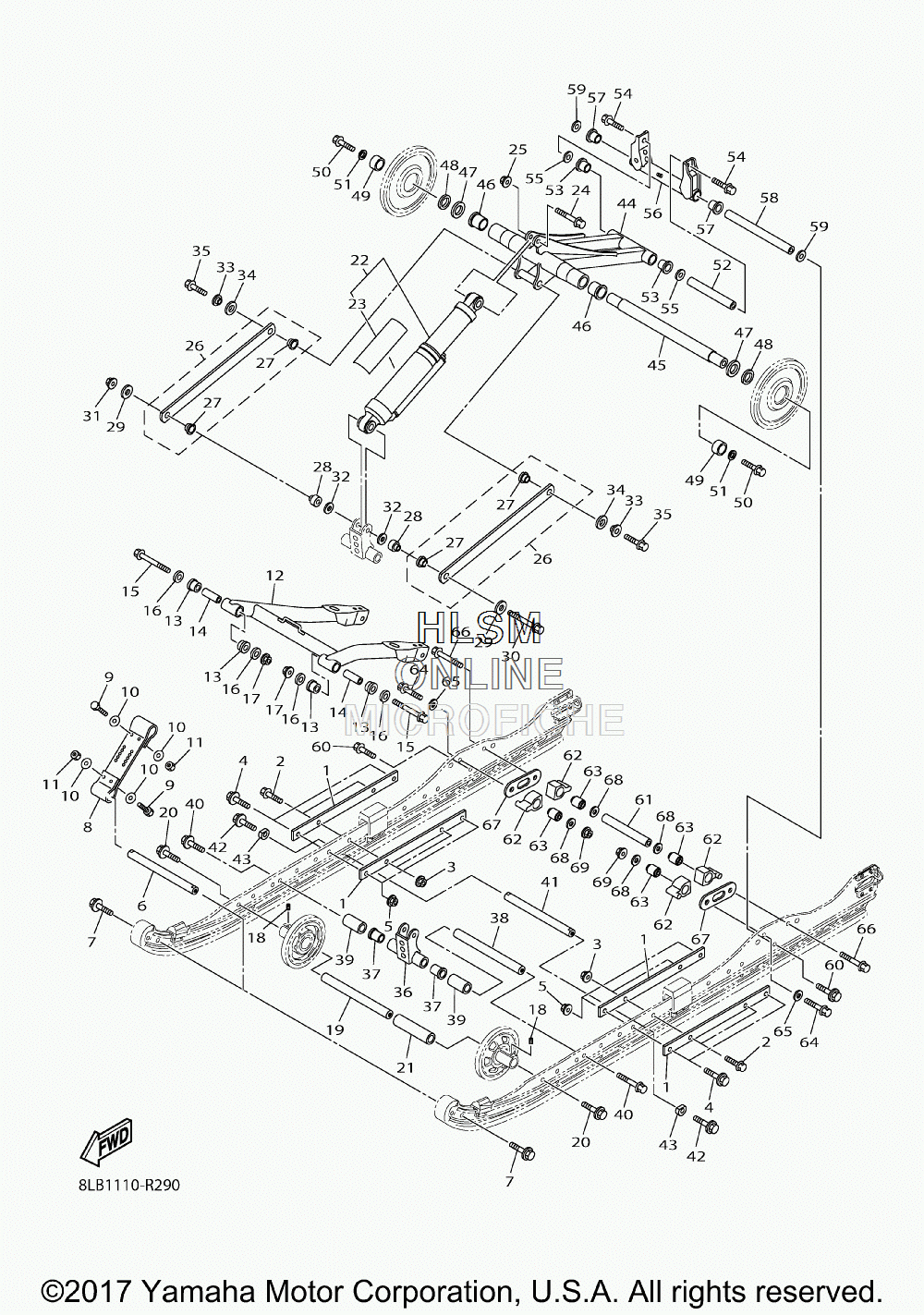

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha RS VECTOR XTX - 2016 года выпуска
-
№АртикулНазвание
-
18KL-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
295812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
395602-08200-00 NUT, U FLANGENUT, U FLANGE
-
495812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
68GL-47486-00-00 SHAFT 4SHAFT 4
-
790105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
88KM-47495-00-00 STOPPER 1STOPPER 1
-
997002-06025-00 BOLTBOLT
-
1090201-06081-00 WASHER, PLATEWASHER, PLATE
-
1195702-06300-00 NUT, NYLONNUT, NYLON
-
128KM-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
1390381-18068-00 BUSH, SOLIDBUSH, SOLID
-
148GL-47465-00-00 SHAFT 1SHAFT 1
-
1590105-10202-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-10046-00 WASHER, PLATEWASHER, PLATE
-
1795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1890113-06039-00 BOLT, SETBOLT, SET
-
198KL-47485-00-00 SHAFT 3SHAFT 3
-
2090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2190387-20038-00 COLLARCOLLAR
-
228KM-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
238KM-22259-00-00 ...LABEL, WARNING...LABEL, WARNING
-
2490105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
2595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
268KM-47490-00-00 RELAY ROD ASSYRELAY ROD ASSY
-
2790381-16002-00 ...BUSH, SOLID...BUSH, SOLID
-
288HR-47366-00-00 COLLAR 2COLLAR 2
-
2990201-16027-00 WASHER, PLATEWASHER, PLATE
-
3090105-10375-00 BOLT, FLANGEBOLT, FLANGE
-
3195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3290201-10052-00 WASHER, PLATEWASHER, PLATE
-
338HR-47366-10-00 COLLAR 2COLLAR 2
-
3490201-16027-00 WASHER, PLATEWASHER, PLATE
-
3590105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
368HR-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
3790386-20001-00 BUSHBUSH
-
388KL-47487-00-00 SHAFT 5SHAFT 5
-
3990387-20037-00 COLLARCOLLAR
-
4090105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
418GL-47486-00-00 SHAFT 4SHAFT 4
-
4290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
438GL-47341-00-00 SPACERSPACER
-
448KM-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
458FU-47475-00-00 SHAFT 2SHAFT 2
-
4690381-28108-00 BUSH, SOLIDBUSH, SOLID
-
4790201-251G8-00 WASHER, PLATEWASHER, PLATE
-
4890201-250T6-00 WASHER, PLATEWASHER, PLATE
-
4990387-25005-00 COLLARCOLLAR
-
5090109-10030-00 BOLTBOLT
-
5190201-10039-00 WASHER, PLATEWASHER, PLATE
-
528KM-47488-20-00 SHAFT 6SHAFT 6
-
5390386-19160-00 BUSHBUSH
-
5490105-10452-00 BOLT, FLANGEBOLT, FLANGE
-
5590201-10043-00 WASHER, PLATEWASHER, PLATE
-
568KM-47417-00-00 BRACKET 3BRACKET 3
-
5790386-19160-00 BUSHBUSH
-
588FU-47485-00-00 SHAFT 3SHAFT 3
-
5990201-10076-00 WASHER, PLATEWASHER, PLATE
-
6090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
618KM-47488-00-00 SHAFT 6SHAFT 6
-
628KM-47496-00-00 STOPPER 2STOPPER 2
-
634GY-22216-20-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
6490105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
6590201-10043-00 WASHER, PLATEWASHER, PLATE
-
6690105-10029-00 BOLT, FLANGEBOLT, FLANGE
-
678KL-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
6890201-10076-00 WASHER, PLATEWASHER, PLATE
-
6995602-10200-00 NUT, U FLANGENUT, U FLANGE
