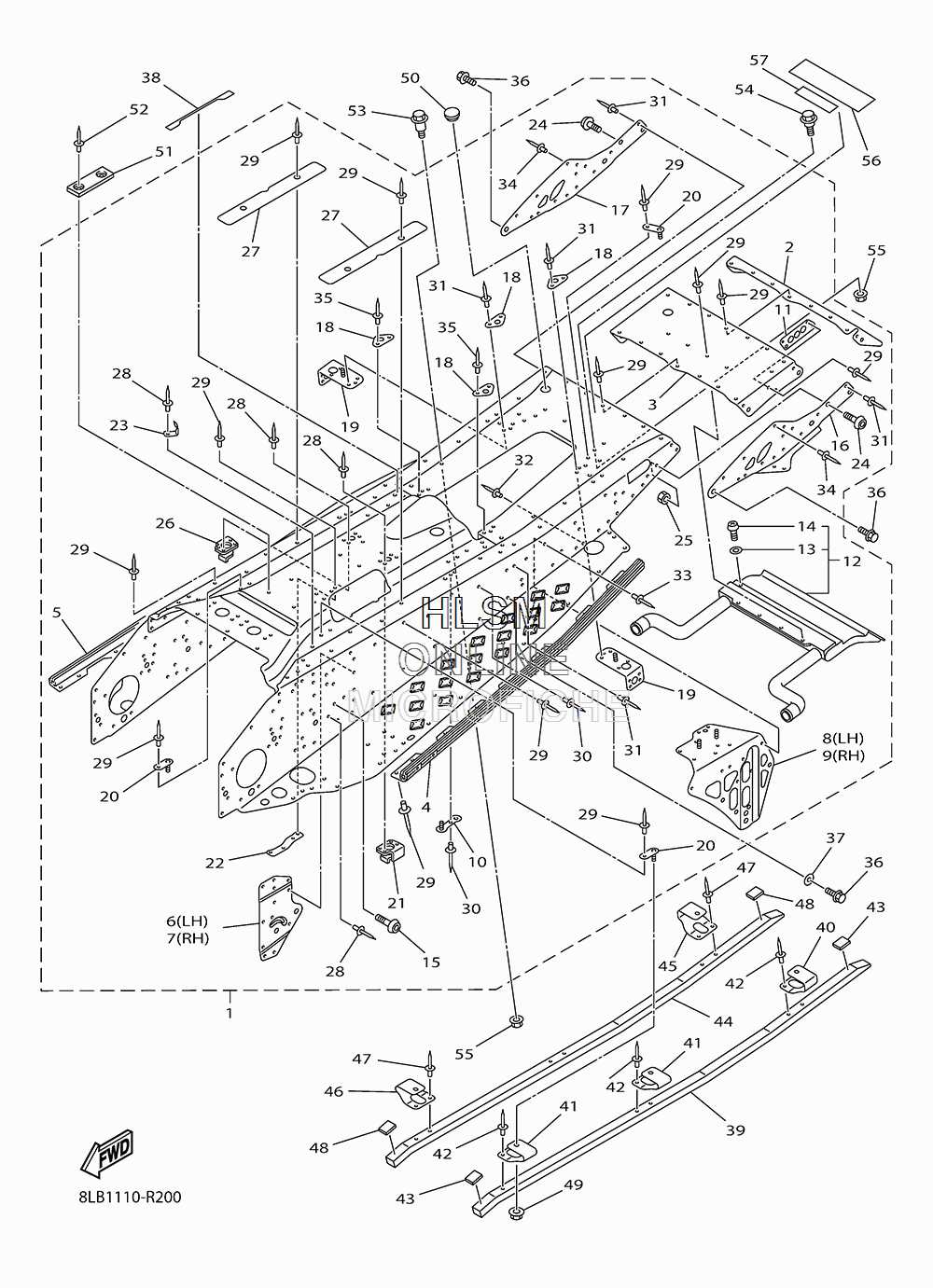

TUNNEL EXTENSION ASSEMBLY для Yamaha APEX XTX 1.75 LE - 2016 года выпуска`
-
№АртикулНазвание
-
18KL-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28HG-21923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
38KL-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
48FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
58FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
68HN-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
78HN-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
88HN-21944-00-00 ...BRACKET, REAR TRACK SUSPENSION 1...BRACKET, REAR TRACK SUSPENSION 1
-
98HN-21954-00-00 ...BRACKET, REAR TRACK SUSPENSION 2...BRACKET, REAR TRACK SUSPENSION 2
-
108HG-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
118KL-21961-00-00 ...PATCH 1...PATCH 1
-
128KL-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
1390210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
1498502-06012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
1592012-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
168HG-21928-00-00 ...REINF, SUB FRAME 1...REINF, SUB FRAME 1
-
178HG-21938-00-00 ...REINF, SUB FRAME 2...REINF, SUB FRAME 2
-
188HG-22168-00-00 ...PATCH...PATCH
-
198HG-2162G-00-00 ...PLATE 1...PLATE 1
-
208HG-2251A-00-00 ...BRACKET 9...BRACKET 9
-
218HG-14791-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
228HG-21961-00-00 ...PATCH 1...PATCH 1
-
2390465-08370-00 ...CLAMP...CLAMP
-
2492012-08020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2595702-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
268HG-14792-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
278HG-2214F-00-00 ...DAMPER 1...DAMPER 1
-
2890267-47195-00 ...RIVET, BLIND (47X164 YELLOW)...RIVET, BLIND (47X164 YELLOW)
-
2990267-48023-00 ...RIVET, BLIND (48X121 YELLOW)...RIVET, BLIND (48X121 YELLOW)
-
3090267-48177-00 ...RIVET, BLIND (48X14 YELLOW)...RIVET, BLIND (48X14 YELLOW)
-
3190267-48016-00 ...RIVET, BLIND (48X164 YELLOW)...RIVET, BLIND (48X164 YELLOW)
-
3290267-48010-00 ...RIVET, BLIND (48X12 YELLOW)...RIVET, BLIND (48X12 YELLOW)
-
3390267-48083-00 ...RIVET, BLIND (48X152 SILVER)...RIVET, BLIND (48X152 SILVER)
-
3490267-48015-00 ...RIVET, BLIND...RIVET, BLIND
-
3590267-48176-00 ...RIVET, BLIND (48X17 YELLOW)...RIVET, BLIND (48X17 YELLOW)
-
3695812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-10038-00 WASHER, PLATEWASHER, PLATE
-
388HG-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
398KL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
408HG-2196G-00-00 BRACKET 4BRACKET 4
-
418HG-2197N-00-00 BRACKET 7BRACKET 7
-
4290267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
438HG-21852-00-00 DAMPERDAMPER
-
448KL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
458HG-2196G-00-00 BRACKET 4BRACKET 4
-
468HG-2197N-00-00 BRACKET 7BRACKET 7
-
4790267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
488HG-21852-00-00 DAMPERDAMPER
-
4995602-08200-00 NUT, U FLANGENUT, U FLANGE
-
5090338-20007-00 PLUGPLUG
-
518FA-21998-00-00 SPACERSPACER
-
5290267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
5390109-06241-00 BOLTBOLT
-
5490109-06220-00 BOLTBOLT
-
5595702-06500-00 NUT, FLANGENUT, FLANGE
-
568HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
578JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
