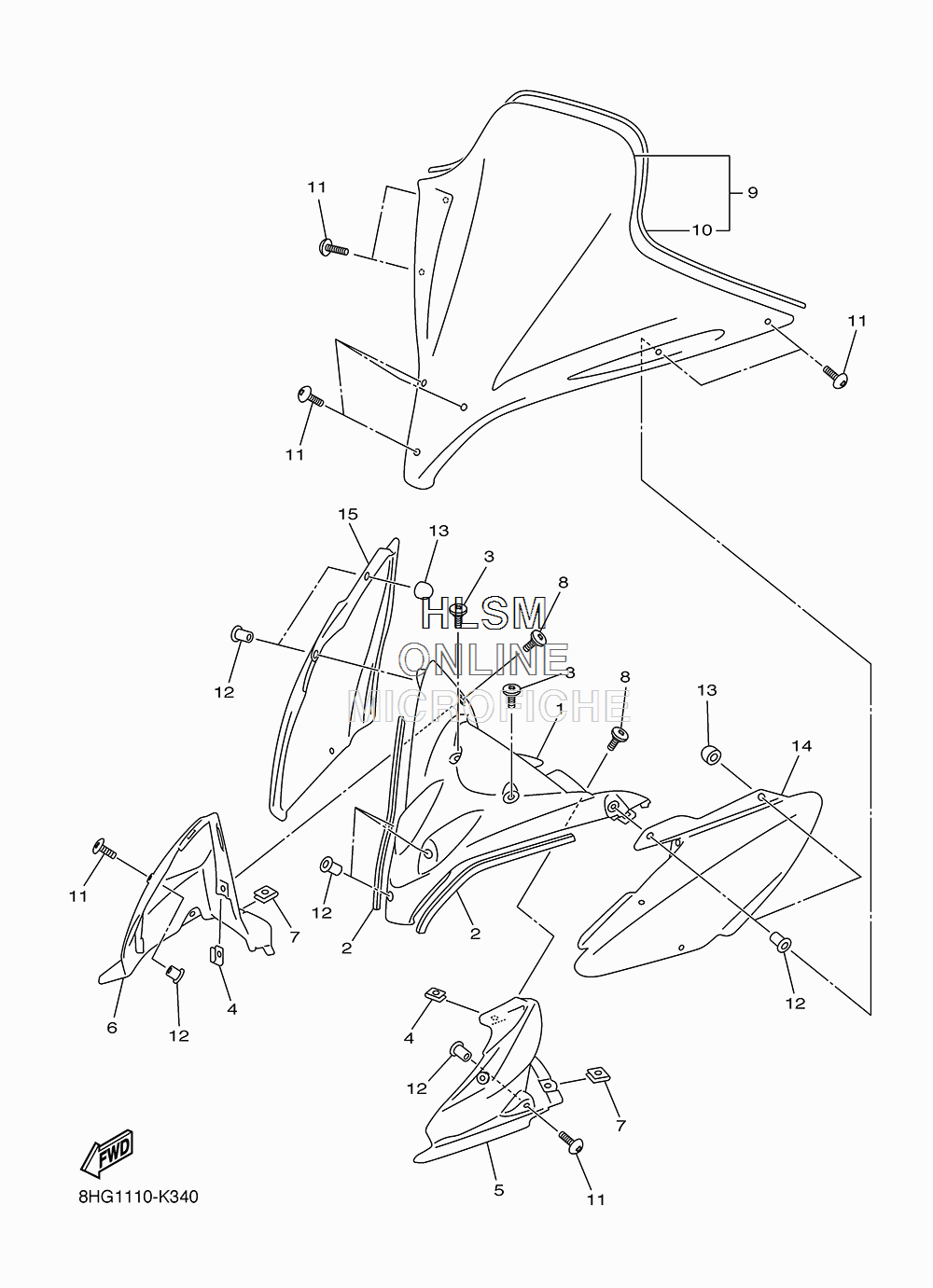

HOOD - WINDSHIELD ASSY для Yamaha APEX XTX 1.75 LE - 2016 года выпуска`
-
№АртикулНазвание
-
18HG-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28HG-77238-00-00 DAMPERDAMPER
-
390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
490183-06100-00 NUT, SPRINGNUT, SPRING
-
58HG-77185-00-00 PLATE 1PLATE 1
-
68HG-77186-00-00 PLATE 2PLATE 2
-
75PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
890154-06009-00 SCREW, BINDINGSCREW, BINDING
-
98HG-K7210-10-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
108HG-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
1190150-05024-00 SCREW PLASTICSCREW PLASTIC
-
1290179-05271-00 NUTNUT
-
138HG-78139-00-00 CAP, ENDCAP, END
-
148HG-K723A-00-00 FAIRING 2FAIRING 2
-
158HG-K723B-00-00 FAIRING 3FAIRING 3
