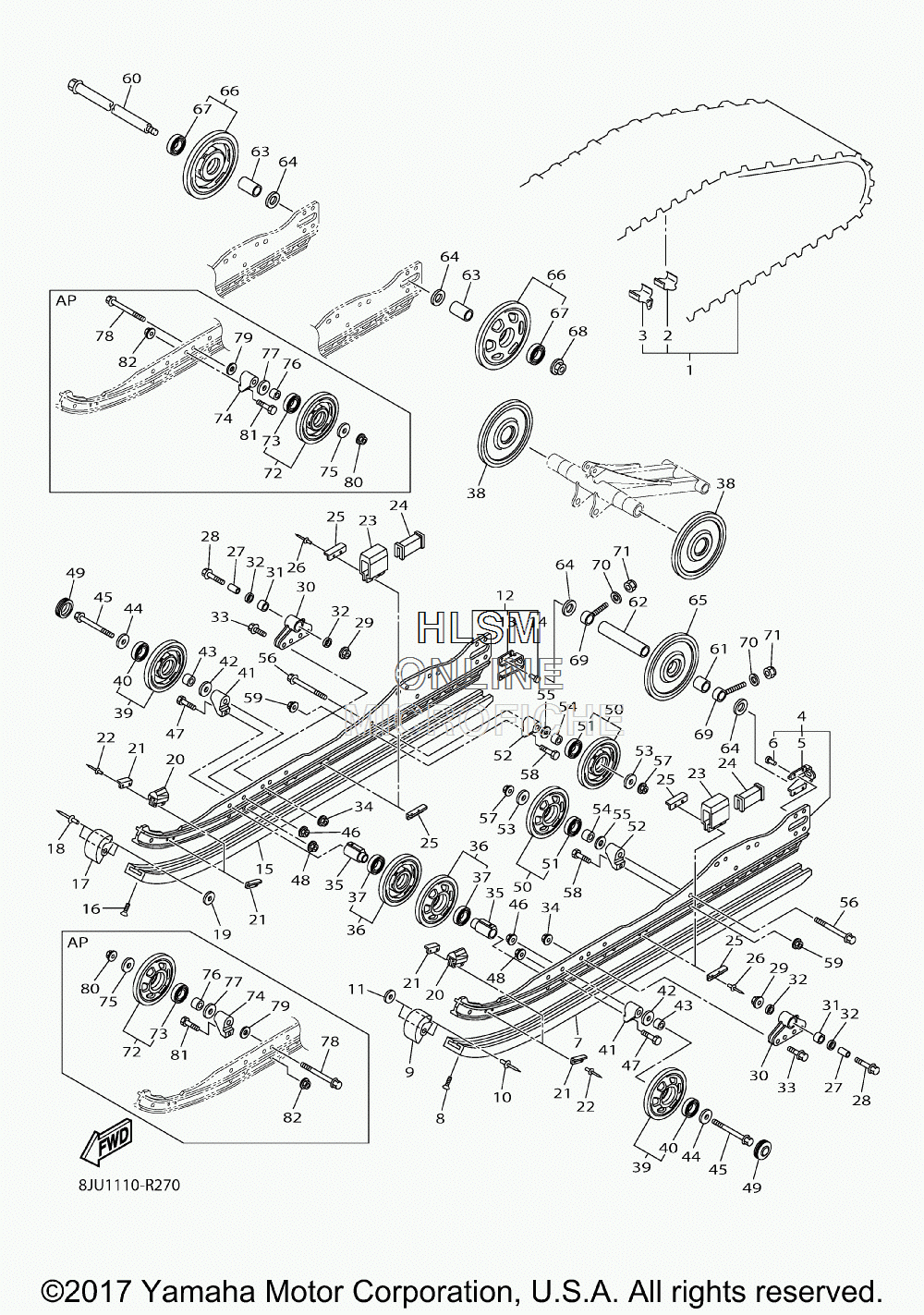

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX LE - 2016 года выпуска
-
№АртикулНазвание
-
18KM-47110-00-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48KM-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
58HX-4741B-00-00 ...BRACKET...BRACKET
-
68HX-47468-00-00 ...RIVET...RIVET
-
78JD-47421-01-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128KM-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
138HX-4741B-00-00 ...BRACKET...BRACKET
-
148HX-47468-00-00 ...RIVET...RIVET
-
158JD-47421-01-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
1690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
178GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
208ES-47456-00-00 DAMPER 1DAMPER 1
-
218K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
2290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
238GL-47457-00-00 DAMPER 2DAMPER 2
-
248GL-47573-00-00 SPACERSPACER
-
258AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
2690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
2790387-1012A-00 COLLARCOLLAR
-
2890105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
2995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
308KM-47415-00-00 BRACKET 1BRACKET 1
-
3193315-31758-00 BEARINGBEARING
-
3293109-17071-00 OIL SEALOIL SEAL
-
3395812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
358ES-47319-10-00 COLLARCOLLAR
-
368HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3793306-00507-00 ...BEARING...BEARING
-
388CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
398HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4093306-00507-00 ...BEARING...BEARING
-
418CM-47419-10-00 BRACKET 7BRACKET 7
-
4290201-10714-00 WASHER, PLATEWASHER, PLATE
-
4390387-10031-00 COLLARCOLLAR
-
4490201-101U2-00 WASHER, PLATEWASHER, PLATE
-
4590105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4790101-08063-00 BOLTBOLT
-
4895602-08200-00 NUT, U FLANGENUT, U FLANGE
-
498HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
508HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5193306-00507-00 ...BEARING...BEARING
-
528CM-47419-10-00 BRACKET 7BRACKET 7
-
5390201-10714-00 WASHER, PLATEWASHER, PLATE
-
5490387-10031-00 COLLARCOLLAR
-
5590201-101U2-00 WASHER, PLATEWASHER, PLATE
-
5690105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
5795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
5890101-08063-00 BOLTBOLT
-
5995602-08200-00 NUT, U FLANGENUT, U FLANGE
-
608L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
6190387-20015-00 COLLARCOLLAR
-
6290387-20016-00 COLLARCOLLAR
-
6390387-20039-00 COLLARCOLLAR
-
6490201-205R6-00 WASHER, PLATEWASHER, PLATE
-
658CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
668HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6793306-00444-00 ...BEARING...BEARING
-
6895602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
698DM-47479-00-00 COLLAR 3COLLAR 3
-
7092902-10600-00 WASHER, PLATEWASHER, PLATE
-
7195702-10300-00 NUT, NYLONNUT, NYLON
-
728HF-47310-10-00 SUSPENSION WHEEL ASSY (OPT)SUSPENSION WHEEL ASSY (OPT)
-
7393306-00507-00 ...BEARING (OPT)...BEARING (OPT)
-
748CM-47419-30-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
7590201-10714-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
7690387-10031-00 COLLAR (OPT)COLLAR (OPT)
-
7790201-101U2-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
7890105-10135-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
7990201-10N12-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
8095602-10200-00 NUT, U FLANGE (OPT)NUT, U FLANGE (OPT)
-
8190101-08063-00 BOLT (OPT)BOLT (OPT)
-
8295602-08200-00 NUT, U FLANGE (OPT)NUT, U FLANGE (OPT)
