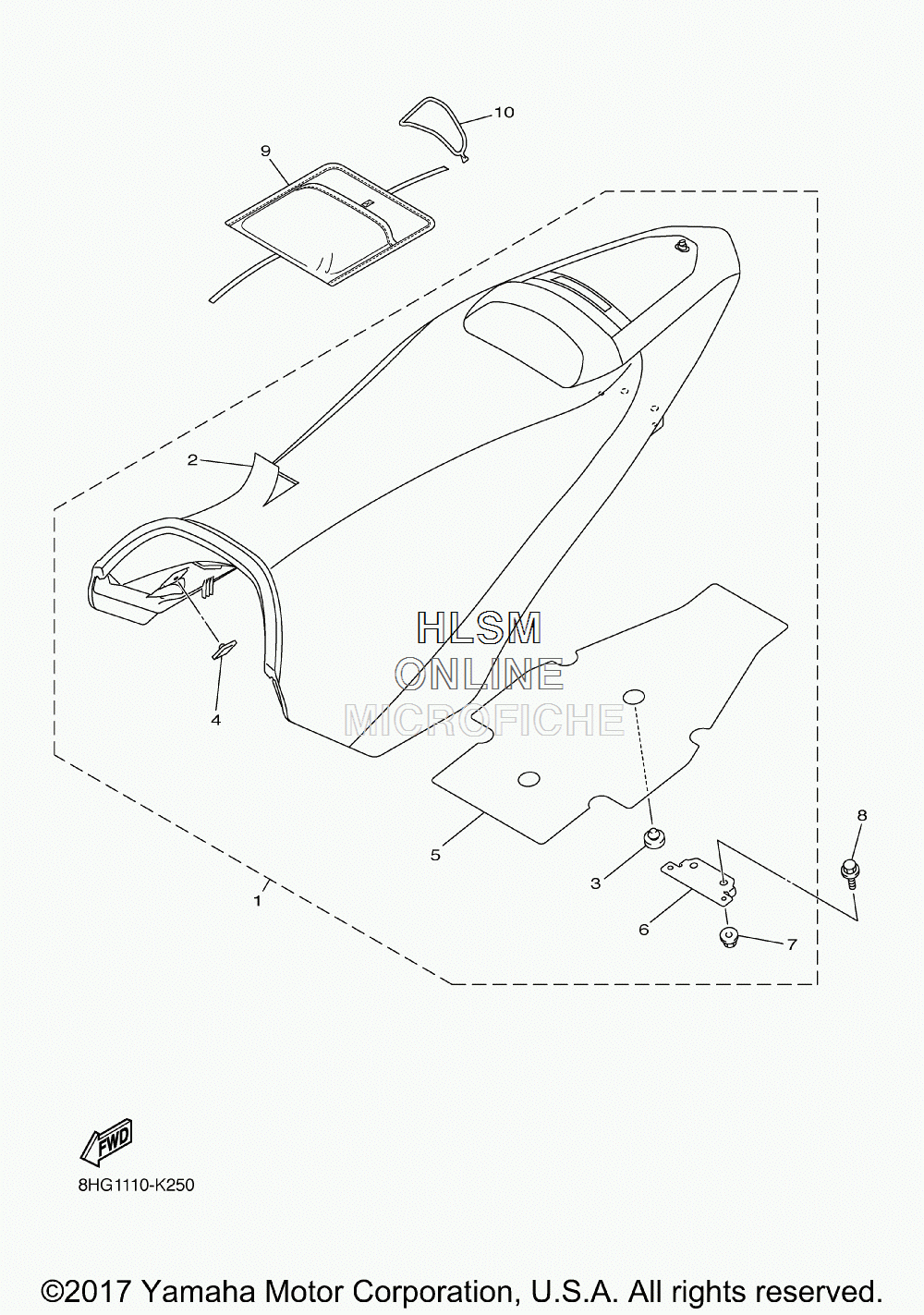

SEAT ASSY для Yamaha APEX LE - 2016 года выпуска`
-
№АртикулНазвание
-
18HG-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28HG-2470F-10-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
38FA-24768-00-00 ...STOPPER...STOPPER
-
4509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
58HG-22333-00-00 ...SEAT, PROTECTER...SEAT, PROTECTER
-
68HG-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
795602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
895812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
98KM-28100-00-00 TOOL KITTOOL KIT
-
103YX-21376-00-00 BAND, TOOLBAND, TOOL
