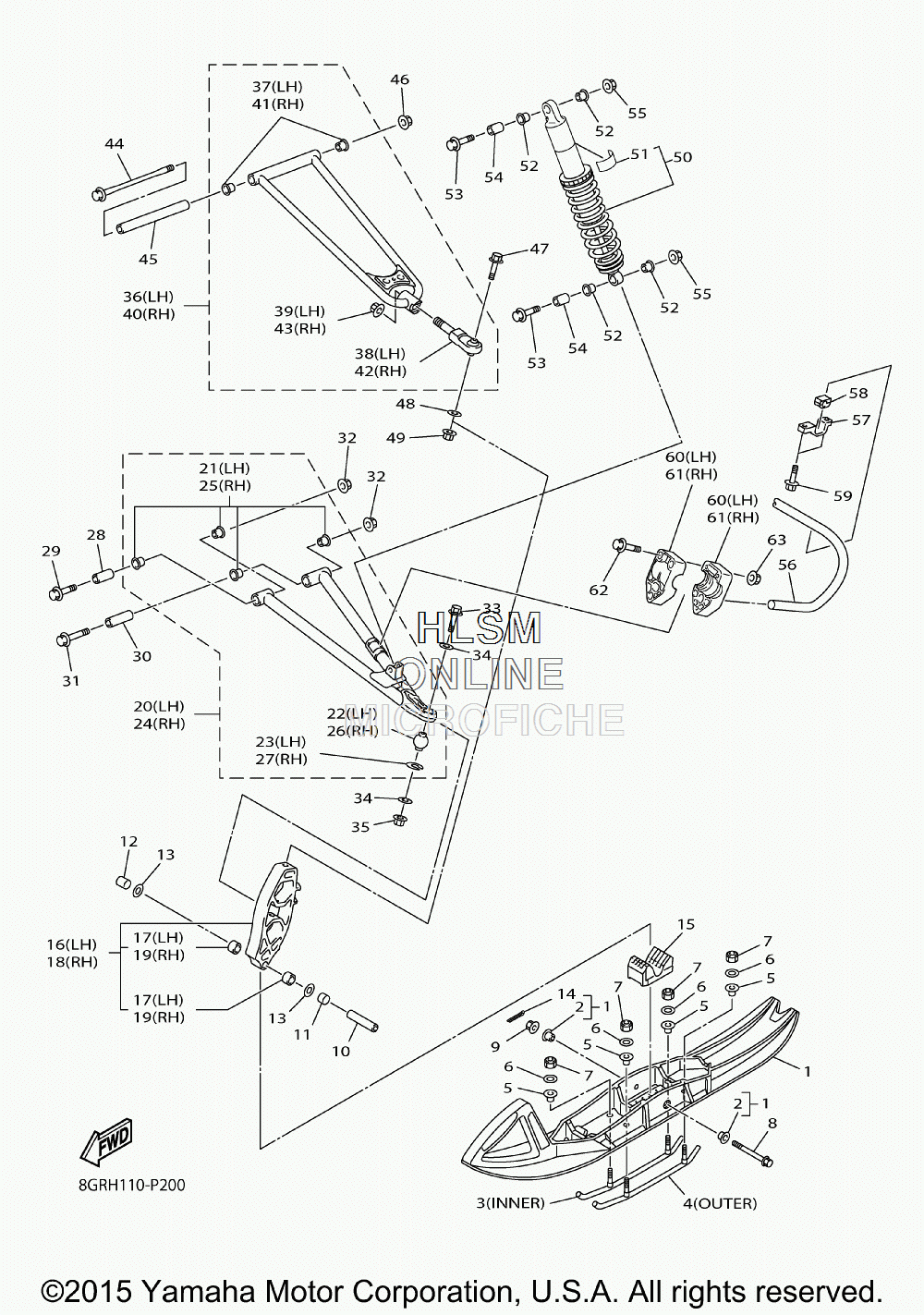

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VENTURE MULTIPURPOSE - 2015 года выпуска
-
№АртикулНазвание
-
18HW-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
28JH-F3754-00-00 ...COLLAR 1...COLLAR 1
-
38JH-F3731-00-00 RUNNER 1RUNNER 1
-
48JH-F3732-00-00 RUNNER 2RUNNER 2
-
58JH-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68JH-F3738-00-00 WASHER 2WASHER 2
-
78JH-F3778-00-00 NUTNUT
-
890105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1090387-1012H-00 COLLARCOLLAR
-
1190387-16024-00 COLLARCOLLAR
-
1290387-16018-00 COLLARCOLLAR
-
1390201-16022-00 WASHER, PLATEWASHER, PLATE
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158GK-23743-00-00 STOPPER 1STOPPER 1
-
168GK-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1790384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
188GK-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1990384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
208GK-23570-C0-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2190381-16003-00 ...BUSH, SOLID...BUSH, SOLID
-
228GK-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
2399009-35700-00 ...CIRCLIP...CIRCLIP
-
248GK-23580-C0-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2590381-16003-00 ...BUSH, SOLID...BUSH, SOLID
-
268GK-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
2799009-35700-00 ...CIRCLIP...CIRCLIP
-
2890387-10093-00 COLLARCOLLAR
-
2990105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3090387-10074-00 COLLARCOLLAR
-
3190105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
3295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
3390105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3490201-10051-00 WASHER, PLATEWASHER, PLATE
-
3595602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
368GK-23540-C0-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3790381-15003-00 ...BUSH, SOLID...BUSH, SOLID
-
388GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
3995602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
408GK-23550-C0-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
4190381-15003-00 ...BUSH, SOLID...BUSH, SOLID
-
428GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4395602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4490105-10213-00 BOLT, FLANGEBOLT, FLANGE
-
4590387-10073-00 COLLARCOLLAR
-
4695602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
4791312-10045-00 BOLTBOLT
-
4890201-10052-00 WASHER, PLATEWASHER, PLATE
-
4995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
508GR-2376A-30-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
514AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
5290381-14101-00 BUSH, SOLIDBUSH, SOLID
-
5395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5490387-105G5-00 COLLARCOLLAR
-
5595602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
568GK-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
578GK-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
588GK-2386G-10-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
5995812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
608GK-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
618GK-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
6295812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
6395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
