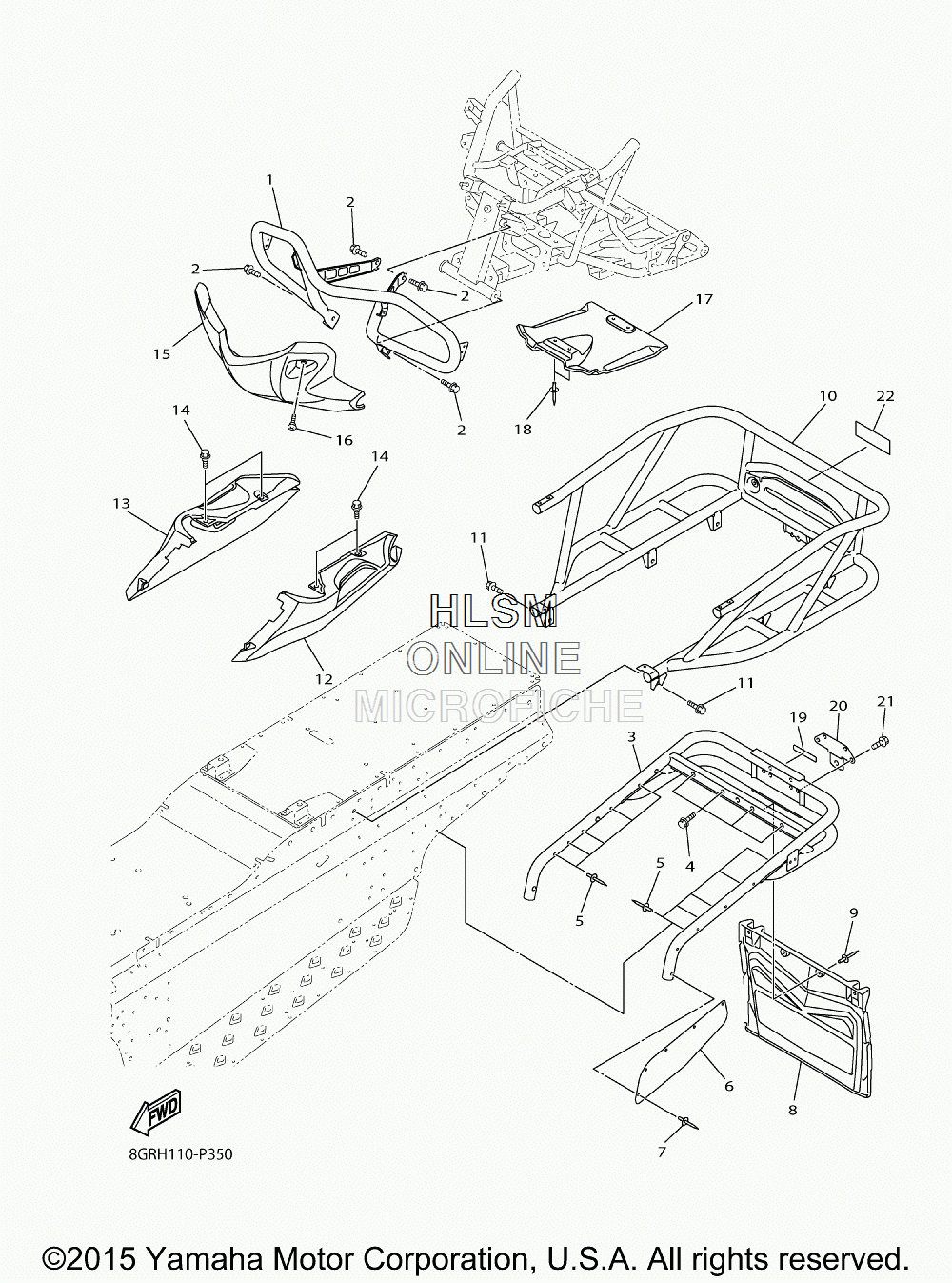

BUMPER - FRONT AND REAR для Yamaha VENTURE MULTIPURPOSE - 2015 года выпуска`
-
№АртикулНазвание
-
18GR-77511-10-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38GJ-77541-20-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
68GJ-77595-00-00 FLAPFLAP
-
790267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
88GW-K7595-00-00 FLAPFLAP
-
990267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
108GJ-77540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
1195822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
128GJ-77563-01-00 COVER, 3COVER, 3
-
138GJ-77564-01-00 COVER, 4COVER, 4
-
1490109-06220-00 BOLTBOLT
-
158GR-77555-00-00 PROTECTOR 5PROTECTOR 5
-
1690149-06263-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
178GR-77556-00-00 PROTECTOR 6PROTECTOR 6
-
1890267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
198GS-2817S-E0-00 LABEL, PULLING LOAD LIMITLABEL, PULLING LOAD LIMIT
-
2084R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
2195827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
228JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
