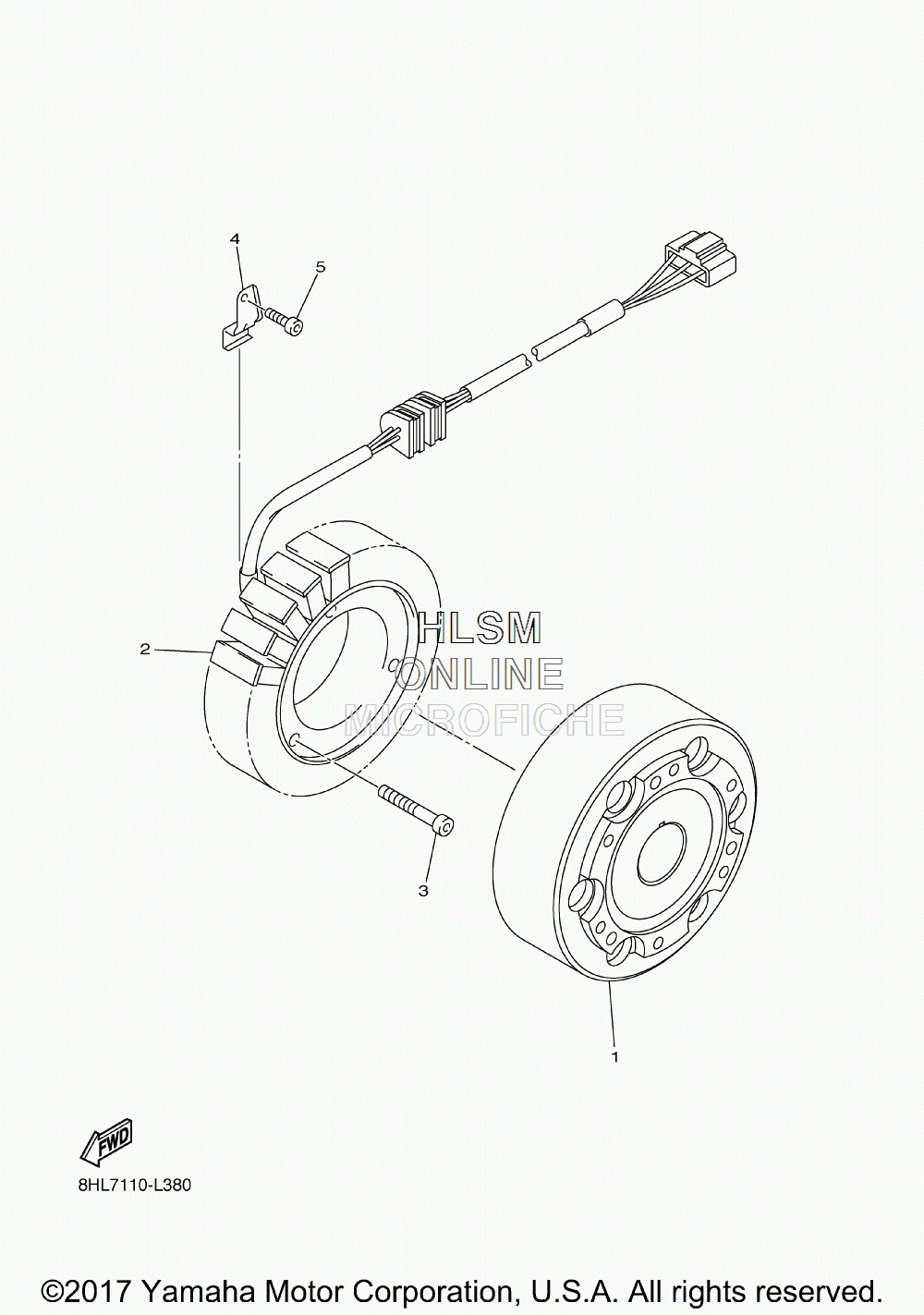

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha SRVIPER X TX SE - 2015 года выпуска`
-
№АртикулНазвание
-
18HU-81450-00-00 ROTOR ASSYROTOR ASSY
-
28HU-81410-00-00 STATOR ASSYSTATOR ASSY
-
390110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
48FA-15113-00-00 PLATEPLATE
-
590110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
