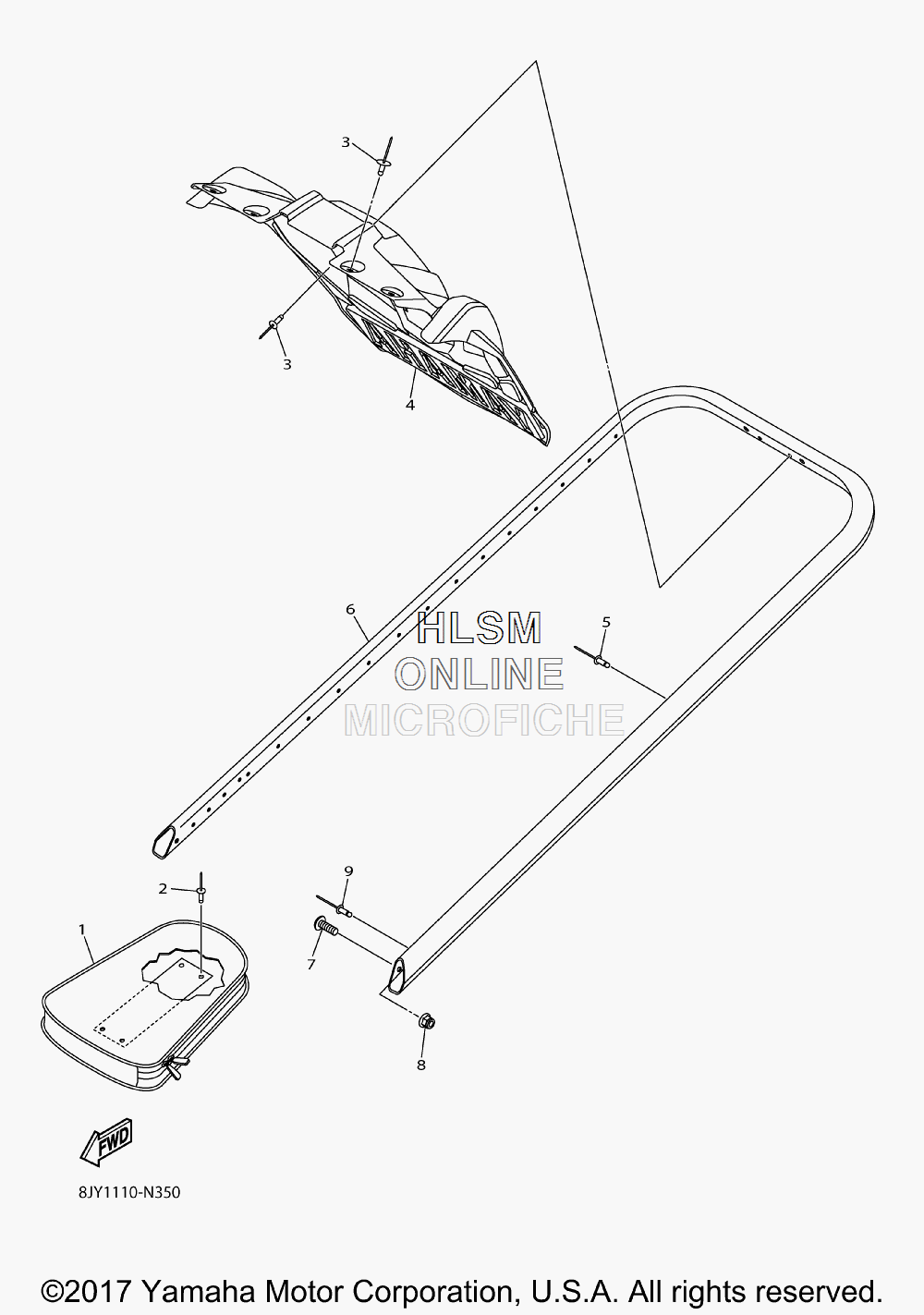

BUMPER - FRONT AND REAR для Yamaha SRVIPER X TX SE - 2015 года выпуска`
-
№АртикулНазвание
-
18JW-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
28JP-RA518-00-00 RIVET, 9RIVET, 9
-
38JP-RA524-00-00 RIVET, 15RIVET, 15
-
48JP-K7595-00-00 FLAPFLAP
-
58JP-RA518-00-00 RIVET, 9RIVET, 9
-
68JY-K7541-00-00 BUMPER, REAR 1 (DPBSE - DEEP PURPLISH BLUE)BUMPER, REAR 1 (DPBSE - DEEP PURPLISH BLUE)
-
68JX-K7541-20-00 BUMPER, REAR 1 (VRC1 - VIVID RED)BUMPER, REAR 1 (VRC1 - VIVID RED)
-
78JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
88JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
98JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
