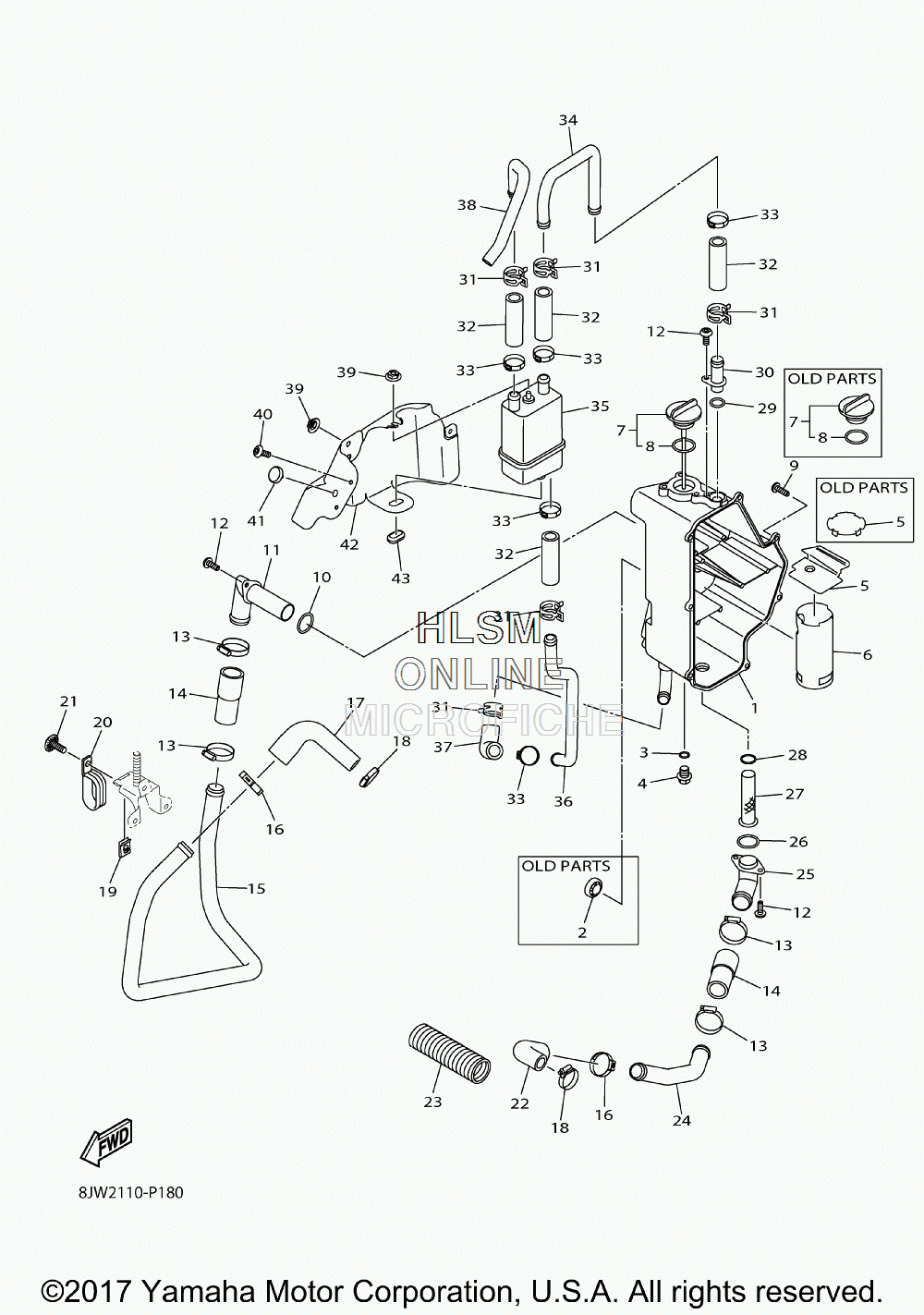

OIL TANK ASSY для Yamaha SRVIPER R TX SE - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-F1751-00-00 TANK, OIL (UP TO SERIAL 8JW20-000397)TANK, OIL (UP TO SERIAL 8JW20-000397)
-
18JP-F1751-10-00 TANK, OIL (AFTER SERIAL 8JW20-000398)TANK, OIL (AFTER SERIAL 8JW20-000398)
-
28JP-F1764-00-00 LENS, LEVEL GAUGE (UP TO SERIAL 8JW20-000397)LENS, LEVEL GAUGE (UP TO SERIAL 8JW20-000397)
-
38JP-RAF05-00-00 O-RING, 3O-RING, 3
-
48JP-F15A1-00-00 PLUG, DRAINPLUG, DRAIN
-
58KG-F2944-00-00 PLATE, BAFFLE (AFTER SERIAL 8JW20-000398)PLATE, BAFFLE (AFTER SERIAL 8JW20-000398)
-
58JP-F2117-00-00 CAP (UP TO SERIAL 8JW20-000397)CAP (UP TO SERIAL 8JW20-000397)
-
68JP-F4319-00-00 PIPE, OILPIPE, OIL
-
78KG-E5362-00-00 PLUG, OIL LEVEL (AFTER SERIAL 8JW20-000398)PLUG, OIL LEVEL (AFTER SERIAL 8JW20-000398)
-
78JP-F1770-00-00 OIL TANK CAP ASSY (UP TO SERIAL 8JW20-000397)OIL TANK CAP ASSY (UP TO SERIAL 8JW20-000397)
-
88JP-RAF06-00-00 ...O-RING, 4...O-RING, 4
-
98JP-RA283-00-00 SCREW, TAPPING M6X2.0X24SCREW, TAPPING M6X2.0X24
-
108JP-RAF13-00-00 O-RING, 0.984O-RING, 0.984
-
118JP-F1766-00-00 PIPE, OILPIPE, OIL
-
128JP-RA282-00-00 SCREW, TAPPING M6X2.0X12SCREW, TAPPING M6X2.0X12
-
138JP-RAB26-00-00 CLAMP, 24CLAMP, 24
-
148JP-RA905-00-00 HOSE, 1HOSE, 1
-
158JP-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
168JP-RAB17-00-00 CLAMP, 15CLAMP, 15
-
178JP-E7021-00-00 PIPE, OIL 1PIPE, OIL 1
-
188JP-RAB11-00-00 CLAMP, 9CLAMP, 9
-
198JP-RA352-00-00 .NUT, CLIP 10.NUT, CLIP 10
-
208JP-F1338-00-00 CLAMPCLAMP
-
218JP-RA290-00-00 SCREW, 10-12X3/4SCREW, 10-12X3/4
-
228JP-E2578-00-00 HOSE 3HOSE 3
-
238JP-E2579-00-00 HOSE 4 (5 FEET)HOSE 4 (5 FEET)
-
248JP-F1816-00-00 PIPE 1PIPE 1
-
258JP-F1817-00-00 PIPE 2PIPE 2
-
268JP-RAF07-00-00 O-RING, 5O-RING, 5
-
278JP-F4167-00-00 STRAINER (UP TO SERIAL 8JW20-000397)STRAINER (UP TO SERIAL 8JW20-000397)
-
278JP-F4167-10-00 STRAINER (AFTER SERIAL 8JW20-000398)STRAINER (AFTER SERIAL 8JW20-000398)
-
288JP-RAF09-00-00 O-RING, 3/4O-RING, 3/4
-
298JP-RAF11-00-00 O-RING, 5/8O-RING, 5/8
-
308JP-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
318JP-RAB16-00-00 CLAMP, 14CLAMP, 14
-
328JP-RA906-00-00 HOSE, 2HOSE, 2
-
338JP-RAB18-00-00 CLAMP, 16CLAMP, 16
-
348JP-E3418-00-00 PIPE, OIL 2PIPE, OIL 2
-
358JP-E1164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
368JP-E5112-00-00 PIPE, OILPIPE, OIL
-
378JP-E3465-00-00 HOSE, OIL 2HOSE, OIL 2
-
388JP-E7022-00-00 PIPE, OIL 2PIPE, OIL 2
-
398JP-RA356-00-00 NUT, FLANGE 1/4NUT, FLANGE 1/4
-
408JP-RA250-00-00 SCREW, M5X1.0X10SCREW, M5X1.0X10
-
418JP-E2465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
428JP-F3892-00-00 SHIELD, HEATSHIELD, HEAT
-
438JP-F1719-00-00 GROMMETGROMMET
