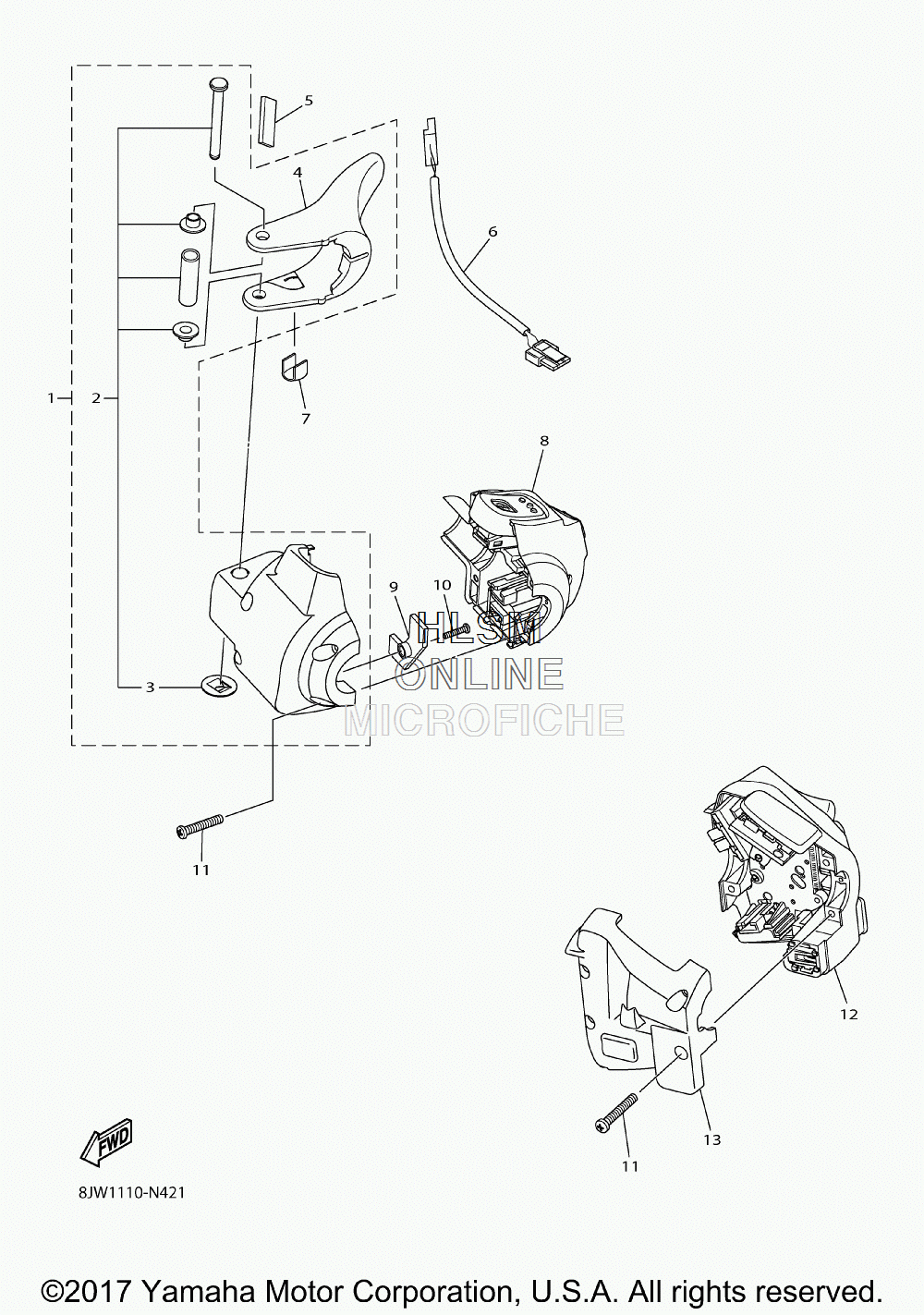

HANDLEBAR - SWITCHES AND LEVERS для Yamaha SRVIPER R TX SE - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-H2720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
28JP-H2620-00-00 ...LEVER HOLDER ASSY (RIGHT)...LEVER HOLDER ASSY (RIGHT)
-
38JP-RA346-00-00 ......NUT, 0.125......NUT, 0.125
-
48JP-G2138-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
58JP-H233W-00-00 INSU.INSU.
-
68JP-H2970-00-00 THUMB WARMER ASSYTHUMB WARMER ASSY
-
78JP-RAC10-00-00 CLIP, 1CLIP, 1
-
88JP-H2710-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
98JP-RAC11-00-00 CLIP, 2CLIP, 2
-
108JP-RA285-00-00 SCREW, 4-24X0.50SCREW, 4-24X0.50
-
118JP-RA286-00-00 SCREW, 8-18X0.875SCREW, 8-18X0.875
-
128JP-H3972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
138JP-H3973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- • HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- VALVE ASSY
- WATER PUMP ASSY
