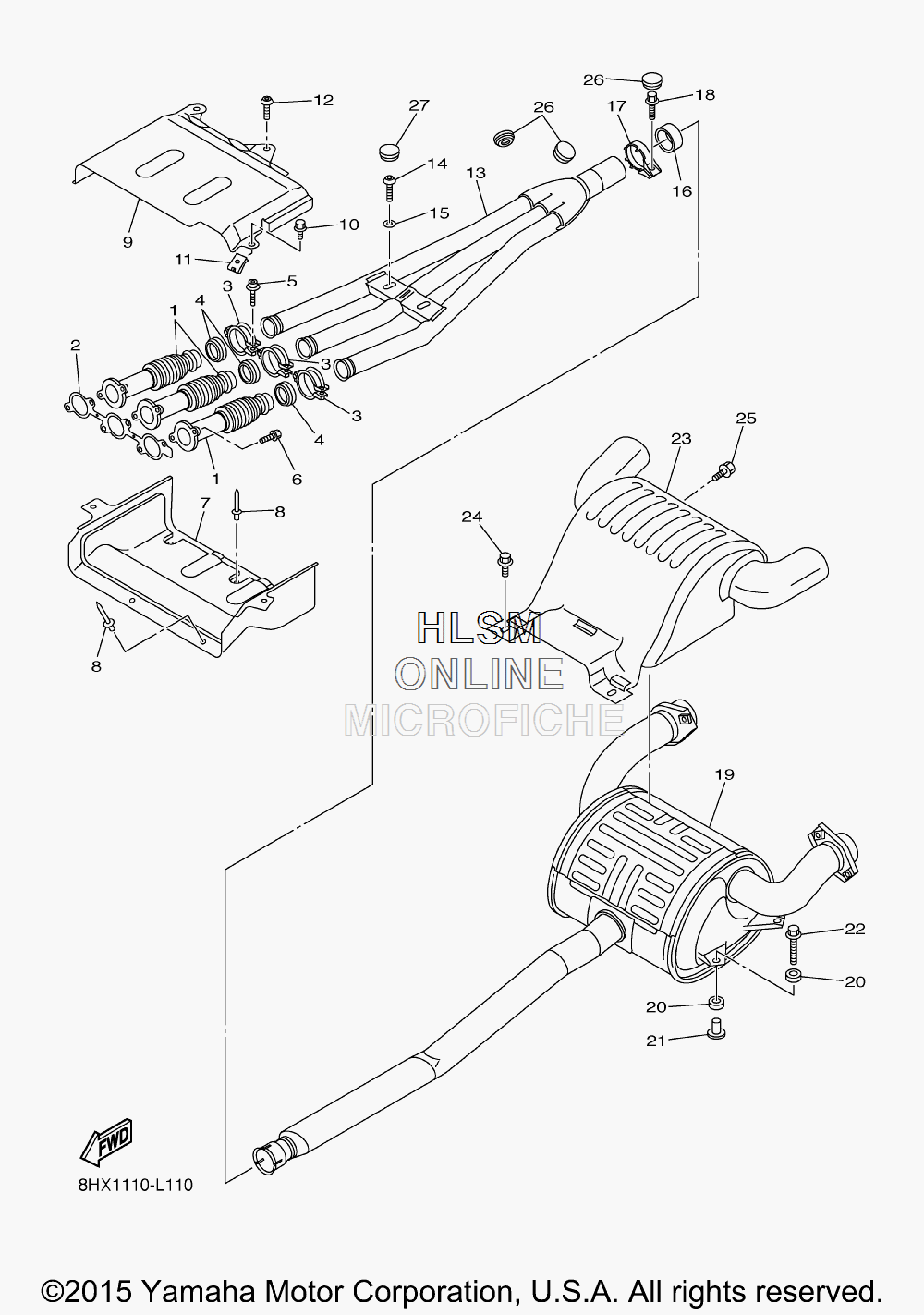

EXHAUST SYSTEM для Yamaha RS VENTURE TF - 2015 года выпуска`
-
№АртикулНазвание
-
18GL-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28GL-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
38FA-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
48FA-14623-10-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590109-06031-00 BOLTBOLT
-
695022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
78ES-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
98ES-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-060A0-00 NUT, SPRINGNUT, SPRING
-
1292012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
138JA-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
1492012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1592990-08200-00 WASHER, PLAINWASHER, PLAIN
-
168FA-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
178FA-14788-00-00 BAND, SILENCERBAND, SILENCER
-
1895812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
198HF-14750-00-00 SILENCER ASSYSILENCER ASSY
-
208FA-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2190387-08071-00 COLLARCOLLAR
-
2290119-08112-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
238HX-14708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
2490119-06179-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2595812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2690338-20004-00 PLUGPLUG
-
2790338-20007-00 PLUGPLUG
