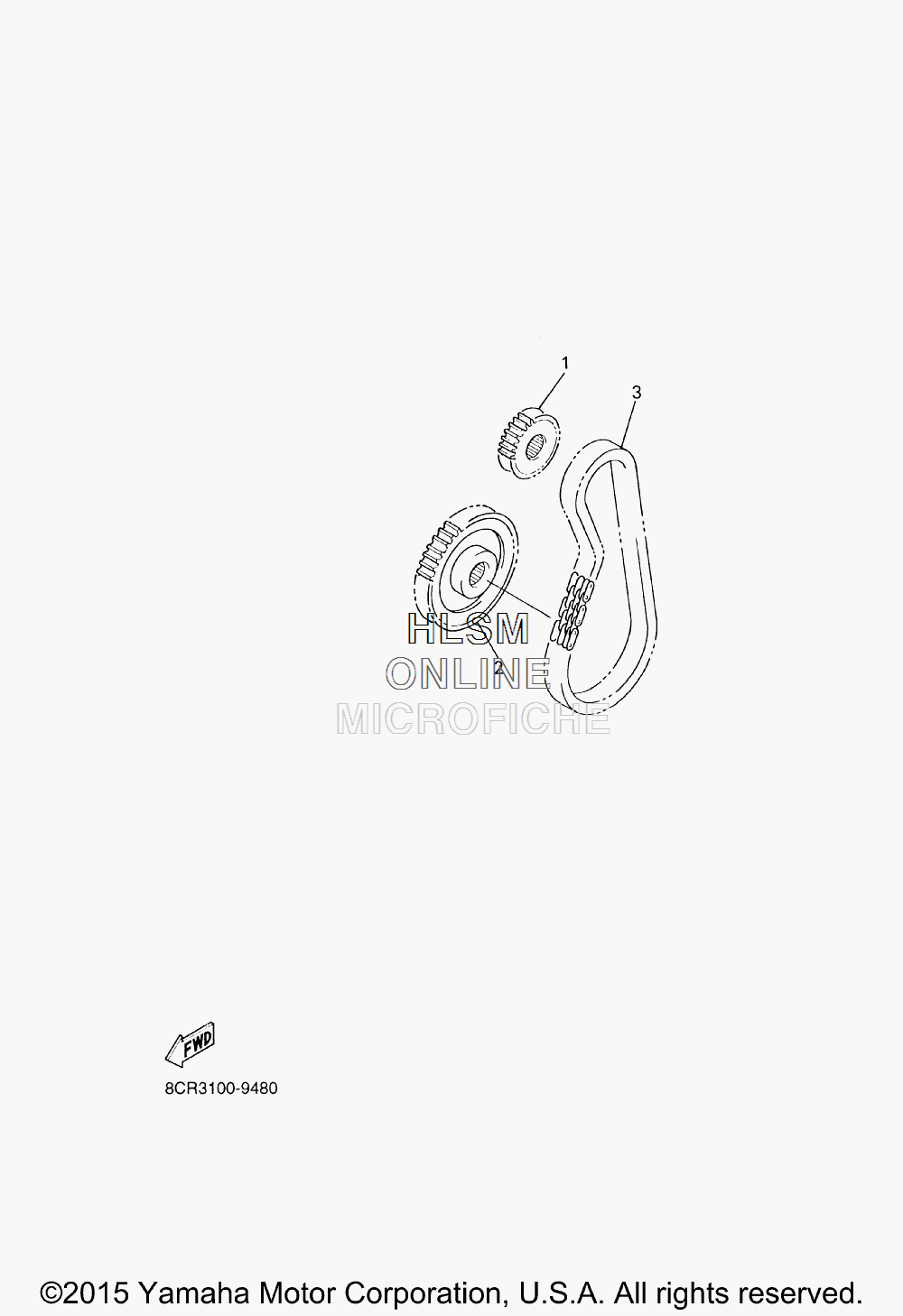

CHAINCASE - SPROCKET AND CHAINS (OPTION) для Yamaha RS VENTURE TF - 2015 года выпуска`
-
№АртикулНазвание
-
18FA-17682-40-00 SPROCKET, CHAIN DRIVE (24T) (OPT)SPROCKET, CHAIN DRIVE (24T) (OPT)
-
18FA-17682-10-00 SPROCKET, CHAIN DRIVE (21T) (OPT)SPROCKET, CHAIN DRIVE (21T) (OPT)
-
18FA-17682-00-00 SPROCKET, CHAIN DRIVE (20T) (OPT)SPROCKET, CHAIN DRIVE (20T) (OPT)
-
18FA-17682-20-00 SPROCKET, CHAIN DRIVE (22T) (OPT)SPROCKET, CHAIN DRIVE (22T) (OPT)
-
18FA-17682-30-00 SPROCKET, CHAIN DRIVE (23T) (OPT)SPROCKET, CHAIN DRIVE (23T) (OPT)
-
18FA-17682-90-00 SPROCKET, CHAIN DRIVE (19T) (OPT)SPROCKET, CHAIN DRIVE (19T) (OPT)
-
18FA-17682-80-00 SPROCKET, CHAIN DRIVE (18T) (OPT)SPROCKET, CHAIN DRIVE (18T) (OPT)
-
28FB-47587-80-00 SPROCKET, CHAIN DRIVEN (38T) (OPT)SPROCKET, CHAIN DRIVEN (38T) (OPT)
-
28FB-47587-90-00 SPROCKET, CHAIN DRIVEN (39T) (OPT)SPROCKET, CHAIN DRIVEN (39T) (OPT)
-
28FB-47587-00-00 SPROCKET, CHAIN DRIVEN (40T) (OPT)SPROCKET, CHAIN DRIVEN (40T) (OPT)
-
394890-09070-00 CHAIN BORG WARN (70L) (OPT)CHAIN BORG WARN (70L) (OPT)
-
394890-09068-00 CHAIN BORG WARN (68L) (OPT)CHAIN BORG WARN (68L) (OPT)
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CARRIER - ALTERNATE
- • CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- PIVOT ARM W/ SHOCK
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING - REAR SHOCKS (OPTION)
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- VALVE ASSY
- WATER PUMP ASSY
