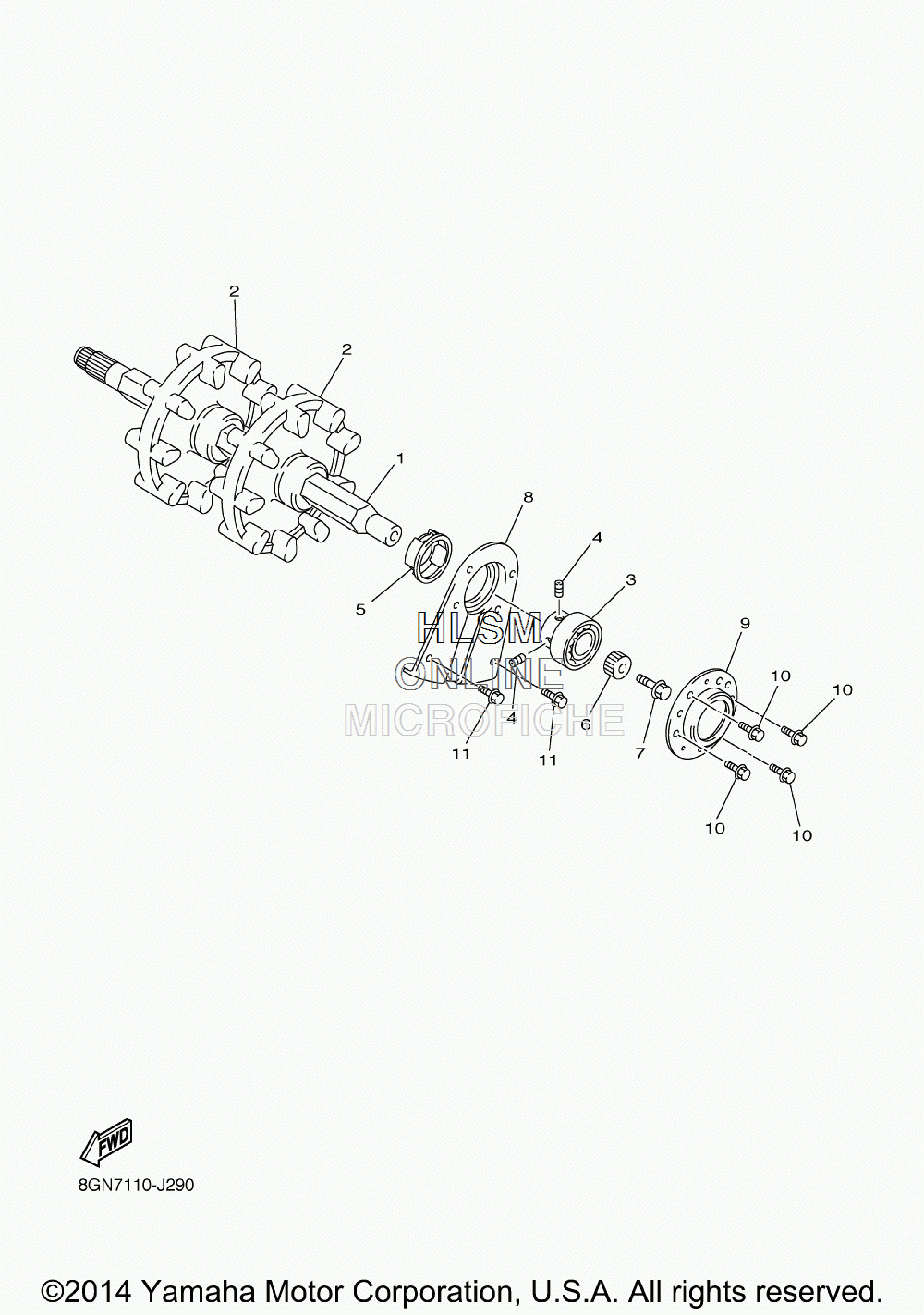

DRIVE TRAIN ASSEMBLY для Yamaha PHAZER RTX - 2015 года выпуска`
-
№АртикулНазвание
-
18GC-47511-20-00 AXLE, FRONTAXLE, FRONT
-
28CM-47531-10-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
393306-20589-00 BEARINGBEARING
-
490113-06064-00 BOLT, SETBOLT, SET
-
58FN-47377-00-00 CAPCAP
-
68EK-47715-00-00 JOINTJOINT
-
795822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
88GC-21920-00-00 HOUSING, REINF SUB-ASSY (LEFT HAND)HOUSING, REINF SUB-ASSY (LEFT HAND)
-
98EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
1090105-08168-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-08450-00 BOLT, FLANGEBOLT, FLANGE
