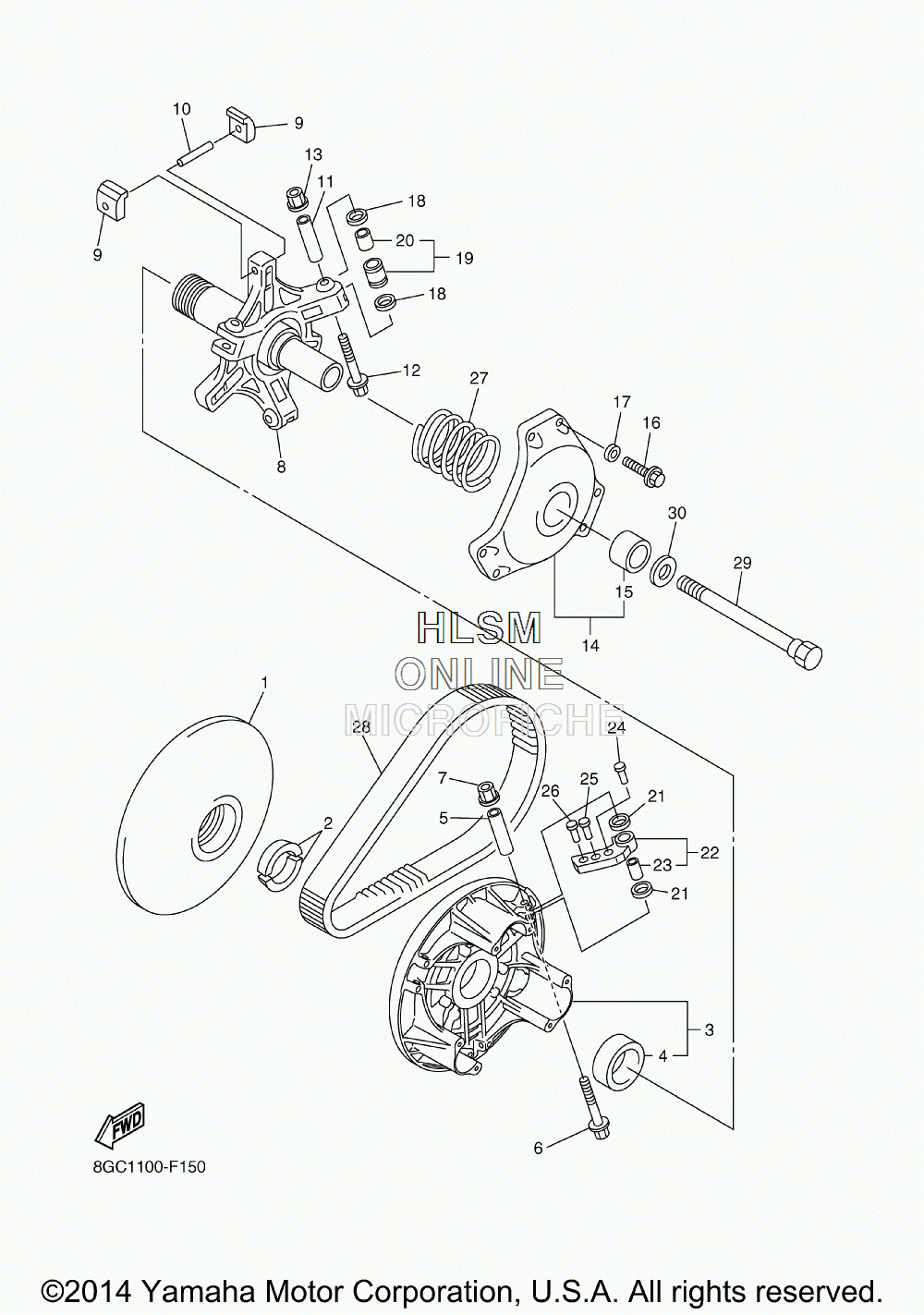

CLUTCH - DRIVE для Yamaha PHAZER RTX - 2015 года выпуска`
-
№АртикулНазвание
-
18FA-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 STOPPERSTOPPER
-
38BV-17620-03-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-0514T-00 COLLARCOLLAR
-
690105-05644-00 BOLT, FLANGEBOLT, FLANGE
-
795602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
88ES-17640-02-00 SPIDER COMPLETESPIDER COMPLETE
-
98BW-17653-00-00 SLIDERSLIDER
-
1091609-50032-00 PIN, SPRINGPIN, SPRING
-
1190387-0514U-00 COLLARCOLLAR
-
1290105-05644-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148BV-17630-11-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1590380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
1697017-06030-00 BOLTBOLT
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1890202-09227-00 WASHER, PLATEWASHER, PLATE
-
198FG-17624-20-00 ROLLER, COMPROLLER, COMP
-
2090386-09001-00 ...BUSH...BUSH
-
2190202-08204-00 WASHER, PLATEWASHER, PLATE
-
228GC-17605-00-00 WEIGHT COMPWEIGHT COMP
-
2390386-08002-00 ...BUSH...BUSH
-
2490261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (INNER)RIVET, COUNTERSUNK (ST10.3MM) (INNER)
-
2590261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (CENTER)RIVET, COUNTERSUNK (ST10.3MM) (CENTER)
-
2690261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OUTER)RIVET, COUNTERSUNK (ST13.3MM) (OUTER)
-
2790501-606G9-00 SPRING, COMPRESSION (P-BL-P)SPRING, COMPRESSION (P-BL-P)
-
288GK-17641-10-00 V-BELTV-BELT
-
298V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
3092907-16100-00 WASHERWASHER
