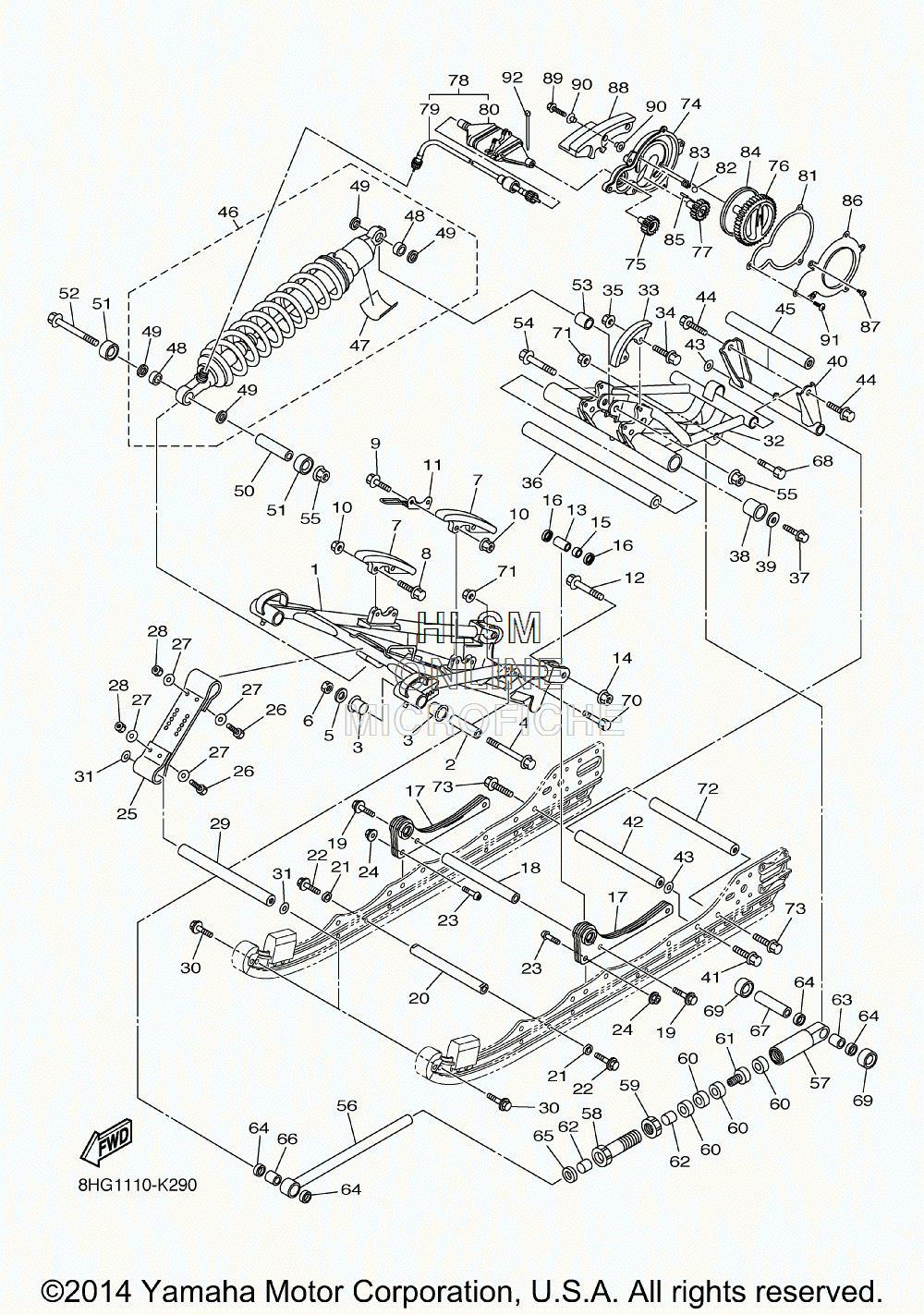

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha APEX - 2015 года выпуска`
-
№АртикулНазвание
-
18JA-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-10038-00 WASHER, PLATEWASHER, PLATE
-
690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06092-00 BOLT, FLANGEBOLT, FLANGE
-
1095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FR-47445-00-00 PROTECTORPROTECTOR
-
1290105-10387-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-10095-00 COLLARCOLLAR
-
1490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1593315-31750-00 BEARINGBEARING
-
1693109-17071-00 OIL SEALOIL SEAL
-
178JA-47415-00-00 BRACKET 1BRACKET 1
-
188JA-47486-00-00 SHAFT 4SHAFT 4
-
1990105-10385-00 BOLT, FLANGEBOLT, FLANGE
-
208GL-47486-00-00 SHAFT 4SHAFT 4
-
218GL-47341-00-00 SPACERSPACER
-
2290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2390111-10045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
258GM-47495-00-00 STOPPER 1STOPPER 1
-
2697002-06025-00 BOLTBOLT
-
2790201-06081-00 WASHER, PLATEWASHER, PLATE
-
2895702-06300-00 NUT, NYLONNUT, NYLON
-
298FU-47485-00-00 SHAFT 3SHAFT 3
-
3090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-10126-00 WASHER, PLATEWASHER, PLATE
-
328JB-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
338FT-47441-10-00 SLIDER 1SLIDER 1
-
3490105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
368FT-47475-00-00 SHAFT 2SHAFT 2
-
3790109-10030-00 BOLTBOLT
-
3890381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3990201-10039-00 WASHER, PLATEWASHER, PLATE
-
408FU-47417-11-00 BRACKET 3BRACKET 3
-
4190105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
428FU-47485-00-00 SHAFT 3SHAFT 3
-
4390201-10136-00 WASHER, PLATEWASHER, PLATE
-
4490105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
458FU-47486-00-00 SHAFT 4SHAFT 4
-
468HG-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
474AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
4893315-31758-00 ...BEARING...BEARING
-
4993109-17071-00 ...OIL SEAL...OIL SEAL
-
5090387-10034-00 COLLARCOLLAR
-
518FU-47341-00-00 SPACERSPACER
-
5295812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
5390387-1012A-00 COLLARCOLLAR
-
5495812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
568JA-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
578JA-4745C-00-00 ROD, CONTROL 3ROD, CONTROL 3
-
588JA-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
598JA-47368-00-00 NUTNUT
-
608GM-47384-10-00 WASHERWASHER
-
618FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
6290384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
6393315-31841-00 BEARINGBEARING
-
6493109-18001-00 OIL SEALOIL SEAL
-
65C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
6690387-12051-00 COLLARCOLLAR
-
6790387-12052-00 COLLARCOLLAR
-
6890101-12043-00 BOLTBOLT
-
698JA-47341-00-00 SPACERSPACER
-
7090101-12042-00 BOLTBOLT
-
7190185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
728ES-47485-00-00 SHAFT 3SHAFT 3
-
7390105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
748FU-474A1-00-00 HOUSING, ADJUSTERHOUSING, ADJUSTER
-
758FU-474A2-00-00 GEAR, DRIVEGEAR, DRIVE
-
768FU-474A3-00-00 HANDLE, ADJUSTERHANDLE, ADJUSTER
-
778FU-474A4-00-00 GEAR, STOPPERGEAR, STOPPER
-
788FU-W474A-30-00 ADJUSTER CABLE ASSY.ADJUSTER CABLE ASSY.
-
798FU-474A5-30-00 ...CABLE, ADJUSTER...CABLE, ADJUSTER
-
808FU-47445-01-00 ...PROTECTOR...PROTECTOR
-
818FU-474A6-00-00 GASKET, ADJUSTER HOUSINGGASKET, ADJUSTER HOUSING
-
8293501-04011-00 BALLBALL
-
8390501-06M35-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
848FU-474A7-00-00 SEAL, ADJUSTER HANDLESEAL, ADJUSTER HANDLE
-
8593603-12007-00 PIN, DOWELPIN, DOWEL
-
868FU-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
8798502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
888FU-47441-11-00 SLIDER 1SLIDER 1
-
8990105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
9090387-07717-00 COLLARCOLLAR
-
9190149-06137-00 SCREWSCREW
-
9290464-16061-00 CLAMPCLAMP
