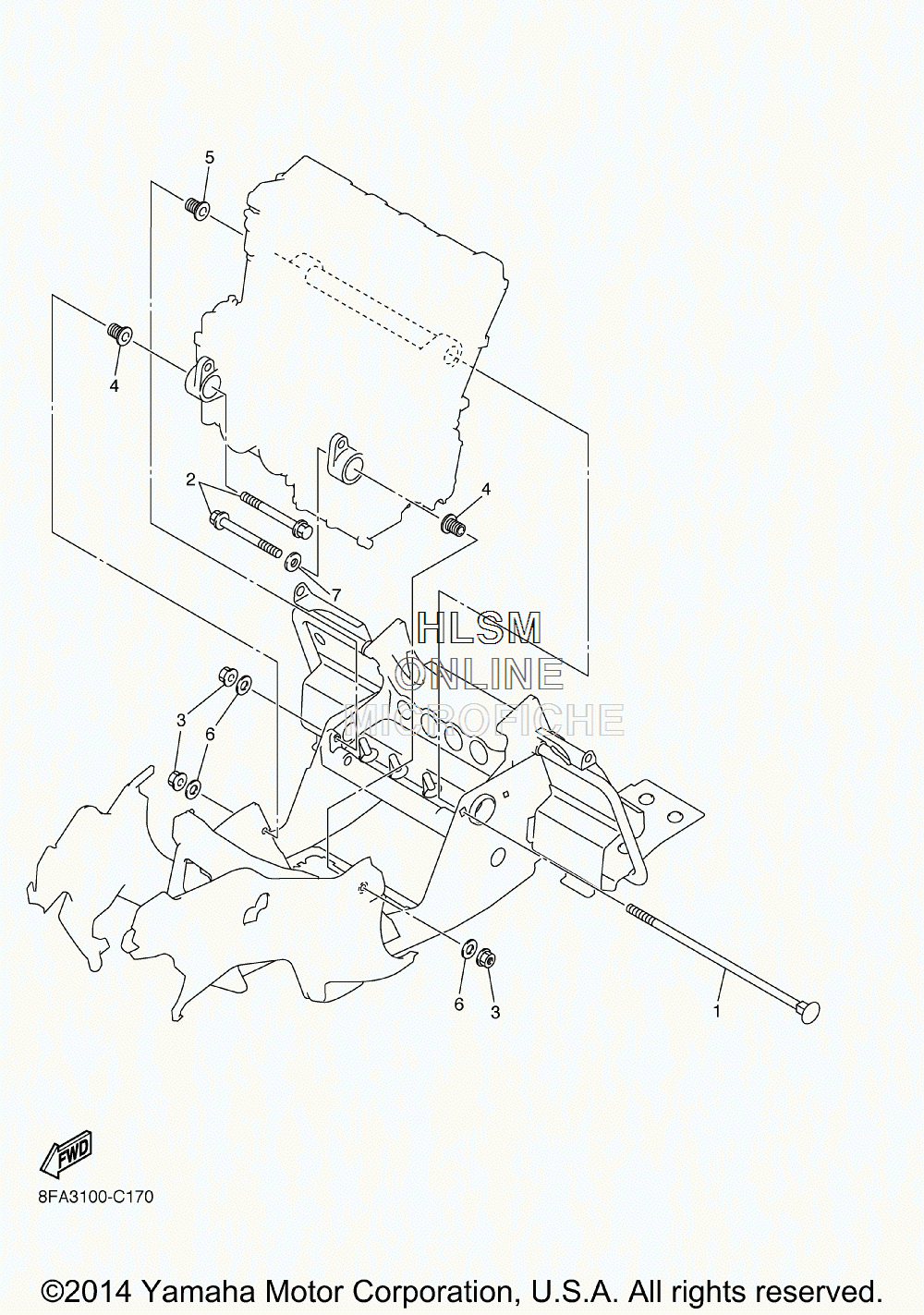

ENGINE MOUNTING для Yamaha APEX - 2015 года выпуска`
-
№АртикулНазвание
-
18FA-21481-02-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
295817-12100-00 BOLT, FLANGEBOLT, FLANGE
-
390179-12004-00 NUTNUT
-
48FG-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
58FG-2149C-00-00 BOLTBOLT
-
690201-120T5-00 WASHER, PLATEWASHER, PLATE
-
790201-125A3-00 WASHER, PLATEWASHER, PLATE
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- • ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING - REAR SHOCKS (OPTION)
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- VALVE ASSY
- WATER PUMP ASSY
