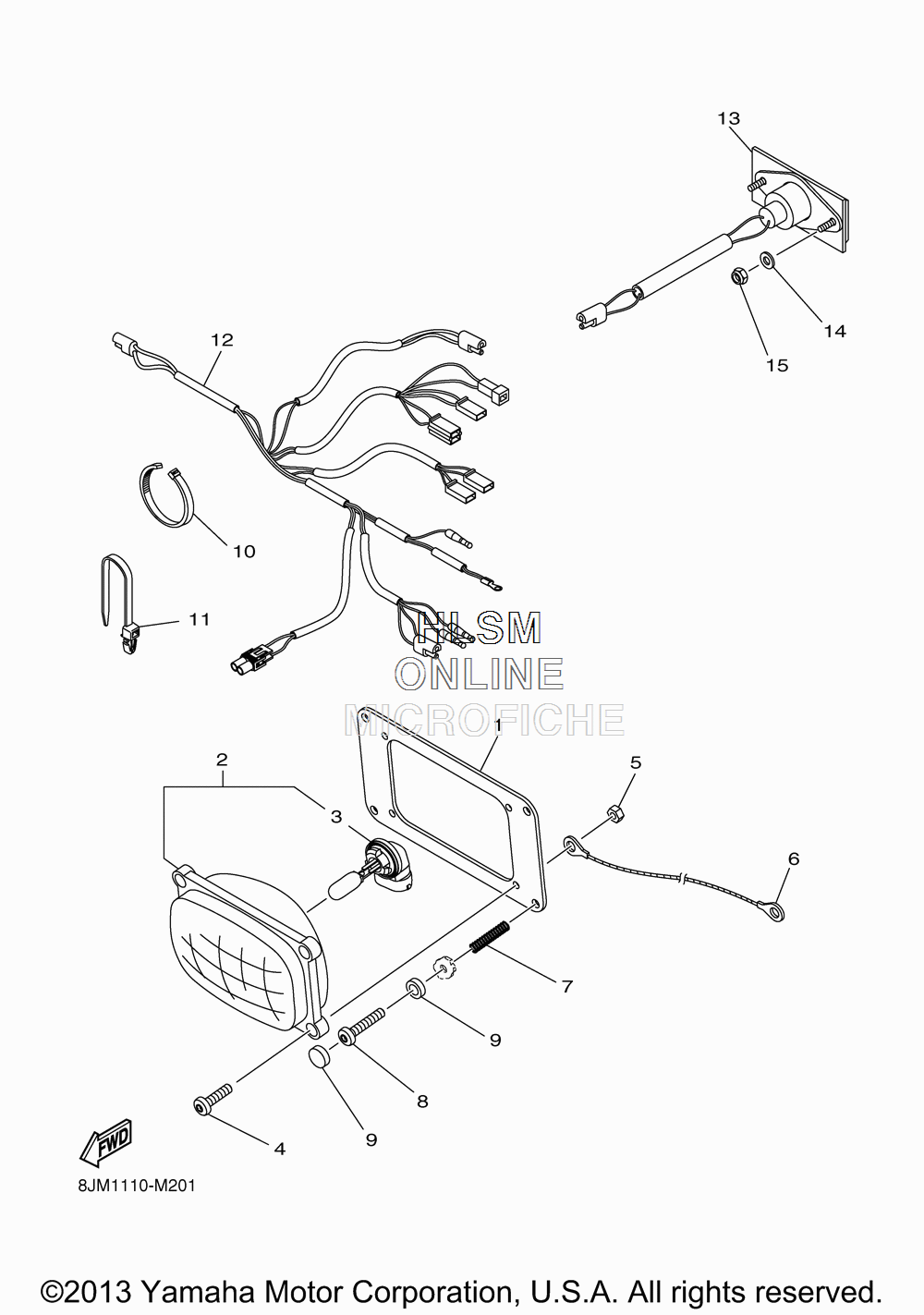

HEAD & TAIL LIGHT для Yamaha SRX 120 - 2014 года выпуска`
-
№АртикулНазвание
-
18JM-H4118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
28JM-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
38JM-H4314-00-00 ...BULB, HEADLIGHT (12V-37.5W)...BULB, HEADLIGHT (12V-37.5W)
-
48JM-RA209-00-00 SCREW, 10-24X1/2SCREW, 10-24X1/2
-
58JM-RA319-00-00 NUT, SELF-LOCKING. 10-24NUT, SELF-LOCKING. 10-24
-
68JM-K7118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
78JM-RAD07-00-00 SPRING, COMPRESSION 3SPRING, COMPRESSION 3
-
88JM-RA210-00-00 SCREW,10-24X2SCREW,10-24X2
-
98JM-RA603-00-00 PLUG, 4PLUG, 4
-
108JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
118JM-RAB02-00-00 CLAMP, 3CLAMP, 3
-
128JM-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
138JM-H4710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
148JM-H4714-00-00 ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
158JM-RA412-00-00 WASHER, PLAIN 10WASHER, PLAIN 10
-
168JM-RA318-00-00 NUT, HEXAGON 10-32NUT, HEXAGON 10-32
