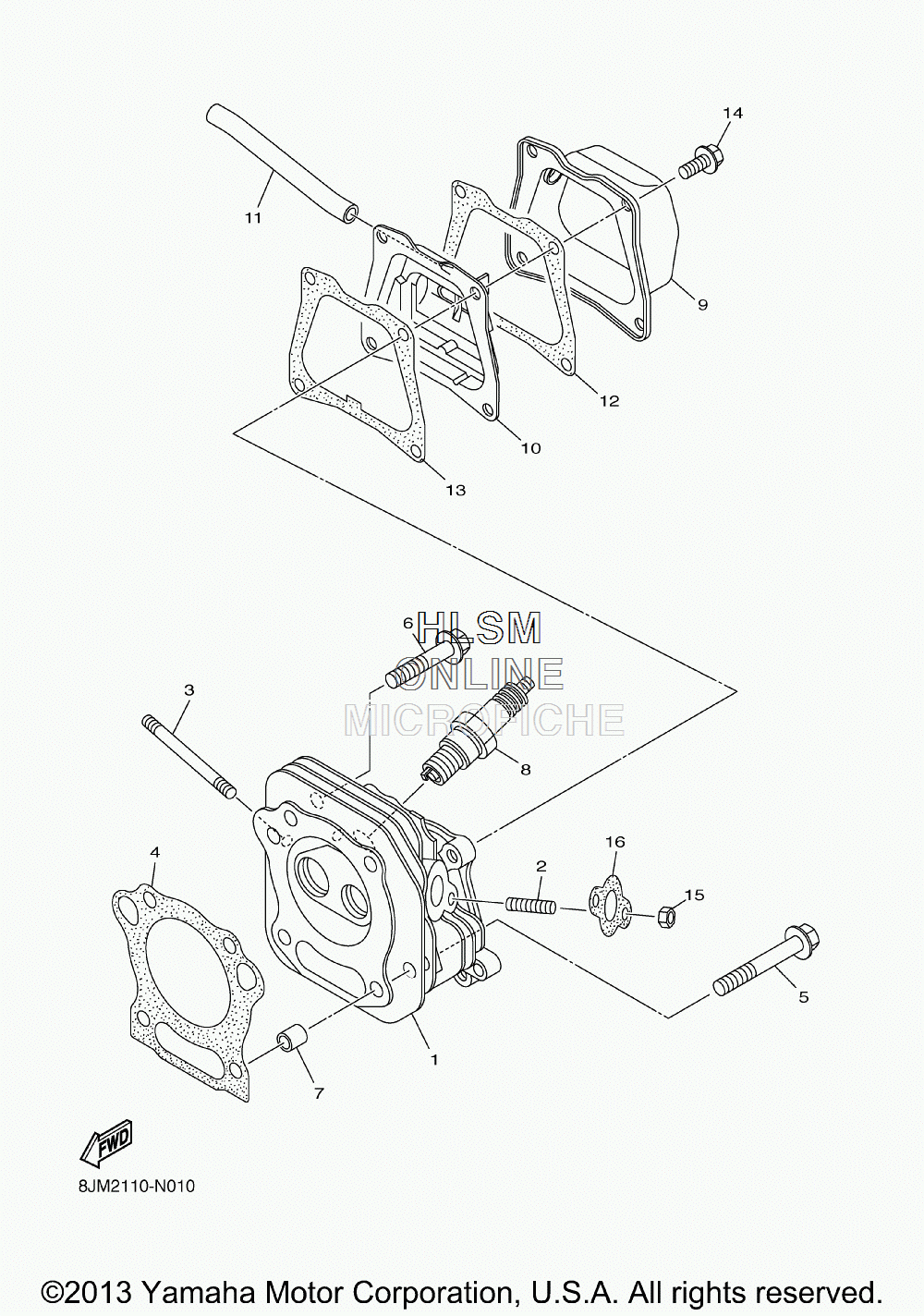

CYLINDER W/ HEAD ASSY для Yamaha SRX 120 - 2014 года выпуска`
-
№АртикулНазвание
-
17CL-E1111-01-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
295602-06615-00 BOLT, STUDBOLT, STUD
-
395622-06690-00 BOLT, STUDBOLT, STUD
-
47CL-E1181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
595822-08065-00 BOLT, FLANGEBOLT, FLANGE
-
695822-08045-00 BOLT, FLANGEBOLT, FLANGE
-
799530-10114-00 PIN, DOWELPIN, DOWEL
-
894702-00331-00 PLUG, SPARK (NGK BPR4ES)PLUG, SPARK (NGK BPR4ES)
-
97CN-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
107CN-E1160-00-00 BREATHER ASSYBREATHER ASSY
-
1190445-13800-00 HOSEHOSE
-
127CN-E1169-01-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
137CN-E1193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1595302-06600-00 NUTNUT
-
167CN-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
