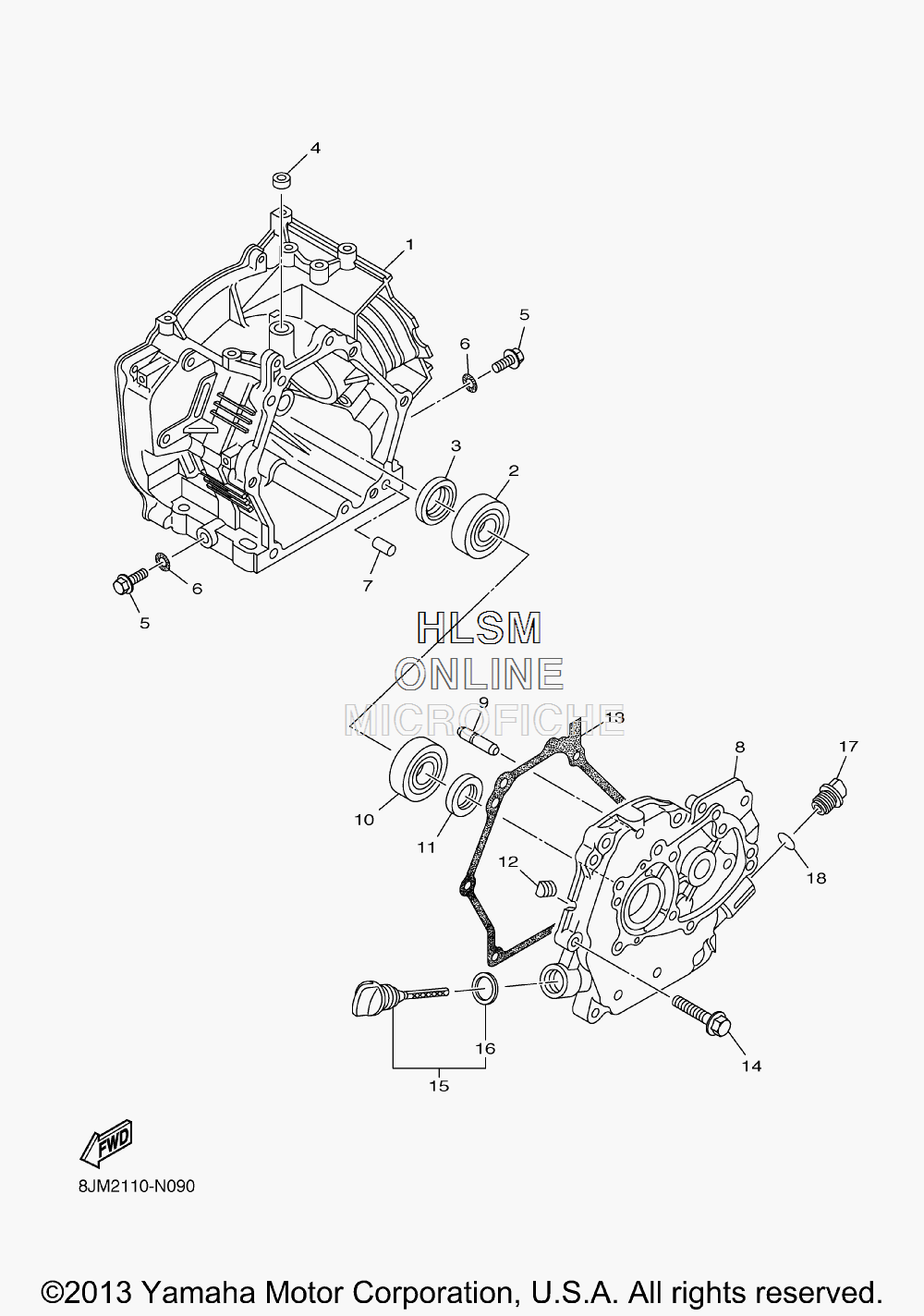

CRANKCASE ASSY для Yamaha SRX 120 - 2014 года выпуска`
-
№АртикулНазвание
-
17CL-E5111-20-00 CRANKCASE 1CRANKCASE 1
-
293306-205XE-00 BEARINGBEARING
-
393102-25806-00 OIL SEALOIL SEAL
-
493104-06800-00 OIL SEALOIL SEAL
-
595022-10016-00 BOLT, FLANGEBOLT, FLANGE
-
690430-10801-00 GASKETGASKET
-
799530-08016-00 PIN, DOWELPIN, DOWEL
-
87CN-E5411-50-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
97CN-E1971-00-00 SHAFT, FLYWEIGHTSHAFT, FLYWEIGHT
-
1093306-205XE-00 BEARINGBEARING
-
1193102-25805-00 OIL SEALOIL SEAL
-
1290338-06800-00 PLUGPLUG
-
137CN-E5451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1495822-08035-00 BOLT, FLANGEBOLT, FLANGE
-
157BX-E536A-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1690430-17801-00 ...GASKET...GASKET
-
177CN-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1893210-13801-00 O-RINGO-RING
