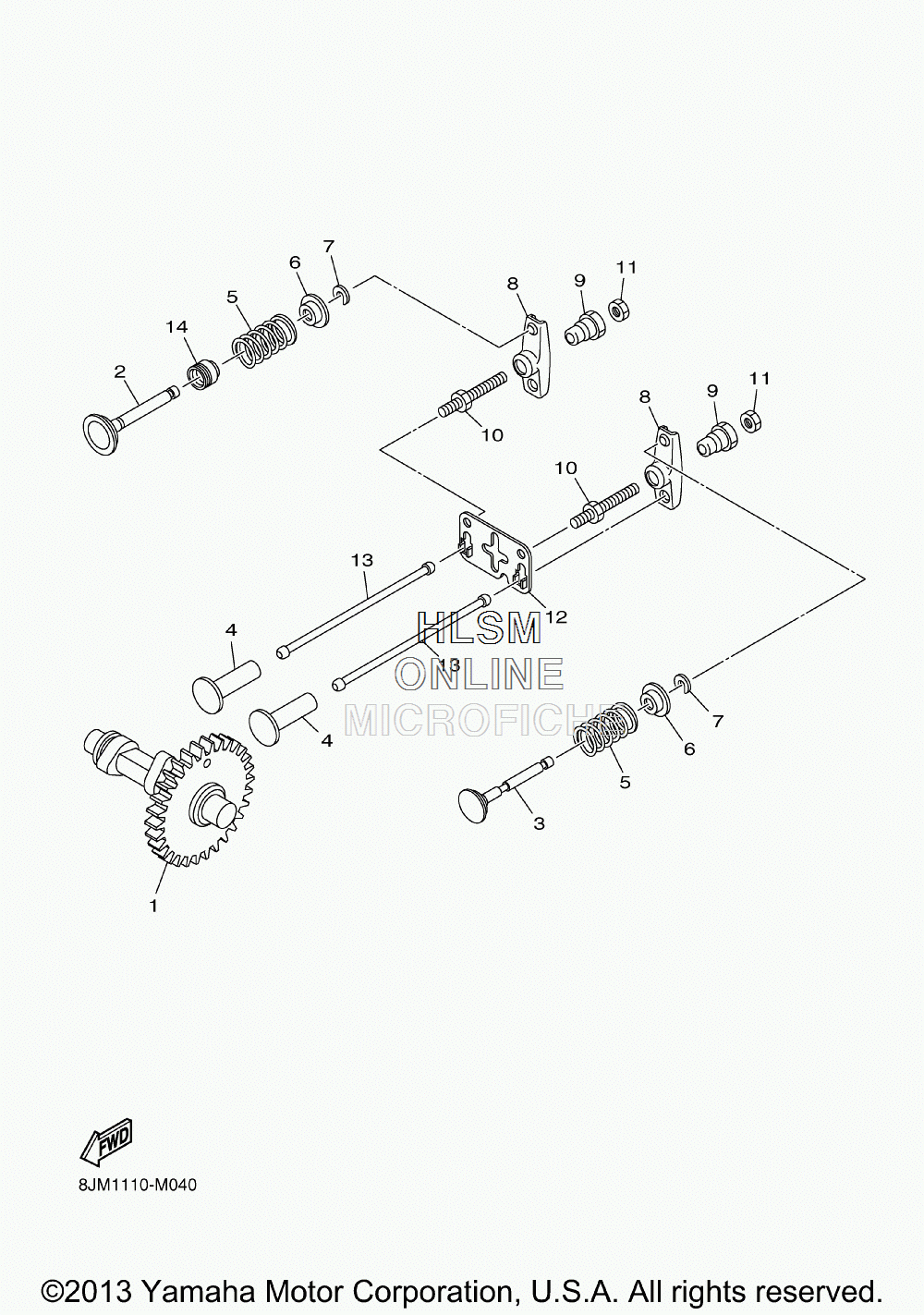

CAMSHAFT W/ VALVE для Yamaha SRX 120 - 2014 года выпуска`
-
№АртикулНазвание
-
17CN-E2170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
27CL-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
37CL-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
47CN-E2153-00-00 LIFTER, VALVELIFTER, VALVE
-
590501-20800-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
67CN-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
77CN-E2118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
87CN-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
97CN-E2165-00-00 PIVOT, ROCKER ARMPIVOT, ROCKER ARM
-
107CN-E2157-01-00 BOLTBOLT
-
117CN-E2158-01-00 NUT, LOCKNUT, LOCK
-
127CL-E2155-01-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
137CN-E2154-00-00 ROD, VALVE PUSHROD, VALVE PUSH
-
147DH-E2119-01-00 SEAL, VALVE STEMSEAL, VALVE STEM
