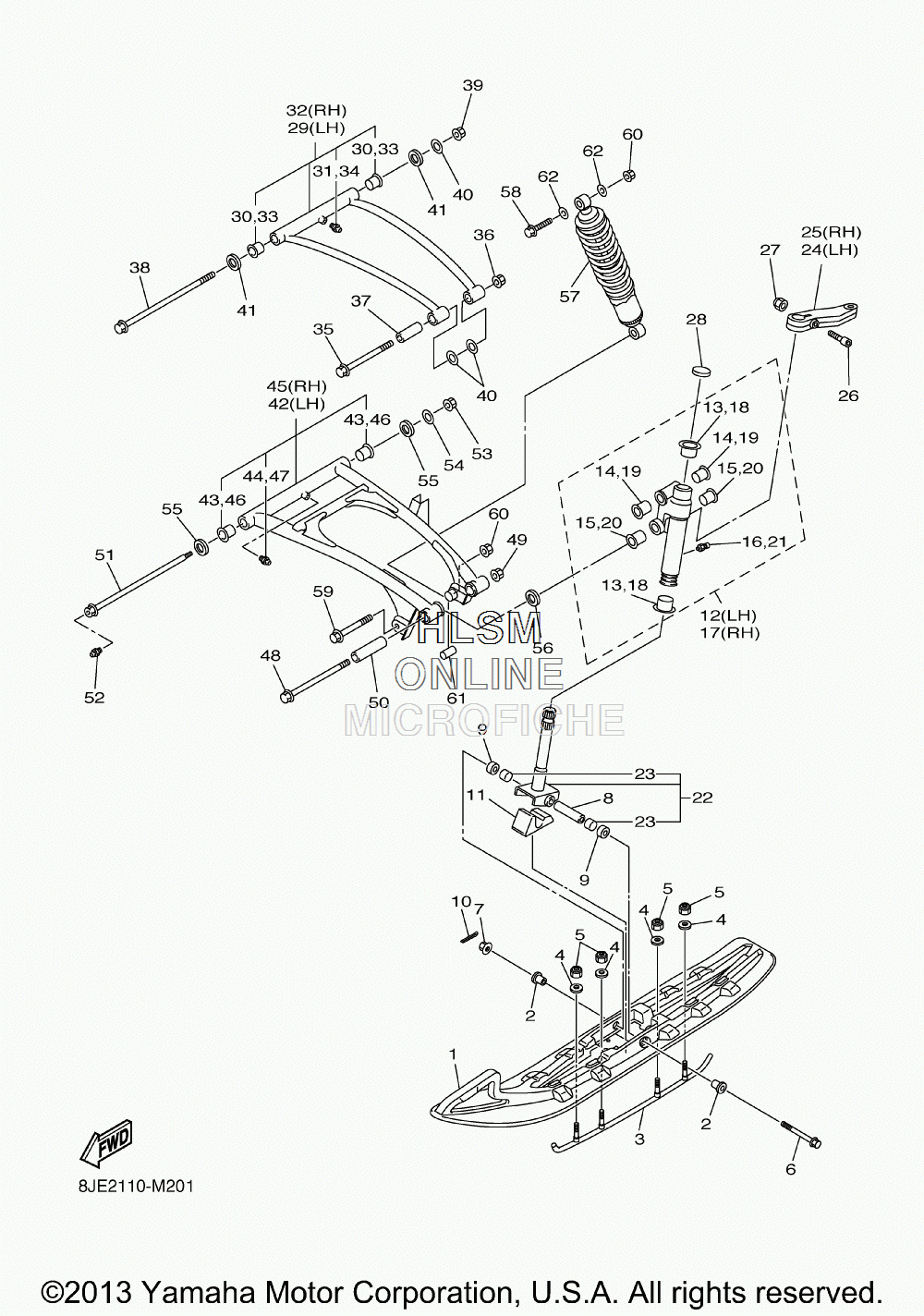

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VIKING PRO - 2014 года выпуска`
-
№АртикулНазвание
-
18JE-F3711-00-00 SKI 1SKI 1
-
28HR-F3754-00-00 COLLAR, 1COLLAR, 1
-
38JD-F3731-00-00 RUNNER 1RUNNER 1
-
48HR-F3738-00-00 WASHER 2WASHER 2
-
58HR-F3778-00-00 NUTNUT
-
690105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
890387-1012H-00 COLLARCOLLAR
-
990387-10029-00 COLLARCOLLAR
-
1091401-20020-00 PIN, COTTERPIN, COTTER
-
118ES-23743-00-00 STOPPER 1STOPPER 1
-
128ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1390381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1490381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1590381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
1693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
178ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1890381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
228ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2390384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
248FN-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
258FN-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2690110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2795602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
283YK-22472-40-00 CAP, CASECAP, CASE
-
298GS-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
328GS-23550-10-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
3390381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3590105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
3790387-10099-00 COLLARCOLLAR
-
3890109-10056-00 BOLTBOLT
-
3995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
4090201-10052-00 WASHER, PLATEWASHER, PLATE
-
4190209-15N50-00 WASHERWASHER
-
428GS-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4390381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
458GS-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4690381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4890105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
4995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5090387-12054-00 COLLARCOLLAR
-
5190401-10045-00 BOLT, UNIONBOLT, UNION
-
5293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5395602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
5490201-10052-00 WASHER, PLATEWASHER, PLATE
-
5590209-15N50-00 WASHERWASHER
-
5690201-12032-00 WASHER, PLATEWASHER, PLATE
-
578JE-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
5890105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5990105-10392-00 BOLT WASHER BASEDBOLT WASHER BASED
-
6095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
6190387-10N59-00 COLLARCOLLAR
-
6290201-106F2-00 WASHER, PLATEWASHER, PLATE
