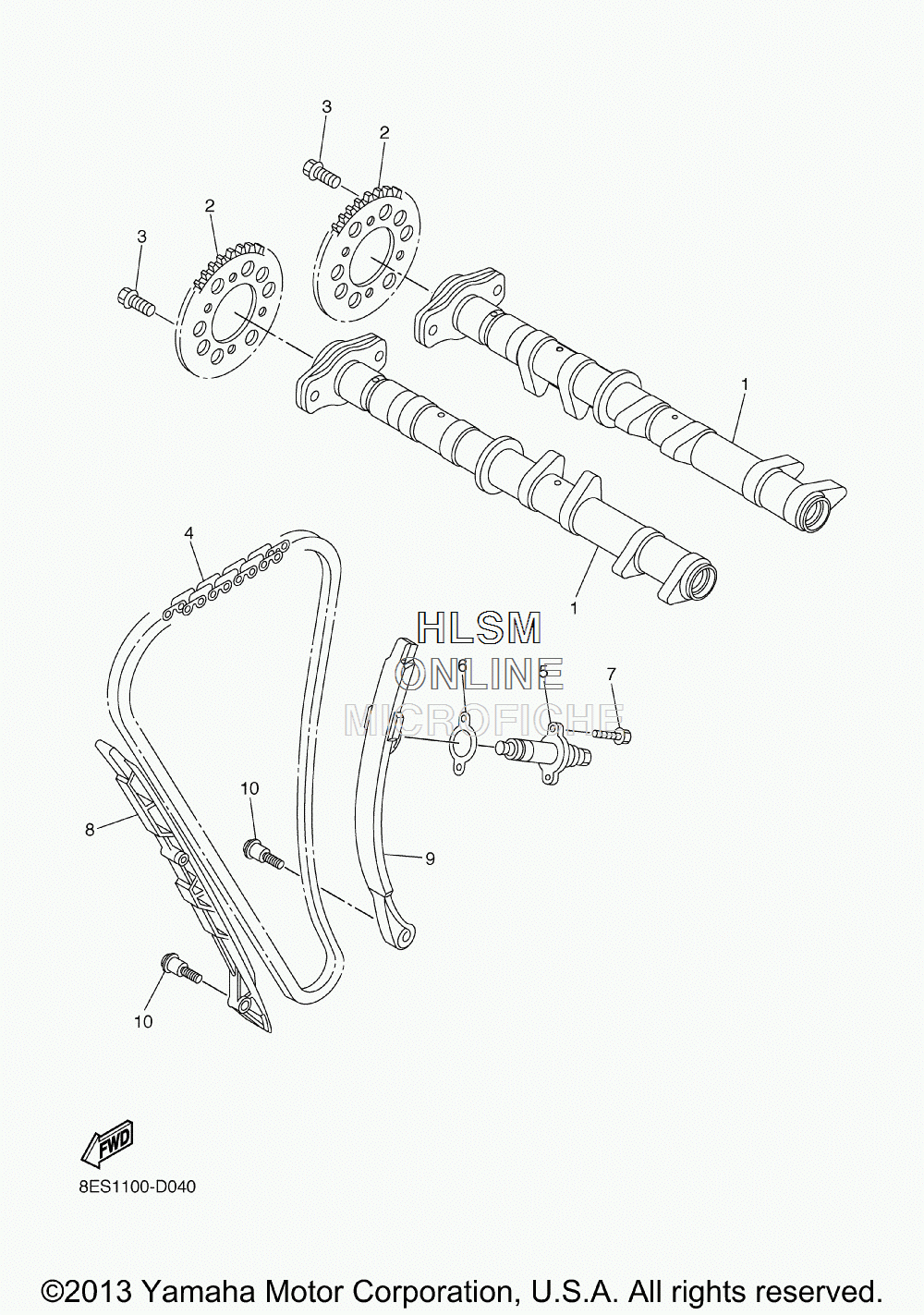

CAMSHAFT W/ CAMSHAFT CHAIN ASSY для Yamaha RS VIKING PRO - 2014 года выпуска`
-
№АртикулНазвание
-
18ES-12170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
28ES-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
494591-59140-00 CHAINCHAIN
-
58ES-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
64FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
795022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
98ES-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1090109-06187-00 BOLTBOLT
