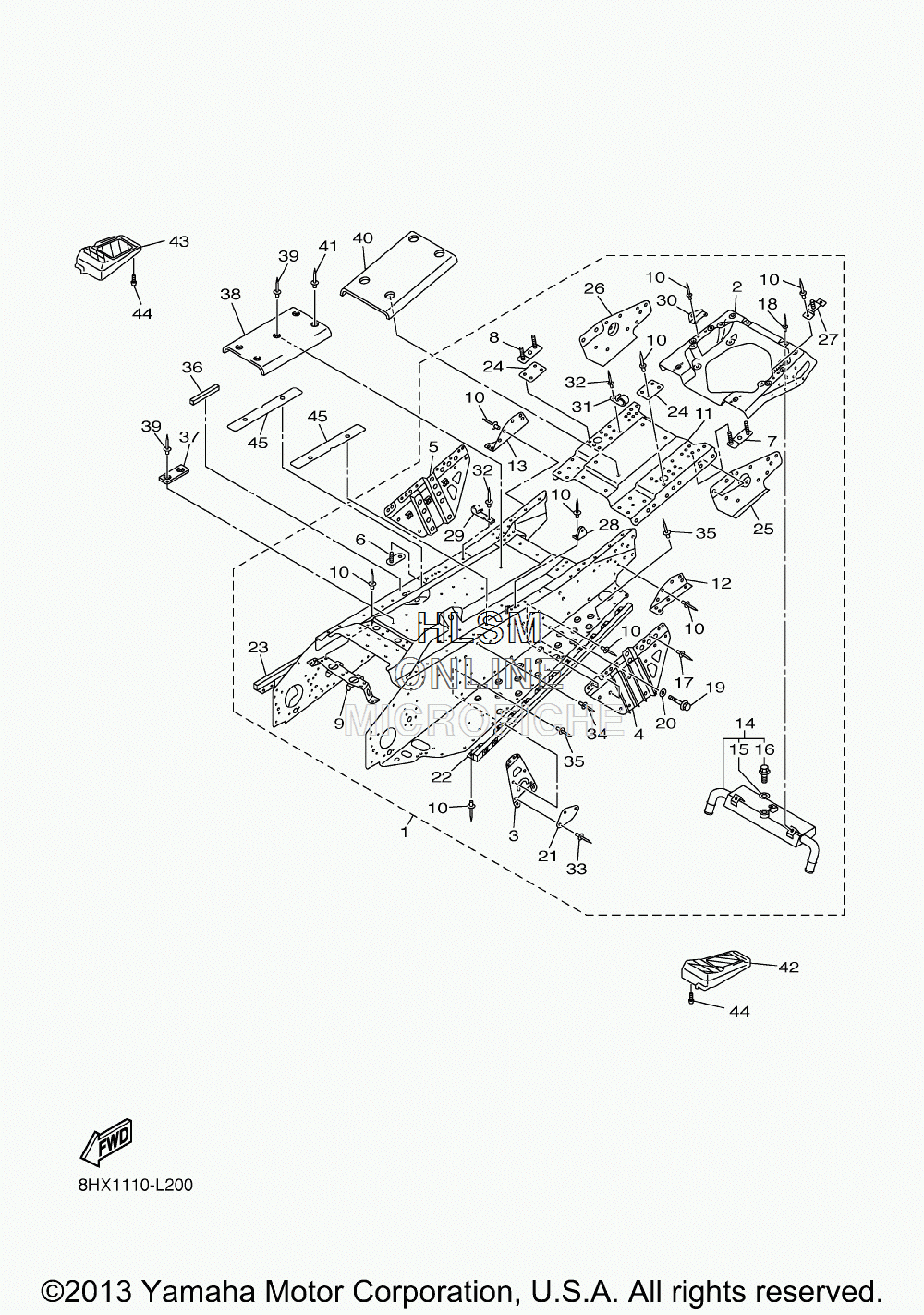

TUNNEL EXTENSION ASSEMBLY для Yamaha RS VENTURE GT - 2014 года выпуска`

№

Артикул

Название
1

8HF-21950-01-00 REAR FRAME COMP.

REAR FRAME COMP.

0 ₽
2

8FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1

...REINEFORCEMENT, FRAME REAR 1

49 450 ₽
3

8HF-21943-00-00 ...BRACKET, MAIN TRACK 1

...BRACKET, MAIN TRACK 1

2 200 ₽
4

8HF-21944-00-00 ......BRACKET, REAR TRACK SUSPENS

......BRACKET, REAR TRACK SUSPENS

14 170 ₽
5

8HF-21954-00-00 ......BRACKET, REAR TRACK SUSPENS

......BRACKET, REAR TRACK SUSPENS

14 170 ₽
6

8CR-2194N-00-00 ...BRACKET, FUEL TANK 1

...BRACKET, FUEL TANK 1

500 ₽
7

8ET-2194X-00-00 ...BRACKET 1

...BRACKET 1

1 030 ₽
8

8ET-2195X-00-00 ...BRACKET 2

...BRACKET 2

1 030 ₽
9

8ES-2194H-00-00 ...PROTECTOR, MUFFLER

...PROTECTOR, MUFFLER

6 450 ₽
10

90267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)

...RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
11

8HF-21916-00-00 ...PANEL, SUB FRAME 5

...PANEL, SUB FRAME 5

16 690 ₽
12

8ET-21963-00-00 ...PATCH 3

...PATCH 3

1 420 ₽
13

8ET-21964-00-00 ...PATCH 4

...PATCH 4

1 420 ₽
14

8ET-1241A-02-00 ...HEAT EXCHANGER ASSY 4

...HEAT EXCHANGER ASSY 4

30 860 ₽
15

90210-06006-00 ......WASHER, SEAL

......WASHER, SEAL

290 ₽
16

95812-06016-00 ......BOLT, FLANGE

......BOLT, FLANGE

180 ₽
17

90267-47197-00 ...RIVET, BLIND (4.7X19.5 SILVER)

...RIVET, BLIND (4.7X19.5 SILVER)

220 ₽
18

90267-48095-00 ...RIVET,BLIND (4.8X12.6 SILVER)

...RIVET,BLIND (4.8X12.6 SILVER)

320 ₽
19

95814-10020-00 ...BOLT, FLANGE

...BOLT, FLANGE

440 ₽
20

90201-10064-00 ...WASHER, PLATE

...WASHER, PLATE

530 ₽
21

8ET-21953-00-00 ...BRACKET, MAIN TRACK 2

...BRACKET, MAIN TRACK 2

1 030 ₽
22

8ET-21926-00-00 ...REINFORCEMENT, FOOTREST 1

...REINFORCEMENT, FOOTREST 1

16 690 ₽
23

8ET-21936-00-00 ...REINFORCEMENT, FOOTREST 2

...REINFORCEMENT, FOOTREST 2

16 690 ₽
24

8HF-2196F-00-00 ...BRACKET 3

...BRACKET 3

1 070 ₽
25

8ET-21989-00-00 ...PATCH 9

...PATCH 9

3 300 ₽
26

8ET-21997-00-00 ...PATCH 10

...PATCH 10

3 300 ₽
27

8ET-2196G-00-00 ...BRACKET 4

...BRACKET 4

1 030 ₽
28

8HF-2194X-00-00 ...BRACKET 1

...BRACKET 1

1 140 ₽
29

90462-08081-00 ...CLAMP

...CLAMP

850 ₽
30

8HF-2196G-00-00 ...BRACKET 4

...BRACKET 4

1 470 ₽
31

90462-06022-00 ...CLAMP

...CLAMP

630 ₽
32

90267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)

...RIVET, BLIND (4.8X12.1 YELLOW)

260 ₽
33

90267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)

...RIVET, BLIND (4.8X17 YELLOW)

280 ₽
34

90267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)

...RIVET, BLIND (4.8X12.1 YELLOW)

260 ₽
35

90267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)

...RIVET, BLIND (4.8X14 YELLOW)

320 ₽
36

8HF-84553-00-00 DAMPER

DAMPER

310 ₽
37

8FA-21998-00-00 SPACER

SPACER

530 ₽
38

8FG-23892-00-00 SHIELD, HEAT

SHIELD, HEAT

5 350 ₽
39

90267-48059-00 RIVET, BLIND (4.8X12.3)

RIVET, BLIND (4.8X12.3)

310 ₽
40

8ET-23892-00-00 SHIELD, HEAT

SHIELD, HEAT

5 980 ₽
41

90267-47004-00 RIVET, BLIND (4.7X13.1 YELLOW)

RIVET, BLIND (4.7X13.1 YELLOW)

290 ₽
42

8DM-27431-02-00 FOOTREST, REAR 1

FOOTREST, REAR 1

4 400 ₽
43

8DM-27441-02-00 FOOTREST, REAR 2

FOOTREST, REAR 2

4 400 ₽
44

97702-50020-00 SCREW, TAPPING

SCREW, TAPPING

150 ₽
45

8HG-2214F-00-00 DAMPER 1

DAMPER 1

1 330 ₽
